CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper

CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper
CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper

Large Image :  CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: LM4S-CNC-120*2000*3000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 23500 USD
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20 Sets / Month
Contact Now

CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper

Description
PcMersuppt/: 380V/50Hz Air Consumption Pressure: 0.6~0.8MPa
Rating Oil Pressure: 15MPa Power: 7.5kw
Highlight:

CNC Four Head Corner Crimping Machine

,

Corner Crimping Machine 50Hz

,

50Hz Aluminium Window Corner Crimper



  PRODUCT DESCRIPTION FOR fOUR hEAD cnc cRIMPING MACHINE



    for combining aluminum window and door corner automatic

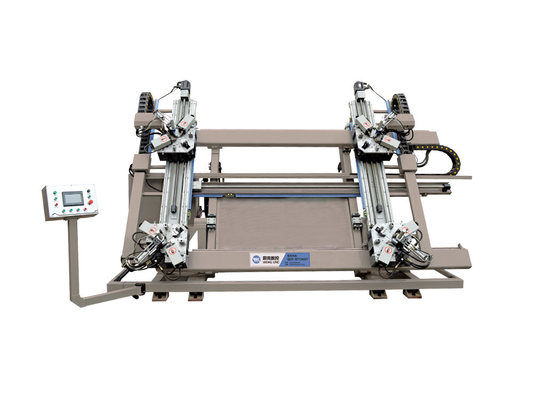

CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper 0

1. Main Feature:



● Used for corner punching and fascinating combination of Al window and door.Four corners connecting at just the once is available, that greatly inflated the producction efficiency.

● Adopt CNC system, can perceive automatic and proper locating, so will manufacture accuracy windows.

● Wide profile method vary because of convenient corner combining cylinder setting.

● applicable for diverse kinds, high-quality and high volume windows production.



CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper 1

2. CNC Corner Crimping Machine Parameter:



Power supply

 Power Rating oil pressure

Air consumption pressure

Min frame dimension

 Max frame dimension

Dimension
380V/50HZ 7.5kW l5MPa 0.6~0.8MPa 450x450mm 1800x3000mm 5000x2200x2800mm



3. Detailed Photos:

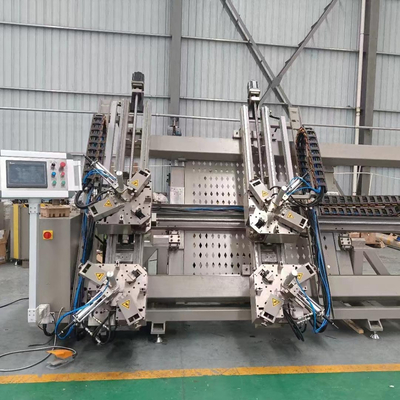

CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper 2



CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper 3



CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper 4



4. Company Introduction



Shandong Weike CNC Machinery Co., Ltd. is a well-known domestic manufacturer specializing in the development production and sales of aluminum doors and windows and curtain wall equipment. It is the most large-scale and industrialized production enterprise in the industry.

The company has large-scale production workshops and strong mechanical processing capabilities, a high-quality scientific research team and a high-tech production team. The company has a strong R&D force, a complete product system, and insists on independent innovation to continuously improve the technology and practicability of the products.

The company has a number of offices in China, forming a one-stop integrated service system integrating product research and development, production, sales and service. The company adheres to the development concept of "striving for progress, pursuing excellence", continuously strengthens the core competitiveness of the industry, strives to achieve leapfrog development, and is committed to building a world-class professional supplier serving the building energy-saving doors and windows industry.

To adapt to standards, to adapt to competition, to adapt to needs, to serve the industry, to serve customers, and to serve the future, the company will welcome you with a new concept.
CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper 5

5. Machine Delivery

CNC Four Head Corner Crimping Machine Aluminium Window Corner Crimper 6


6. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation.

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.



7. Questions:

What is CNC Corner Crimping Machine?

How to use CNC Corner Crimping Machine?

Why called Four Head CNC Corner Combining Machine?

Whats this Corner Combining Machine function during making window and doors?

Answer: Contact us for getting those questions answers, we will sent you detailed videos
