160 Corner Crimping Machine Windows and Doors Machine Synchronous Type

160 Corner Crimping Machine Windows and Doors Machine Synchronous Type
160 Corner Crimping Machine Windows and Doors Machine Synchronous Type 160 Corner Crimping Machine Windows and Doors Machine Synchronous Type 160 Corner Crimping Machine Windows and Doors Machine Synchronous Type 160 Corner Crimping Machine Windows and Doors Machine Synchronous Type 160 Corner Crimping Machine Windows and Doors Machine Synchronous Type

Large Image :  160 Corner Crimping Machine Windows and Doors Machine Synchronous Type

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WZJ-160
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3350 USD
Packaging Details: Plywood Box
Delivery Time: 7 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 60 Sets / Month

160 Corner Crimping Machine Windows and Doors Machine Synchronous Type

Description
Power Supply: 380V/50HZ (Customized) Power: 1.5KW
Air Pressure: 0.6~0.8MPa Profile Processing Height: 160mm
Overall Dimension: 900*1200*1100mm

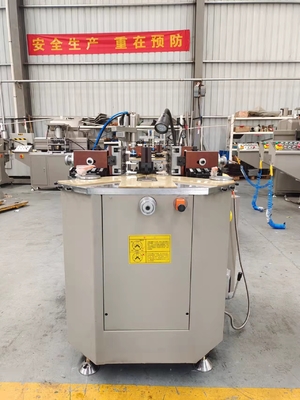

              Alumimnum Windows Corner Crimping Machine

                                Profile Processing Height: 160mm

                            The front Position Plate can be up and down

                                     Heavy Duty for thin alloy profile

160 Corner Crimping Machine Windows and Doors Machine Synchronous Type 0
1. Main Feature
● Put the corner wrench into the aluminum alloy 45° window profile, move the thrust fork, tighten the two window profiles to form a 90° arrangement angle. The device is modified to stay with the corner button function.

●Because it increases dimensions and therefore punching power, it is the perfect choice for molding thermal break door angles, window profiles and thick facade materials.

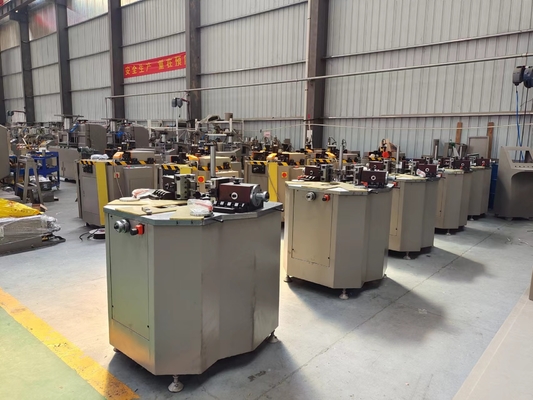

2. Machine during production:
160 Corner Crimping Machine Windows and Doors Machine Synchronous Type 1

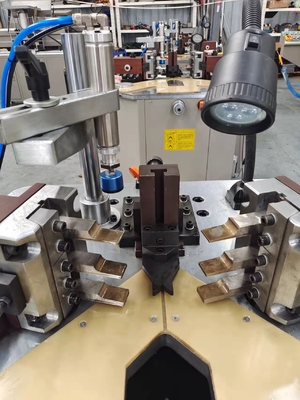

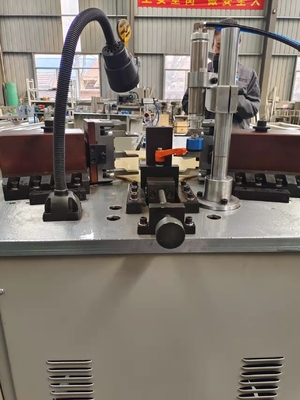

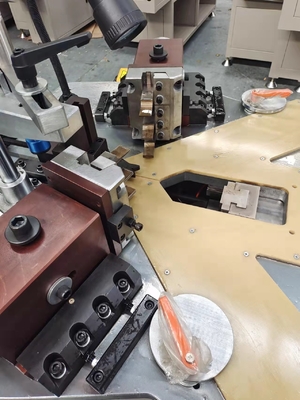

3. Corner Crimping Machine Details

160 Corner Crimping Machine Windows and Doors Machine Synchronous Type 2



160 Corner Crimping Machine Windows and Doors Machine Synchronous Type 3

4. Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Contact Us For More Information:



Besides Corner Crimping Machine, We also produce Other Windows and Doors Machine



1. Double Head Cutting Machine

2. Aluminium Profile Automatic CNC Drilling Milling Machine

3. Alloy End Miller

4. Alloy Punching Machine
