WSZ-CNC-2500 CNC Aluminum Drilling Machine Automatic Milling Machine

           Aluminum Profile Automatic Drilling Milling Machine

                Suitable metallic element Length: inside 2500mm

                   work table Turn: -90 zero and +90 degree

            Function: Drilling Milling Holes on Aluminum Material

1. Main Feature

● It is appropriate for the processing of spherical holes, slot holes, key holes, special-fashioned holes of industrialaluminum alloy profiles, doorways and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, aircraft engraving and different processes.

● The fundamental shaft adopts an air-cooled electric powered fundamental shaft with a energy of 6KW and a rotation pace of 6000 to 18000 revolutions/min. It has excessive precision, exact protection and excessive reliability.

● The control system is equipped with professional graphics library and profile library, which is easy to operate and efficient.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The automated mercury oil deliver machine is adopted, and the cutter adopts a machine-managed spray cooling device.

● The major components of the gadget device are made from metal structure, all of that have gone through vibration getting older and strain alleviation remedy to make certain solid operation

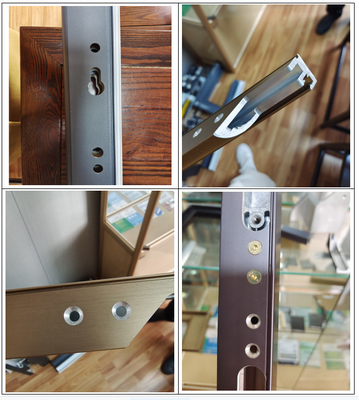

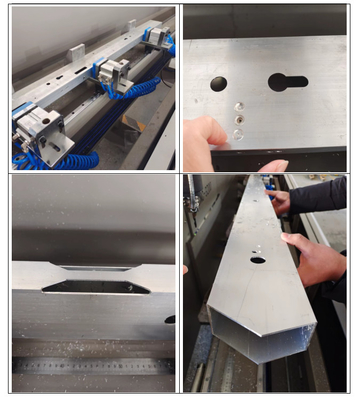

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

Milling all type holes on aluminium profile

holes for windows and doors, curtain wall alloy profiles

3. Parameter

●X axis Journey: 2500mm

●Y axis Journey: 400mm

●Z Axis Journey: 300mm

● X axis Speed: 60M/min

● Y/Z axis Speed: 40M/min

● Overall Size: 3800*2000*2600mm

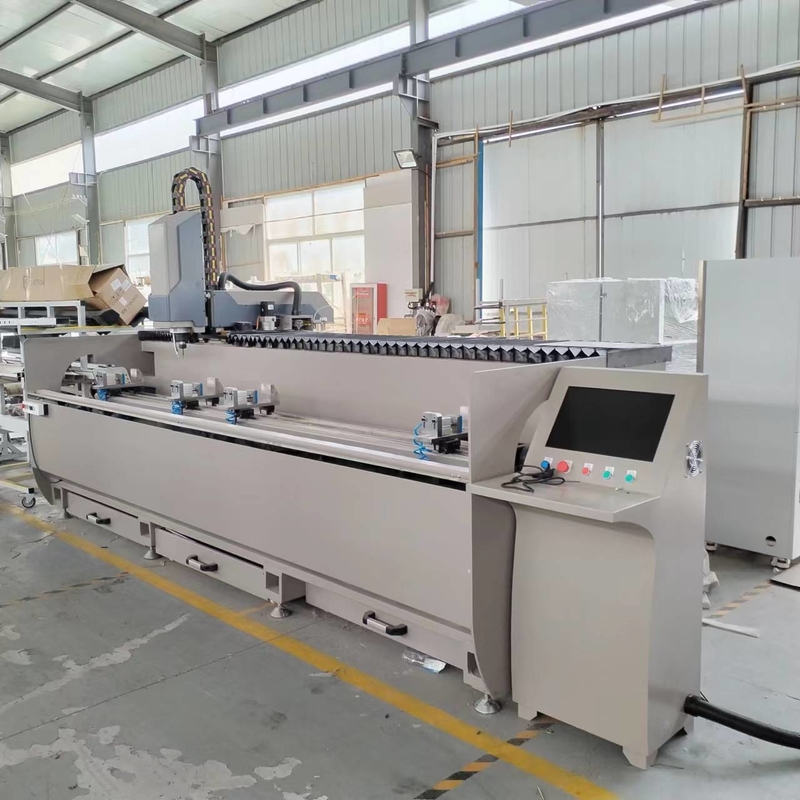

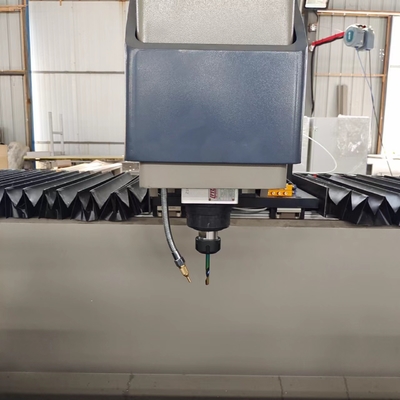

4. Machine Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
