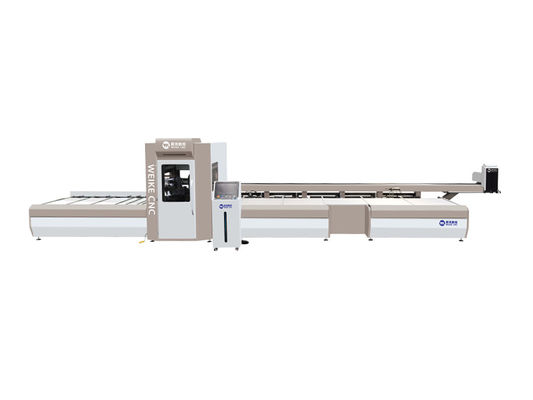

CNC Intelligent workstation Cutting And Milling Center for Aluminum Profiles Door and Window Making Machine

1. Feature:

1. This production line mainly targets the cutting, drilling, and milling of broken bridge aluminum door and window profiles and some industrial aluminum profiles. The production line first performs drilling and milling of holes and grooves on the four surfaces of the profile, as well as engraving processing, and then cuts the profile at ± 45 ° and 90 ° angles.

2. This production line achieves the processing of injection holes, pin holes, drainage holes (hidden drainage holes), corner guards, handle holes, lock boxes, door lock body holes, installation holes, and profile cutting for the system door and window profiles in one loading process.

3. 22 axis fast multi-channel multi axis linkage processing: The independent laser drilling and milling cutting unit realizes the rear laser drilling and milling line drawing, and the independent spindle milling cutter drilling and milling unit realizes the front laser line drawing and six station fast drilling and milling. The electric spindle unit is fully servo controlled to achieve four sided processing of profiles, and is matched with a customized inclined spindle drilling and milling to quickly complete the drilling and milling of various holes and grooves.

4. The high-precision spindle motor cutting unit can cut aluminum profiles for doors and windows at any combination of angles ranging from 40 ° to 140 °, with high efficiency. The tail material is treated with a 90 degree head alignment, and the saw blade avoids back cutting to prevent back cutting from sweeping the material. The front and rear cutting positions are controllable, and micro lubrication cooling is used.

5. Support batch processing or mixed processing of various door and window profiles (frames, sashes, mullions, and screen sashes).

6. The production line supports data integration with door and window design software to achieve intelligent connected production.

7. Equipped with a barcode printer, the material identification is automatically pasted onto the surface of the profile in real-time, achieving process information identification and facilitating material management and connection with enterprise ERP management software.

8. Equipped with a waste output device, it eliminates the accumulation of waste materials causing site pollution and improves the production environment.

2. Parameter:

Power specification: Three phase four wire 380V/50HZ

Total power: 47KW

Compressed air: 0.6-1.3 MPa

Cutting angle: 40 ° -140 °

Processing length range: 200mm at 90 ° (240mm at 45 °) -6800mm

Cutting and milling width: 150 mm

Cutting and milling height: 150 mm

Sawing spindle: 4KW (2860r/min)

Drilling and milling spindle: 5 × 3.7KW+1 × 4.5KW

Length accuracy: 0.2mm

Feeding speed: 0-200mm/min

Saw blade feed rate: 0-15m/min

Profile wool training length: 1000mm-6800mm

Milling speed: 0-1500mm/min

Laser milling X processing range: 0-350mm

Spindle milling X machining range: 0-350mm

Laser cutting speed: 8000mm/min

Saw blade specification: Φ 550mmx4.4x3.6x30x140T

Gas consumption: 130L/min

Dimensions: 16500 (length) x3000 (width) x2600 (height) mm

Total weight of the machine: 8000KG

Long processing life hard alloy saw blade

The high-precision spindle and saw blade ensure cutting quality and can achieve any cutting angle of 40 ° -140°.

4-station drilling and milling spindle unit

Various openings in door and window profiles can be processed in one operation, including adhesive holes, nail holes, drainage holes, handle holes, lock boxes, door lock body holes, and installation holes.

CNC feeding system

The feeding and discharging systems are fully servo controlled, fast and accurate.

Intelligent clamping system

The robotic arm can firmly grip profiles from any angle from 0 to 360 degrees, meeting the clamping and feeding requirements of various profiles.
