Product Details:
|
| Type: | Cutting Aluminum In 90 Degree | Usage: | Industry Aluminum Material |
|---|---|---|---|
| Warranty: | 3 Years | Condition: | New |
| Power: | 6KW | Working Pressure: | 0.6~0.8Mpa |
| Style: | Saw Blade Cutting From Bottom | Name: | Single Head CNC Cutting Saw |
| Highlight: | 0.6Mpa Automatic Corner Cutting Saw,0.6Mpa Cnc Aluminium Bar Cutting Machine,6KW Cnc Aluminium Bar Cutting Machine |
||
CNC Cutting Saw For Cutting Aluminum material
Specially used for 90-degree cutting of industrial aluminum profiles, multiple profiles can be placed at one time, automatic feeding, and high efficiency.
1. Feature:
1.1 The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw.Stable operation,high precision.
1.2 With the function of automatic counting.
1.3 With the device of spraying,which could improve the processing precision and prolong the service life of saw blade.
| Product Parameter | |
| Motor power | 3 kw |
| Power supply | 380V/50Hz (Can make according your voltage ) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw blade specification | Φ500 |
| Processing width*height | 300mm*100mm |
| Overall dimension | 2200*1400*1550mm |
| Weight about | 750kg |

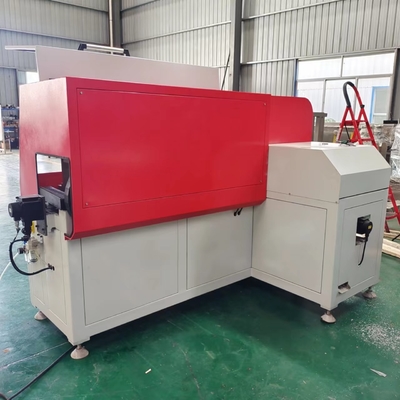

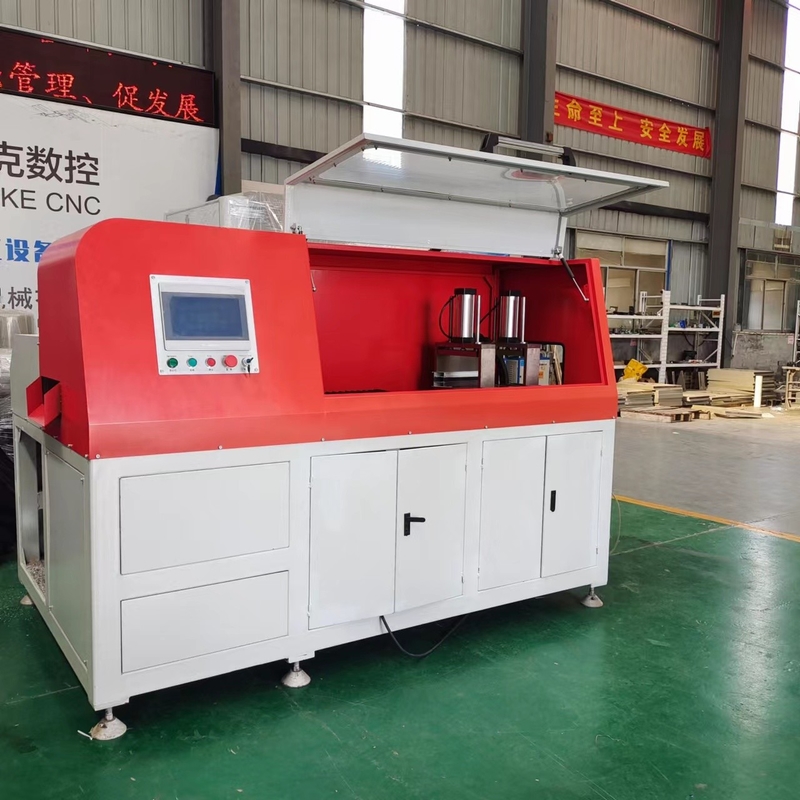

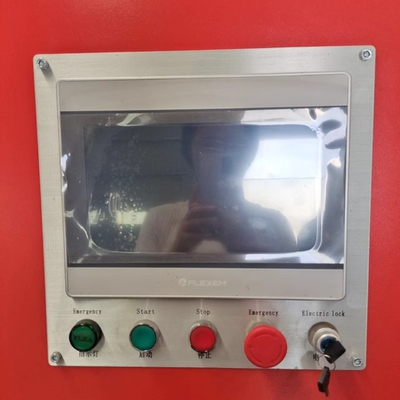

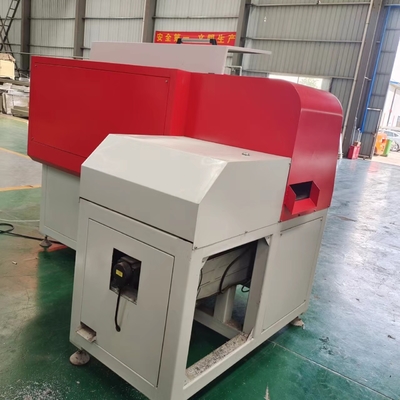

Machine Details:
