3 Axis Aluminum Window Door Machine Aluminum Drilling Milling Machine

                  Aluminum Profile Automatic Drilling Milling Machine

This Aluminum 3 Axes CNC Milling Machine is special designed for working with windows and doors profile. For getting different type holes, such as lock holes, water slots, handle holes, round holes, square holes etc. Suitable Aluminum Length: within 2500mm (Can be produce according clients need), worktable Turn: -90 0 and +90 degree,Function: Drilling Milling Holes on Aluminum Material

1. Main Feature

● The automatic mercury oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.

●   The main parts of the machine tool are made of steel structure, all of which have undergone vibration aging and stress relief treatment to ensure stable operation

● The control system is equipped with professional graphics library and profile library, which is easy to operate and efficient.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The automatic mercury oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.

● The main shaft adopts an air-cooled electric main shaft with a power of 6KW and a rotation speed of 6000 to 18000 revolutions/min. It has high precision, good safety and high reliability.

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped
holes for windows and doors, curtain wall alloy profiles
Milling all type holes on aluminium profile

3. Parameter

●Z Axis Journey: 300mm

●Y axis Journey: 400mm

●X axis Journey: 3200mm

● X axis Speed: 60M/min

● Overall Size: 4000*2000*2600mm

● Y/Z axis Speed: 40M/min

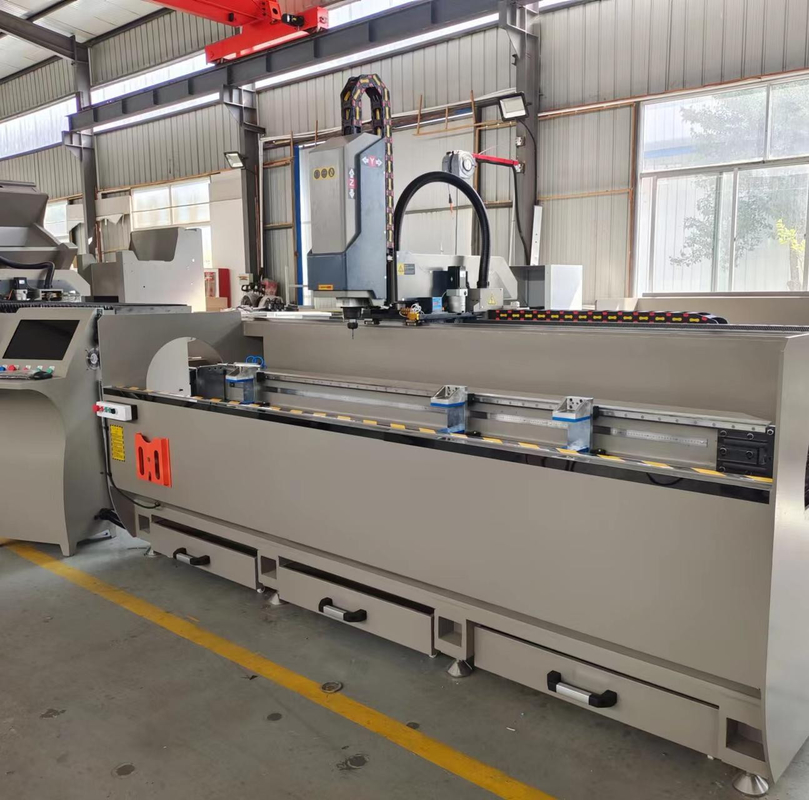

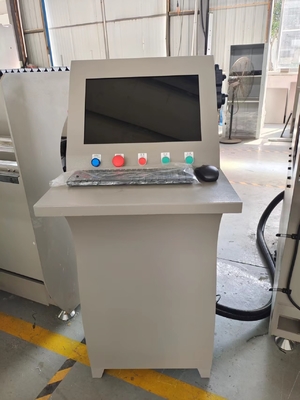

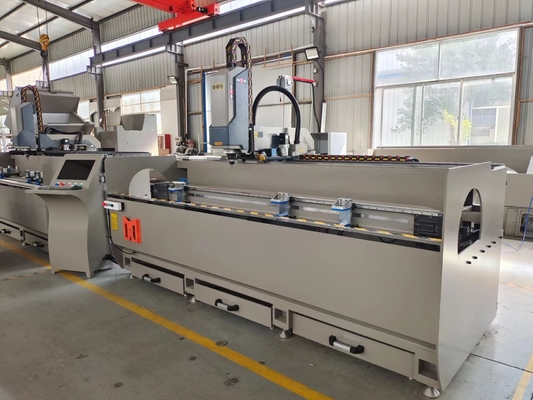

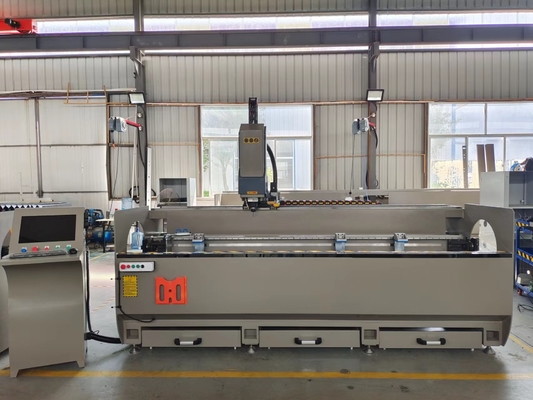

4. Machine Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
