Product Details:
|
| English Manual: | Provide | Video Training: | Provide |
|---|---|---|---|
| Remote Function: | Have | Engineer Training: | English Training |
| Sawing Angle: | 45 And 90 Degree | Working: | Automatic Moving And Cutting |
| Highlight: | CNC Aluminum Window Door Machine,500mm Cnc Double Head Cutting Saw,500mm Cnc Double Head Cutting Saw |
||

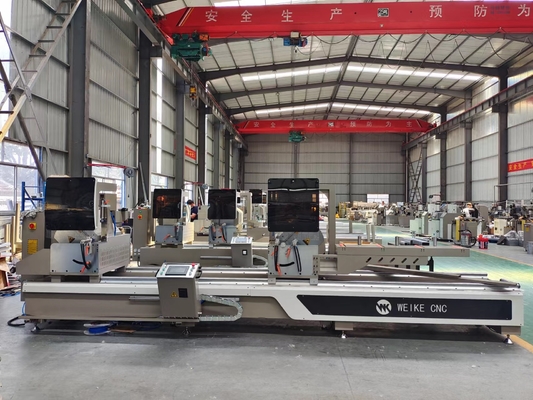

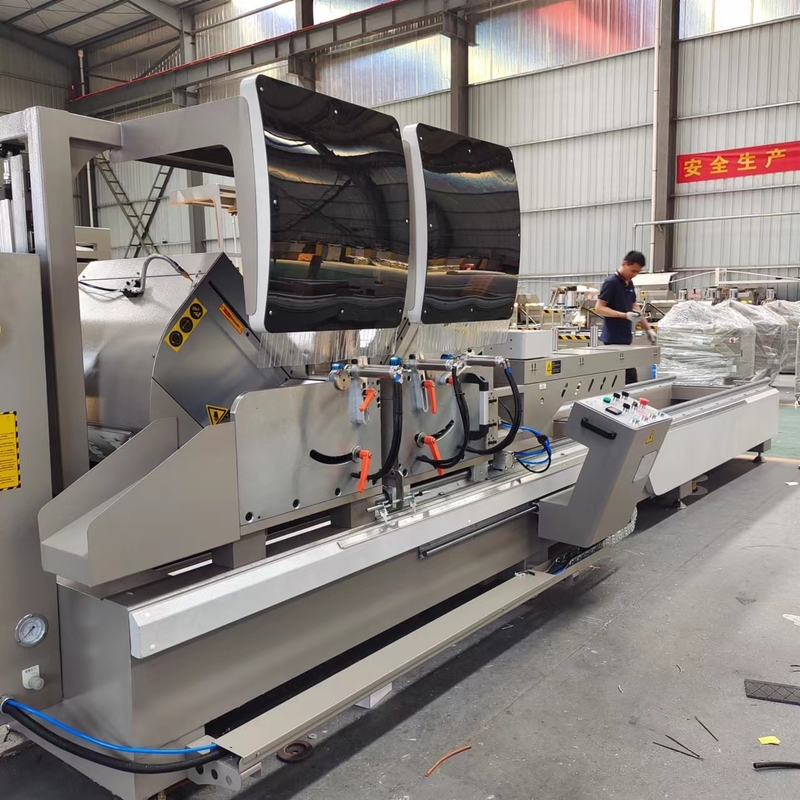

The 500/550/600 saw blade double head cutting off machines are used for cutting aluminium, UPVC and light alloy profiles, ideal for mass production and special applications as they guarantee great reliability. The present Series, provided with highrigidity, are equipped with two independent cutting heads, and the right cutting head is automatically moved by a CNC DC motor. The machine can be provided with an industrial label printer to enable profile identification and association with relative job.
● Used for cutting aluminum alloy doors and windows and facade profiles.

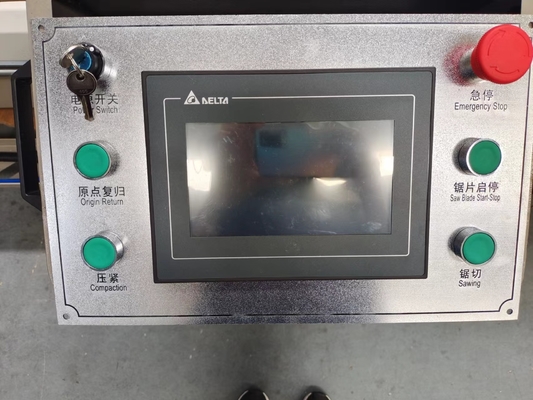

● It uses a numerical control unit to accurately display the length of the cutting profile.
● High-precision spindle ensures stable rotation of the saw blade.
● Gas-liquid damping cylinder ensures smooth forward speed regulation and stable movement.

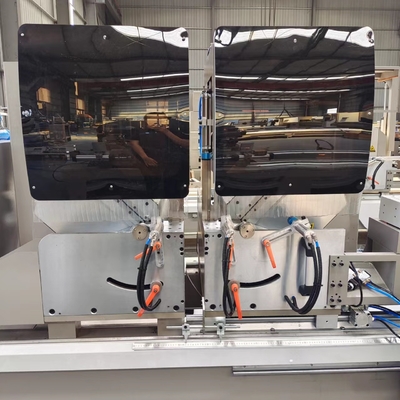

● Automatically liftable protective hood for safe and comfortable work.
● The feeding system uses an imported pair of linear guides with high precision and long service life.
2. Technical Parameter
● Cutting angle: 90° and 45°
● Cutting length: 290~6000mm
● Overall dimension: 5800 x 1500 x 1700mm
● Weight about: 1650kg
● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
● Power supply: 380V/50Hz (Can make according your voltage)
● Air pressure: 0.6~0.8MPa
● Motor rotary speed: 2800r/min
● Saw blade specification: φ500 / φ600
Option:
| 1 | Saw Blade: 500/550/600mm |
| 2 | Printer |
| 3 | Connect with windows design software |
| 4 | Main Spindle and Motor Option |
| 5 | Cutting length Option |
| 6 | Have different machine frame |
|
|
||
|
|
||
|
|
||
|
|
|
|
|
|
||
|
Right head and left head have own lubrication, so oil can be more average |
||
|
