Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine

Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine
Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine

Large Image :  Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WDX5-CNC-350
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 12500 USD
Packaging Details: Plywood Box
Delivery Time: 7 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 30 Sets / Month
Contact Now

Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine

Description
Saw Blade: Diameter 350mm And 300mm Max Tenoning: 100mm
Worktable Range: 400*180mm Milling Bits: Vertail And Horizontal
Function: Milling And Cutting Suitable Material: Window And Doors Alu Profiles
English Manual: Provided English Video: Provided
Highlight:

Automatic Aluminum End Milling Machine

,

Aluminum End Milling Machine 350mm

,

350mm Aluminium Door Making Machine

              5 Axes CNC End Milling Machine For Window Door Machine

This machine is designed to milling the end of aluminum profiles, Programming according different profile. Then machine will adjust milling bits automatic to achieve milling grooves. Have 2 end milling saw blade, so one time can working with 2 bits on aluminum profiles. One of saw blade can turn to vertical and horizontal, so can milling also can cutting aluminum profile.

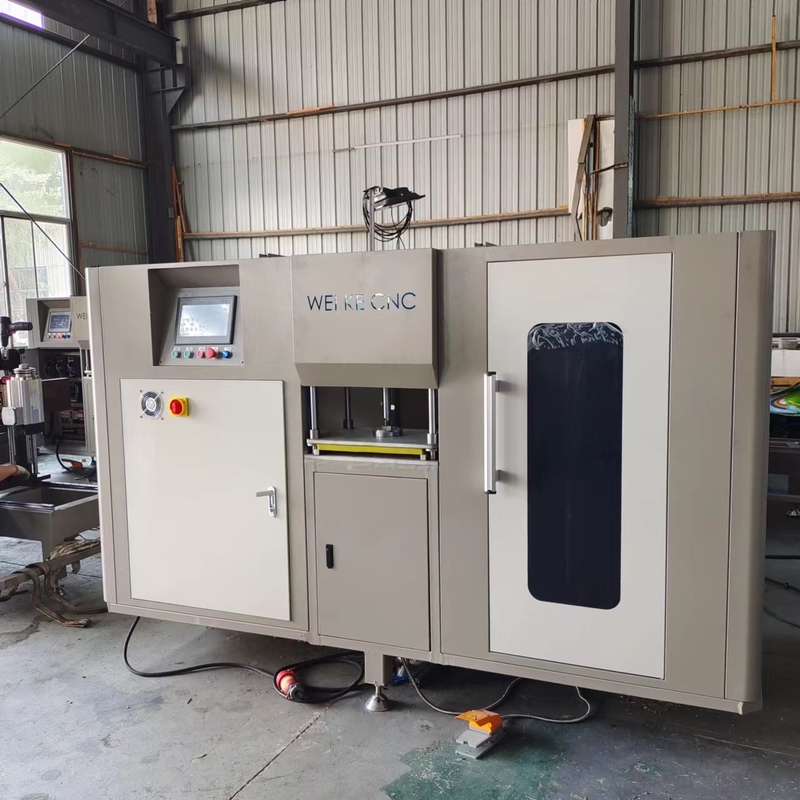

Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine 0

1. Main Feature
● The system uses CNC numerical management system, the numerical control servo adjusts the tool to maneuver up and down, left and right, and also the feed rate may be adjusted to quickly retract the tool. The process space is large, the operation is convenient, and the production potency is high.
● It is suitable for shaping and processing the end faces and step faces of various profiles, to adjust the
setting of profiles with different cross sections, and to fix the profiles.
2.  CNC End Milling Machine Details

Control System

Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine 1

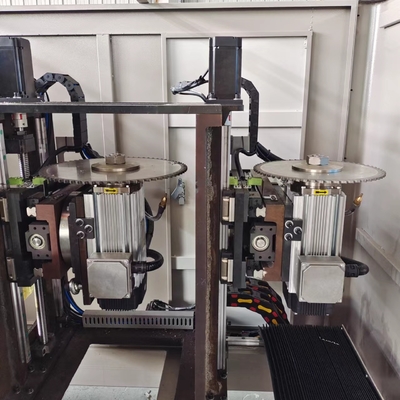

Milling Saw Blade in horizontal position: have 2 milling saw blade

Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine 2



Milling Saw Blade in Horizontal Position

Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine 3



Worktabel can put many pcs aluminum profile together

Automatic Aluminum End Milling Machine 350mm Aluminium Door Making Machine 4







3. Main Technique Parameter:
Power supply
380V 50Hz
Working air pressure
0.6-0.8Mpa
Input power
6KW
Suitable material
aluminum profile
Type
milling machine
Size(long×width×high)
2600*1350*1650mm
Main motor rotation speed
2800r/min
Weight
950Kg
Provide Service:
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Provide: English Manaul  -----Video Training-----Online Training
