Product Details:
|
| Input Power: | 3kw | Power Supply: | 380V/50Hz （Can Make According Your Voltage） |
|---|---|---|---|
| Processing Profile Height (maximum): | 160mm | Dimensions: | 900×1200×1300mm |
| Highlight: | Corner Crimping Machine 160mm,WEIKE Hydraulic Corner Crimping Machine,50Hz Heavy Aluminium Window Crimper |
||
Coner Crimping machine for closing corners of aluminum profiles of all types. Easy to adjust thanks to the translation of the punching units. The blade units are equipped with a quick release mechanism and magnets to prevent them from falling. Easy to use and versatile.
1. Feature
1. The power is controlled by the hydraulic system, and the oil tank adopts the circulating air cooling device,which makes the work stable and reliable.
2. The steel synchronous feed of left and right punch can avoid the useless deformation in the process of forming Angle and make the connection of window Angle more firm.
3. Synchronous feed mechanism, using counter to adjust the breaking depth of Angle knife to make the machine easy to adjust.
WZJ-160Z
Corner crimping machine
| Product Parameter | |
| Input power | 3kw (horizontal air cooling) |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Rated pressure | 20MPa |
| Total crimping pressure | 48KN |
| Air consumption | 2L/min |
| Processing profile height (maximum) | 160 mm |
| Dimensions | 900×1200×1300mm |
2.Other products

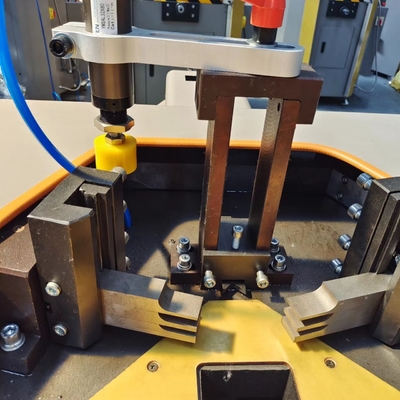

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
