Product Details:
|
| Crimping Capacity With Standard Blades: | 160mm | Power Supply: | 380V/50Hz （Can Make According Your Voltage） |
|---|---|---|---|
| Total Crimping Pressure: | 48KN | Logo: | Standard Or Customized |
| Highlight: | 50Hz Aluminum Corner Crimping Machine,48KN Aluminum Corner Crimping Machine,Crimping Machine For Aluminium Windows 48KN |
||
1. Corner joining of aluminium profiles at 90°
2. Clamps operate pneumatically. The crimping knives are hydraulic
3. Depth of adjustment can be precisely adjusted depending on profile thickness
4. Height of crimping knives, advancing of hyraulic cylinders and profile stop can be milimetrically adjusted
5.The centering plate and the stop fence return to start position after crimping automatically
WZJ-160Z
Corner crimping machine
| Product Parameter | |
| Input power | 3kw (horizontal air cooling) |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Rated pressure | 20MPa |
| Total crimping pressure | 48KN |
| Air consumption | 2L/min |
| Processing profile height (maximum) | 160 mm |
| Dimensions | 900×1200×1300mm |

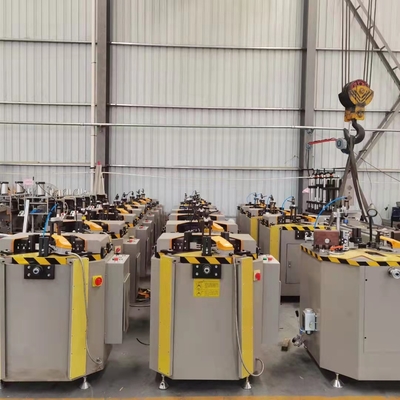

2.Other products

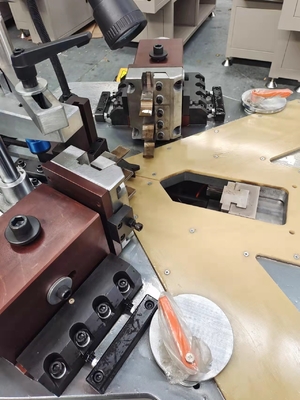

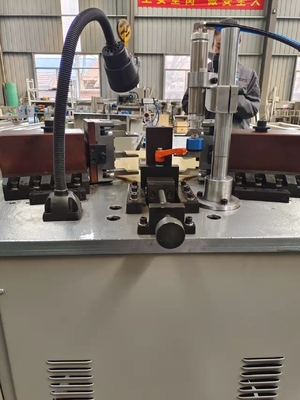

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
