Product Details:
|
| Operational Mode: | Automatic | Maximum Frame Size: | Height 1800mm × Width 3000mm |
|---|---|---|---|
| Minimum Frame Size: | Height 480mm × Width 480mm | Air Pressure: | 0.6~0.8MPa |
4-head crimping machine with controlled tool positioning and manual loading/unloading table
The simultaneous crimping of all 4 corners of a square means it is possible to increase productivity fourfold with respect to traditional machines, while maintaining high standards of quality in the product.
1. Features
1. Used for corner assembling processes of aluminum profiles.
2. Steel plate with high pressure resistance
3. Automatic positioning with servo system
4. Touchscreen
5. Adjustable clamping system for high profiles
6. Adjustment of crimping blades based on profile
7. Strong hydraulic pump system
8. User friendly, easy interface program
9. Low noise, long service life
NC4H-100*1800*3000

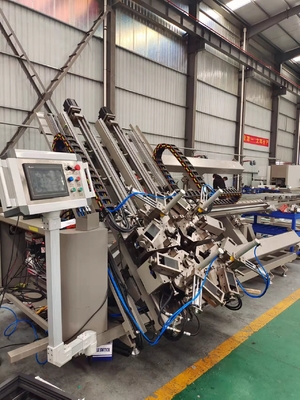

CNC 4 Head Corner crimping machine
| Product Parameter | |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Rated power | 7.5KW |
| Rated hydraulic pressure | 15MPa |
| Capability of oil box | 40L |
| Corner cylinder movement stroke | 0～50mm |
| Maximum frame size | Height 1800mm × Width 3000mm |
| Minimum frame size | Height 480mm × Width 480mm |
| Suitable for profile width | 100mm |
2.Other products

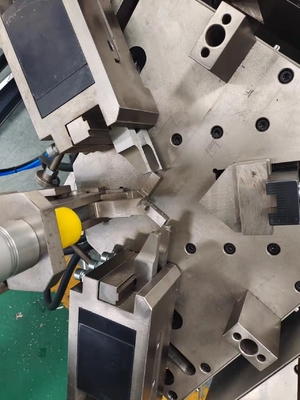

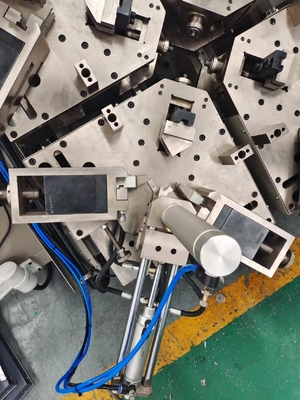

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
