Product Details:
|
| Maximum Frame Size: | Height 1800mm × Width 3000mm | Minimum Frame Size: | Height 480mm × Width 480mm |
|---|---|---|---|
| For Profiles: | Aluminium | LOGO: | Standard Or Customized |

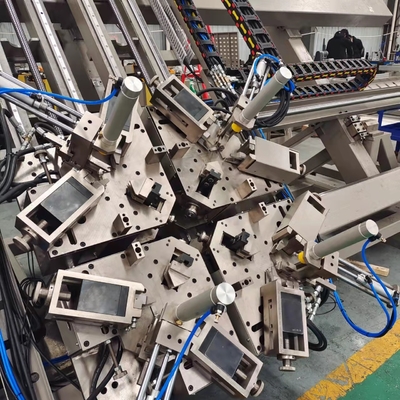

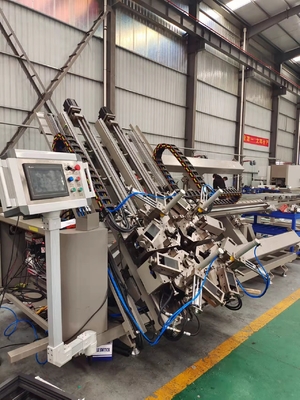

NC4H-100×1800×3000 CNC aluminum doors and Windows four-head corner crimping machine is a special equipment for high-grade aluminum doors and Windows, which can complete four corners connecting at one time.
1.Features
1. Automatic hydraulic crimping of all 4 corners in one operation.
2. It can finished a whole rectangle frame combination at one time.
3. The whole combination procedure CNC controlled, features high automatization.
4. The four head moving system adopt linear bearing, which features high precision, high resistance.
5. The machine can combine both the common aluminum profiles and also the thermal breaking aluminum profiles.

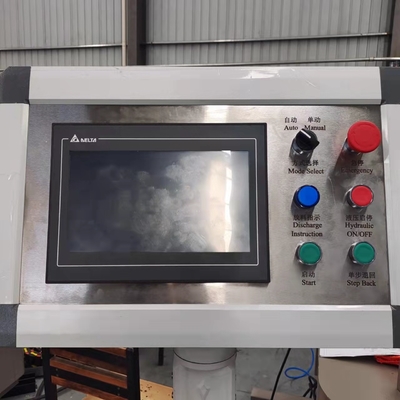

6. The control system has position control and momental feedback function for preventing location error.
7. Servo system, self-brake device for making sure high precision crimping and accurate crimping position.
8. Dual enlarge location block makes stable location.
NC4H-100*1800*3000
CNC 4 Head Corner crimping machine
| Product Parameter | |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Rated power | 7.5KW |
| Rated hydraulic pressure | 15MPa |
| Capability of oil box | 40L |
| Corner cylinder movement stroke | 0～50mm |
| Maximum frame size | Height 1800mm × Width 3000mm |
| Minimum frame size | Height 480mm × Width 480mm |
| Suitable for profile width | 100mm |
2.Other products
3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
