Product Details:
|
| For Profiles: | Aluminum | Saw Blade Specification: | Φ300 、Φ350 |
|---|---|---|---|
| Maximum Tenon: | 100mm | Processing Width*height: | 400mm*180mm |
| Highlight: | ISO9001 Aluminum End Milling Machine,Aluminum End Milling Machine 6kw,6kw 5 Axis Machining Center |
||
CNC end milling machines are the ideal machine tools for milling doors and transom profiles, in either UPVC or aluminum.
CNC system control, only need to input the numerical value to process, after the program is saved, it can be called with one key, which is convenient and quick.
1.Features

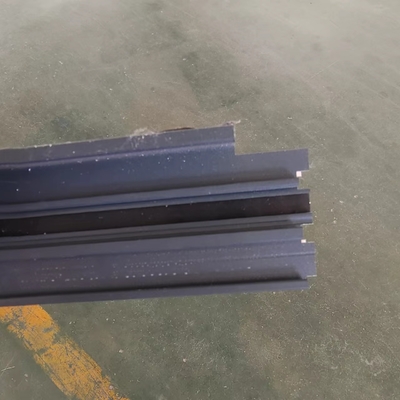

1. It is suitable for forming the end milling and step surface of various profiles (strengthen the middle stile, the system door and window frame fan is flush with the middle stile, the arc middle stile, the upper and lower rails of the sliding door and the frame are seamlessly connected) to adapt to the cooperation of different sections of profiles , the profile is fixed.
2. The system adopts CNC control system, the CNC servo motor adjusts the tool to move up and down, left and right, the milling stroke is controllable, the feed speed is adjustable, and the tool retracts quickly. The processing range is large, the operation is convenient, and the production efficiency is high.

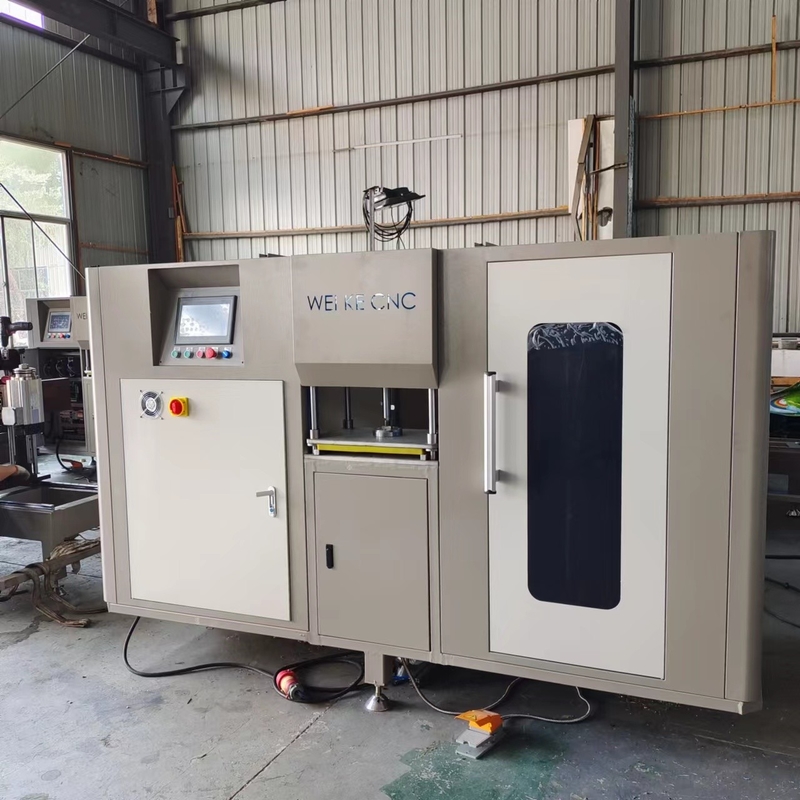

WDX5-CNC-350
CNC End Milling Machine
| Product Parameter | |
| Motor power | 2×3 kw |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw blade specification | Φ300 ,Φ350 |
| Maximum tenon | 100mm |
| Processing width*height | 400mm*180mm |
| Overall dimension | 2600×1350×1650mm |
| Weight about | 1200kg |
2.Other products

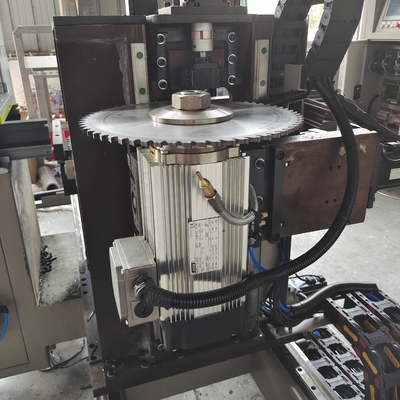

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
WEIKE provide machine
More important is provide
Solutions
