Product Details:
|
| Saw Blade Specification: | Φ300 And Φ350 | Air Pressure: | 0.5~0.8MPa |
|---|---|---|---|
| Processing Width*height: | 400mm*180mm | Color: | Standard Or Customized |
| Highlight: | 0.5MPa Aluminum CNC End Milling Machine,50Hz Aluminium 7 Axis Milling Machine,0.5MPa Aluminium 7 Axis Milling Machine |
||
CNC end milling machines are designed for cutting aluminium or UPVC profiles and similar materials.
The present series of end milling machines are composed of various models, each one different from the other in terms of cutting system and blade diameter. These features, together with the sturdy built- in structure, allow to carry out precision milling on profiles of various sizes.
1.Features
1. The feeding system adopts variable frequency motor ,so that the feeding speed can be adjusted and profile
can be stably cutted.It could achieve high accuracy and nice processed surface.
2. It can realize multi-quantity and multi-batch of longer profile molding under the way of profile fixed and tools moved.
3. New type of curtain wall processing machine which applicated to various kinds of profiles end and step surface.

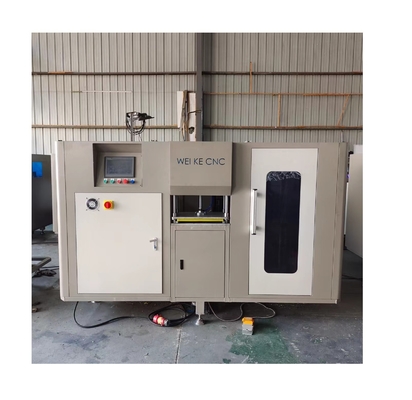

WDX5-CNC-350
CNC End Milling Machine
| Product Parameter | |
| Motor power | 2×3 kw |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw blade specification | Φ300 ,Φ350 |
| Maximum tenon | 100mm |
| Processing width*height | 400mm*180mm |
| Overall dimension | 2600×1350×1650mm |
| Weight about | 1200kg |
2.Other products

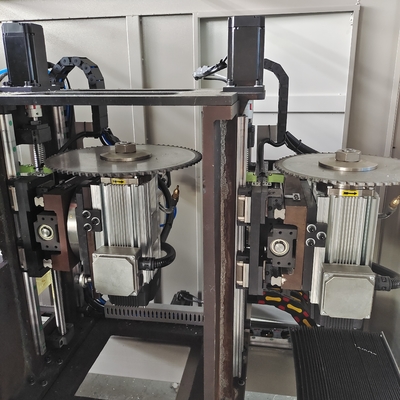

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
WEIKE provide machine
More important is provide
Solutions
