Product Details:
|
| Maximum Frame Size: | Height 1800mm × Width 3000mm | Minimum Frame Size: | Height 480mm × Width 480mm |
|---|---|---|---|
| Crimping Cylinder Stroke: | 0~50mm | Air Consumption: | 0.45L/Time |
| Highlight: | 480mm CNC Aluminum Window Door Machine,Aluminum Window Door Machine 7.5KW,7.5KW Aluminium Window Corner Crimper |
||

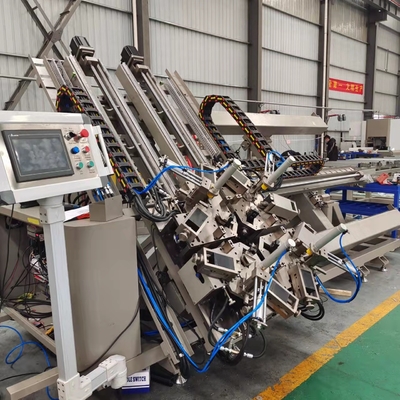

NC4H-100×1800×3000 CNC aluminum doors and Windows 4 head corner crimping machine isis used for 90 degree corner joining of aluminum profiles. Place a corner connector into the cavity of the two profiles before corner crimping, and the hydraulic-driven crimping knives make permanently cold deformation on aluminum profile outer layers. Using CNC control system, finishing four corner joining for a window frame or sash in one operation, the corner crimping machine is ideal equipment for mass production of aluminum doors and windows.
1.Features
1. Adjusting the size of aluminum doors and windows automatically, finishing the connection of four corners of a window frame or sash in one operation, high efficiency;
2. Servo motors and precision ball screws control the movement of four crimping units, which guarantees the repeatability positioning precision;

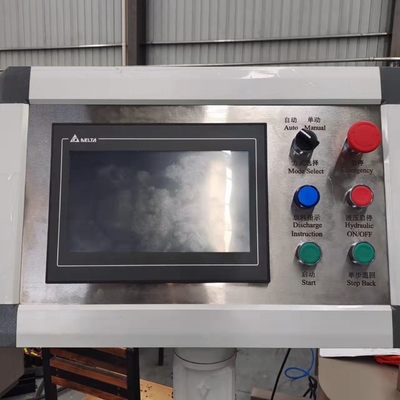

3. CNC control system and human-machine interface touch screen, easy to operate;
4. Powerful hydraulic system provides strong and stable pressing force for crimping knives, ensuring big punching and riveting force and high strength of corner connection.
NC4H-100*1800*3000
CNC 4 Head Corner crimping machine
| Product Parameter | |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Rated power | 7.5KW |
| Rated hydraulic pressure | 15MPa |
| Capability of oil box | 40L |
| Corner cylinder movement stroke | 0～50mm |
| Maximum frame size | Height 1800mm × Width 3000mm |
| Minimum frame size | Height 480mm × Width 480mm |
| Suitable for profile width | 100mm |
2.Other products

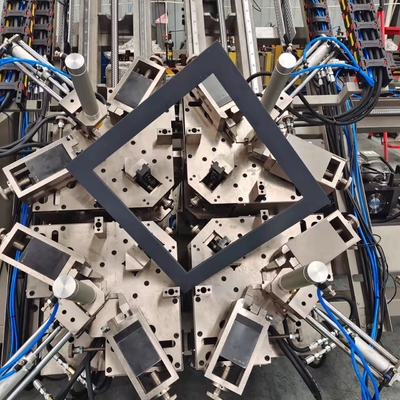

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
