Product Details:
|
| Motor Power: | 2*3KW，1*4KW | Processing Width*height: | 480mm*180mm |
|---|---|---|---|
| Maximum Tenon: | 100mm | Weight About: | 1200kg |
| Highlight: | 0.5MPa Aluminum End Milling Machine,Aluminum End Milling Machine UPVC,0.5MPa Curtain Wall Machine |
||
CNC end milling machines are designed for cutting aluminium or UPVC profiles and similar materials.
The present series of end milling machines are composed of various models, each one different from the other in terms of cutting system and blade diameter. These features, together with the sturdy built- in structure, allow to carry out precision milling on profiles of various sizes.
1.Features
1. Used for aluminum profile strengthens the end processing ,and suitable for various profiles with profiles,fixed,moveable cutter,the vector variable frequency speed control device of feed speed adjustable,rapid retreat knife,wherein the vertical knife blade disposable milling a plurality of reinforced out profile desired dimensions,improve production efficiency.
2. Convenient tool adjustment to meet different processing requirement,need not ordering tools when process various profile,thus candecrease cost and save time.
3. Large tool diameter,high milling speed and good processing resul.

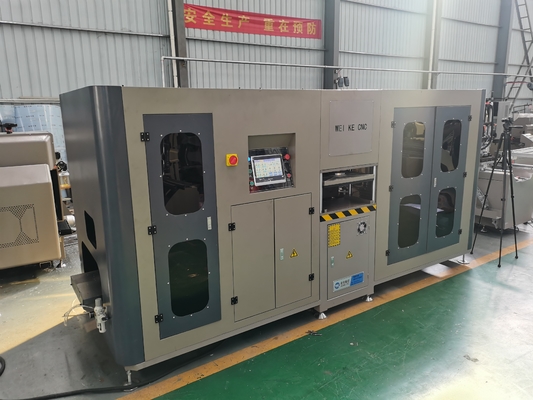

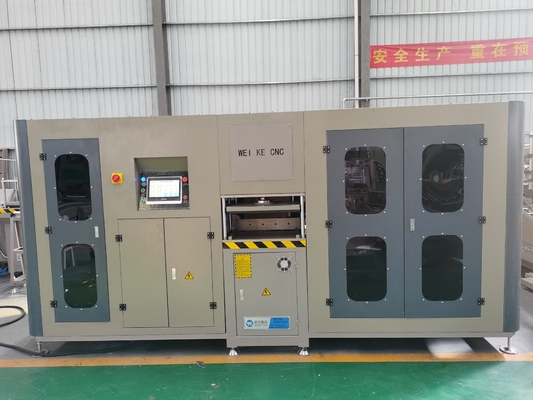

WDX7-CNC-300
CNC End Milling Machine
| Product Parameter | |
| Motor power | 2*3KW,1*4KW |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw blade specification | Φ300 |
| Maximum tenon | 100mm |
| Workbench size | 480mm*180mm |
| Overall dimension | 4050×1400×1850mm |
| Weight about | 1200kg |
2.Other products

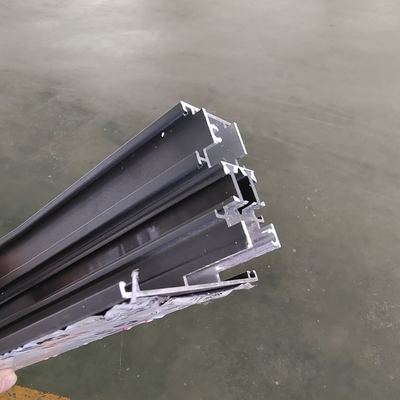

3.Working sample
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
