Product Details:
|
| Motor Power: | 2*3KW，1*4KW | Processing Width*height: | 480mm*180mm |
|---|---|---|---|
| CNC Or Not: | CNC | Servo Motor: | Yes |
| Highlight: | 4KW Aluminum 7 Axis Cnc Machine,Aluminum 7 Axis Cnc Machine ISO9001,4KW Window Door Machine |
||
CNC end milling machines are designed for cutting aluminium or UPVC profiles and similar materials.
The present series of end milling machines are composed of various models, each one different from the other in terms of cutting system and blade diameter. These features, together with the sturdy built- in structure, allow to carry out precision milling on profiles of various sizes.
1.Features
1. Used for processing aluminum profile end,step face and slot etc.
2. Super precision main shaft insures accu-rate and steady processing.
3. Convenient tool setting is due to adjustable worktable.
4. The cutter is mounted on high precision spindle, the motor running accuracy will not affect the tool working accuracy.
5. Cutter feeding adopts linear bearing motion pair so that the working perfor mance is stable

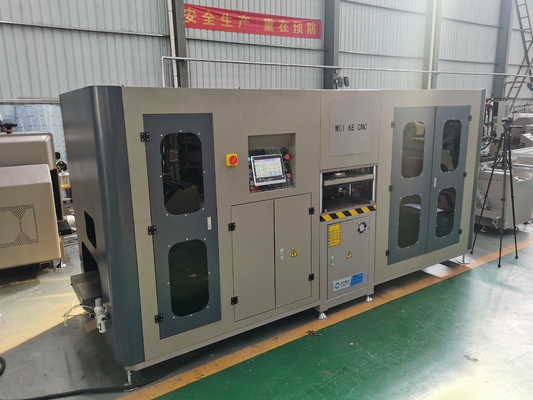

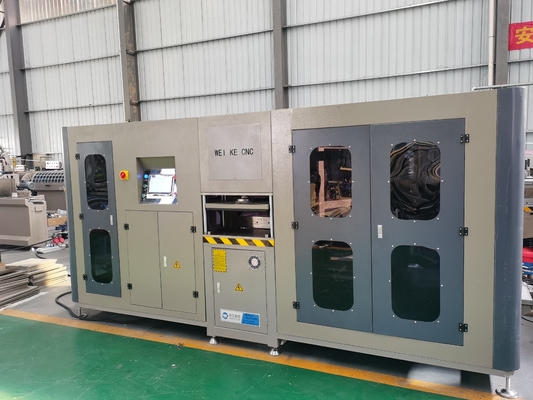

WDX7-CNC-300
CNC End Milling Machine
| Product Parameter | |
| Motor power | 2*3KW,1*4KW |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw blade specification | Φ300 |
| Maximum tenon | 100mm |
| Workbench size | 480mm*180mm |
| Overall dimension | 4050×1400×1850mm |
| Weight about | 1200kg |
2.Other products

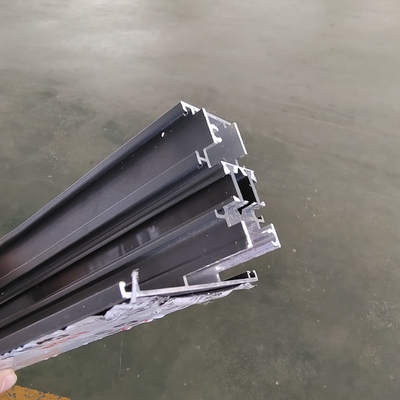

3.Working sample
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust tools?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
If you also have these questions, you can contact me for more details.
