120mm 140mm 160mm Aluminium Window Corner Crimping Machine Crimp Aluminium Profiles Finely At 90º

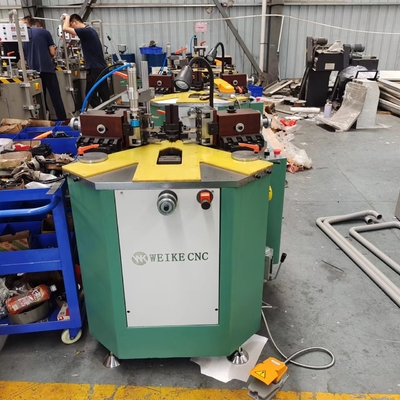

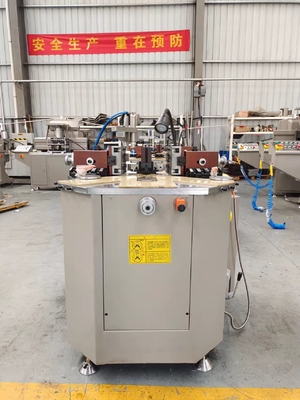

The WZJ-160Z Aluminum Corner Crimper is designed for 90 degrees corner connection of Aluminum profiles. Ideal for thermal break window systems that require air tight corners. Can be used for almost any mitred system that is designed for crimping.

1. Feartures

1. Aluminum corner crimping machine designed to crimp aluminium profiles finely at 90º by using aluminum corner joints to make strong aluminium window.

2. The middle pressure cylinder ensures that the profile is fixed and does not slide.

3. Works by hydro-pneumatic system.

4. Movable profile support arms and vertical adjustment option.

Technical Parameters

◎Model: WZJ-160Z
◎Power supply: 380V 50Hz
◎Power: 3KW (horizontal air cooling)
◎Rated pressure: 20MPa
◎Total group angular pressure: 48KN
◎The movement of the group angle cylinder forms 98mm
◎Working air pressure: 0.6-0.8MPa
◎Air consumption: 2L/min
◎ Fuel tank capacity: 20L
◎Processing profile height (maximum) 160 mm
◎Dimensions: 900×1200×1300mm

2.Details

1.Worktable:

Extra-large and extra-wide worktable, covered with PVC, to better protect the profile from being scratched

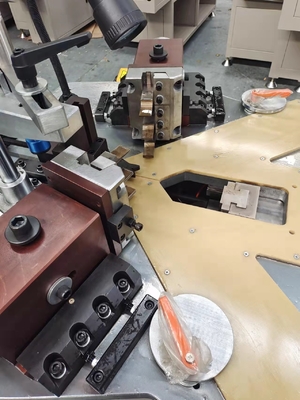

2.Corner cutter

3 sets of knives, height adjustable

3.Positioning block

Automatic lifting

4. Console

With counting function

5.Electric Components:

French Schneider

6. After working samples


3. Other products



4. Workshop showing

5. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

6.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port


7. Any Questions?

1.Are there training instructions?
2. How long is the warranty?
3. What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
