Product Details:
|
| Motor Power: | 3.3kw | Motor Rotary Speed: | 2800r/min |
|---|---|---|---|
| Saw Blade Specification: | 650 | Cutting Angle: | 22.5° - 90°any Angle |

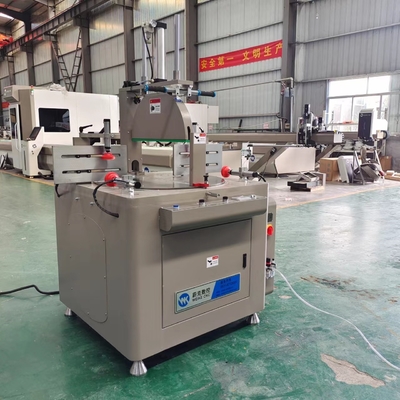

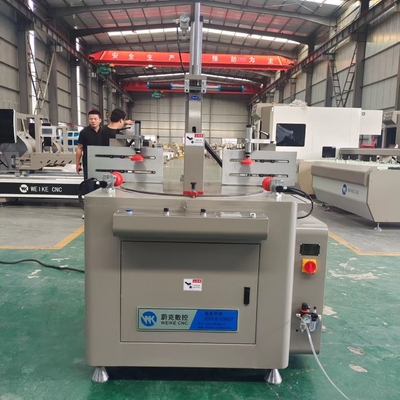

LJZA-650 arbitrary angle single-head cutting saw is equipped with a large saw blade with a diameter of 650mm, and the maximum cutting height is 240mm. It can be adjusted at any angle between 22.5 and 90 degrees, which is convenient and efficient.
1. Equipment Features
1. The single-head cutting saw is suitable for any angle cutting of various types of aluminum profiles.
2. It is suitable for cutting 0-330mm section, and has a wide range of applications.
3. Carbide saw blade with high machining precision and high durability.
4. It can be used with digital display <optional CNC> sizing table, with high processing efficiency.
5. Multiple profiles can be cut at the same time
| Product Parameter | |
| Motor power | 3.3Kw |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2850r/min |
| Saw blade specification | φ650 |
| Cutting angle | 22.5° - 90°any angle |
| Cutting height | Max 240mm |
| Cutting width |
Max 200mm (45°)
Max 230mm (90°) |
| Overall dimension | 1400*1200*1950mm |
| Weight about | 650kg |
2.Mechanical details and after working samples

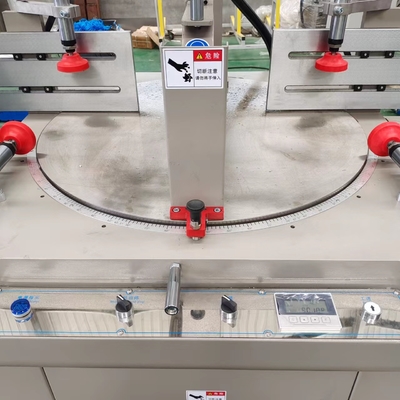

1.Worktable
It can be adjusted at any angle between 22.5 and 90 degrees
2.Left positioning plate and clamping cylinder
3.Right positioning plate and clamping cylinder
4.After working sample
3.Other products
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. What are the functions?
2. What are the advantages of singe head cutting saw?
3. Are there training instructions?
4. How long is the warranty?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
