Product Details:
|
| Motor Power: | 3.3kw | Motor Rotary Speed: | 2800r/min |
|---|---|---|---|
| Saw Blade Specification: | 650 | Cutting Angle: | +22.5°/-22.5° Any Angle |

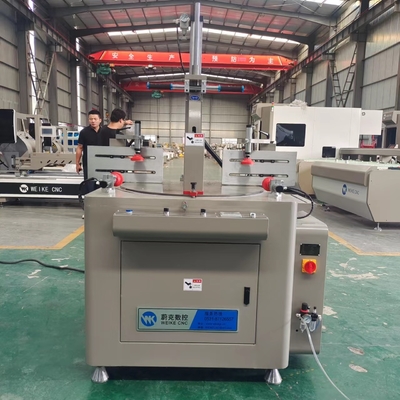

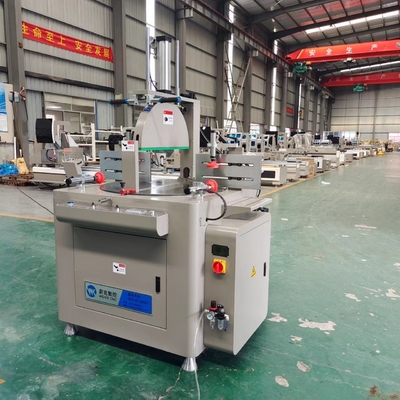

LJZA-650 arbitrary angle single-head cutting saw is equipped with a large saw blade with a diameter of 650mm, and the maximum cutting height is 240mm. It can be adjusted at any angle between +22.5°/-22.5°, which is convenient and efficient.
1. Equipment Features
1) Cutting Angle can saw within the range of +22.5°/-22.5°, so as to cut out the special Angle required by the profile.
2) The aluminum profile cutting is carried out after the positioning and pressing of the workpiece, which fully takes into account the safety of the workers.
3) Equipped with micro lubrication device and special cutting oil for aluminum alloy can increase the service life of the saw blade by more than 30% and avoid the phenomenon of electric leakage and shock.
4) Large cutting range for 650 saw blades.
5) The cylinder can be adjusted automatically, and the guide rail can be automatically lubricated to achieve self-maintenance.
| Product Parameter | |
| Motor power | 3.3Kw |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2850r/min |
| Saw blade specification | φ650 |
| Cutting angle | 22.5° - 90°any angle |
| Cutting height | Max 240mm |
| Cutting width |
Max 200mm (45°)
Max 230mm (90°) |
| Overall dimension | 1400*1200*1950mm |
| Weight about | 650kg |
2.Mechanical details and after working samples

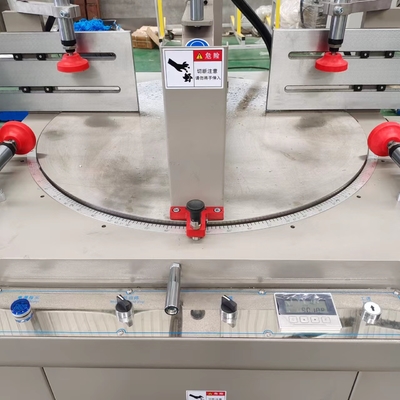

1.Worktable
It can be adjusted at any angle between 22.5 and 90 degrees
2.Left positioning plate and clamping cylinder
3.Right positioning plate and clamping cylinder
4.After working sample
3.Other products
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. What are the functions?
2. What are the advantages of singe head cutting saw?
3. Are there training instructions?
4. How long is the warranty?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
