Product Details:
|
| X Axis Maximum Torque: | 2000N/m×3=6000N/m | Maximum Diameter Of Roller Mold: | 300mm |
|---|---|---|---|
| Processing Profile Range: | Height 150× Width 150mm | Y Axis Cylinder Thrust: | 20 Ton |
| Highlight: | Aluminum Window Door Machine CNC,Bending Aluminum Window Door Machine |
||

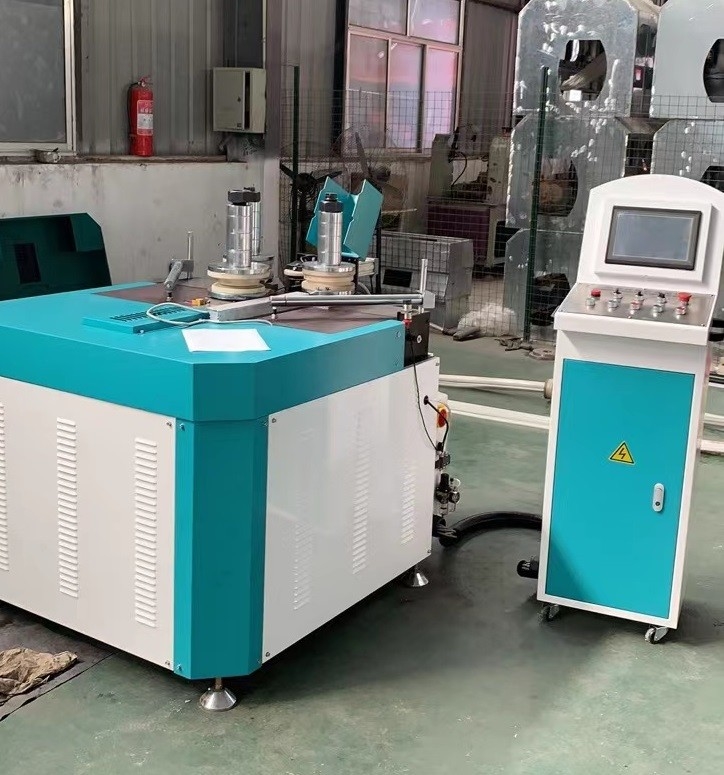

CNC Automatic Aluminum Window Door Frame Bending Machine
1. Equipment Features
1. The machine applies to bending several kinds of metal profiles to appears arc shape, such as iron, copper and aluminium.
2. Adopts special arc-processing software, can detect the data of rebound, and then eliminate the rebound.
3. It can make shapes of ellipse, circle and "C", "U" shapes etc.
4. Adopts computer control system, the location precision is less than 0.01mm.P
2. Parameter
| Product Parameter | |
| Motor power | 5.2Kw |
| Power supply | 380V/50Hz (Can make according your voltage) |
| X axis maximum torque | 2000N/m×3=6000N/m |
| Y axis feed stroke | 0~220mm |
| Maximum diameter of roller mold | 300mm |
| Processing profile range | Height 150× Width 150mm |
| Roller diameter | 60/mm (Can be design according need) |
| Min processing radius | 100mm( inside ) one-time bending (related to the actual size of the material) |
| Y axis cylinder thrust | 20 ton |
| Y axis cylinder positioning accuracy | ±0.1mm |
| Overall dimension | Operate table: 500*510*1500mm |
| Weight about | 1000kg |

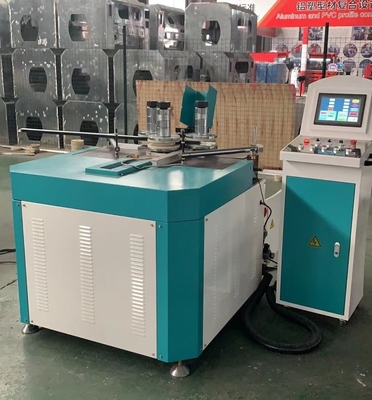

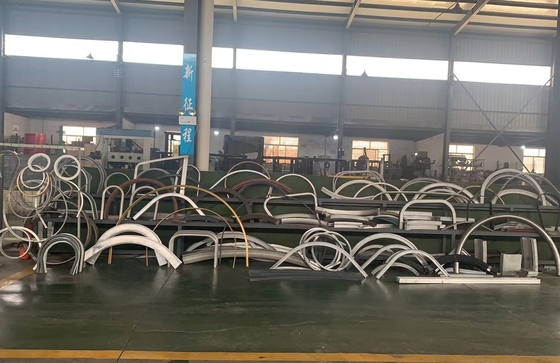

3. Mechanical details and after working samples
3.Other products
4. Our services
1. Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. What are the functions?
2. What are the advantages ?
3. Are there training instructions?
4. How long is the warranty?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
