Product Details:
|
| Power Supply: | 380V/50Hz | Working Pressure: | 0.6~0.8MPa |
|---|---|---|---|
| Profile Processing Height: | 160mm | Power: | 3KW |
| Function: | Crimping Aluminium Corner | Suitable Industry: | Aluminium Windows And Doors Making |
| Highlight: | 160mm corner crimping machine,3 kw corner crimping machine,semi automatic aluminium corner crimping machine |
||

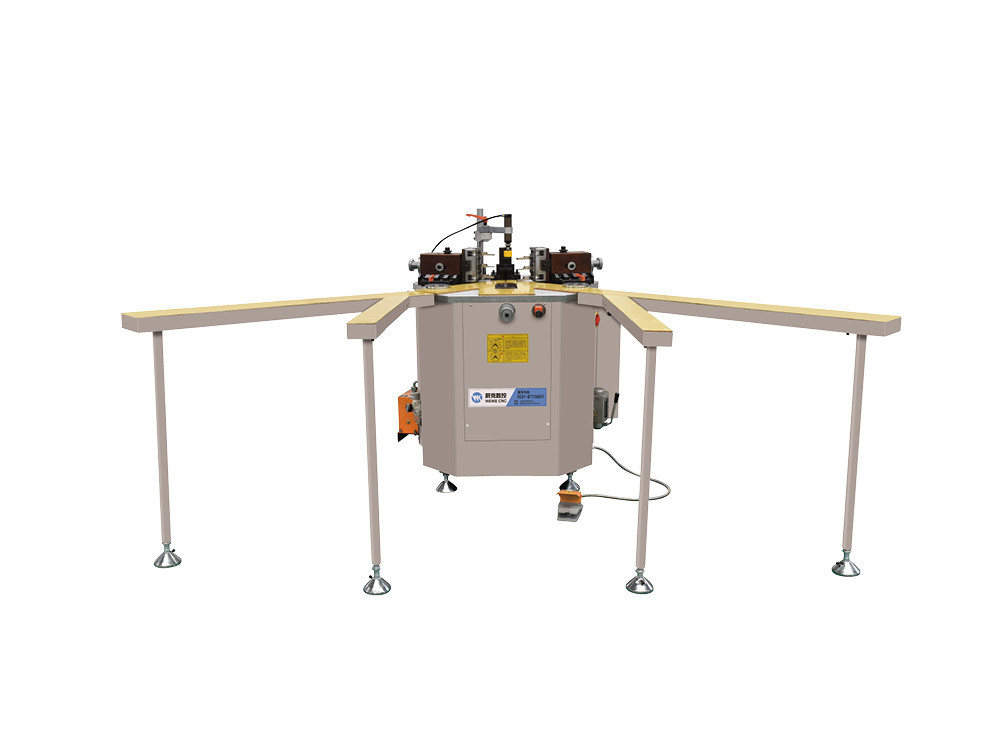

1.1 This machine is a special equipment for the production of high-grade doors and windows, and is suitable for 90-degree angle connection of corner structure aluminum doors and windows.
1.2 The power is controlled by the hydraulic system, and the oil tank adopts the circulating air cooling device,which makes the work stable and reliable.
1.3 The steel synchronous feed of left and right punch can avoid the useless deformation in the process of forming Angle and make the connection of window Angle more firm.
1.4 Synchronous feed mechanism, using counter to adjust the breaking depth of Angle knife to make the machine easy to adjust.
1.5 It is more convenient to use lifting device of locating block to put and take profile. It can be equipped with a single multi- point Angle cutter, so that the heat insulation broken bridge aluminum doors and Windows Angle more reliable.
| Product Parameter | |
| Input power | 3kw (horizontal air cooling) |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Rated pressure | 20MPa |
| Total crimping pressure | 48KN |
| Air consumption | 2L/min |
| Processing profile height (maximum) | 160 mm |
| Dimensions | 900×1200×1300mm |
1. Other products
2.Details
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
1. What's the delivery time for machines?
Our delivery time is 15 days after getting deposit, customized machines should confirm with our sales persons.
2.What we can do if your machines have problems?
1).24 hours on line service each day, free technical support.
2) We can send you free components to you if your machines are in guarantee time.
3) We can send our engineers to repair your machines
3.Can you provide machine operation training?
1) Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
2)Machine Operate Manual Will Be Provided .Machine Operate Video Will Be Provided
