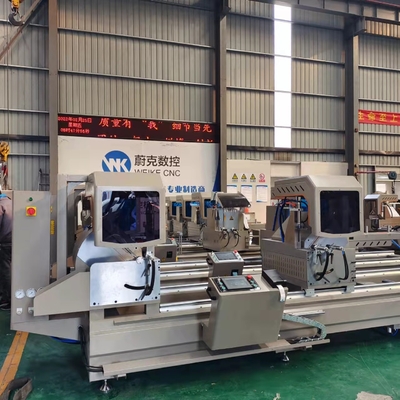

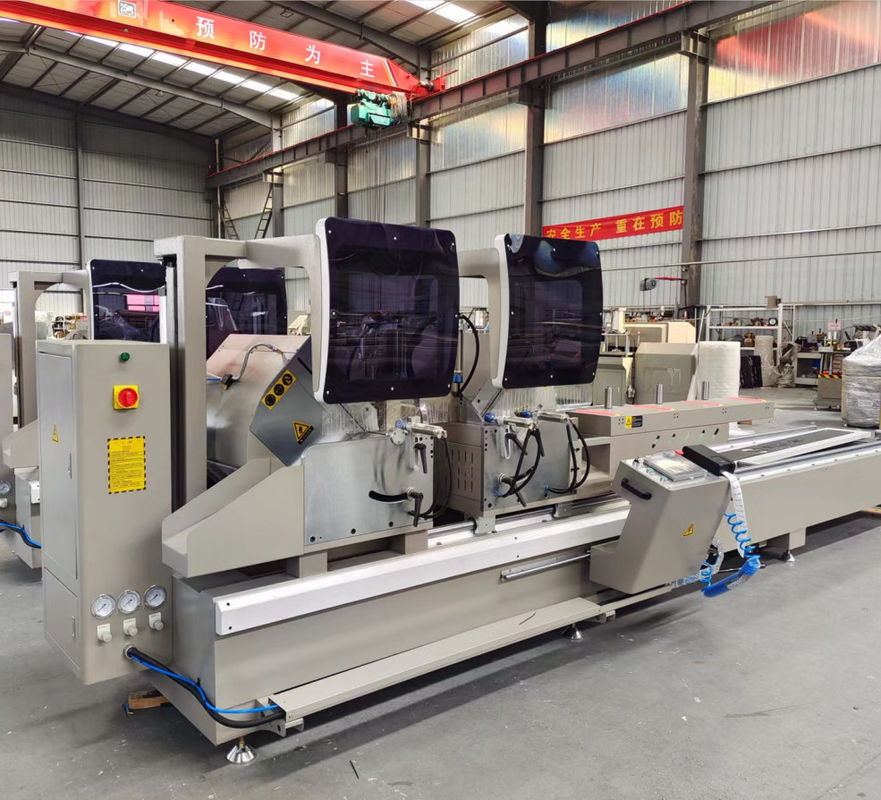

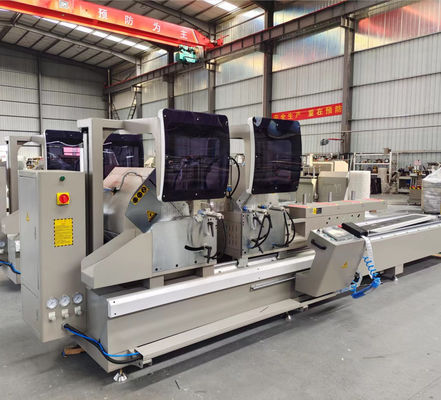

500mm CNC Double Head Cutting Saw

Large Image : 500mm CNC Double Head Cutting Saw

Product Details:

Place of Origin:	China
Brand Name:	WEIKE CNC
Certification:	CE ISO
Model Number:	WJM-CNC-500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	9200 USD
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	30 Sets / Month

Contact Now

500mm CNC Double Head Cutting Saw

Description

Power Supply:	380V/50HZ (Customized)	Power:	5.15KW
Air Pressure:	0.6~0.8MPa	Rotating Speed:	2800r/min
Saw Blade:	Diameter 500mm	Cutting Angle:	45 And 90 Degree
Overall Dimension:	580015001700mm

Double-head CNC automatic cutting saw is used for cutting of aluminum and PVC/UPVC profile. The cutting saw could cut 45°and 90° edge, and common type and digital display type available. And different cutting scales could be customized as per requirements.

1. Main Feature

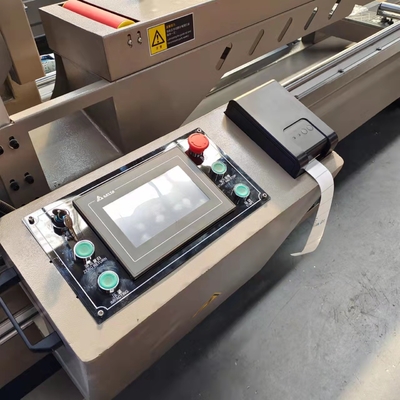

It is used for cutting aluminum alloy doors and windows, as well as facade profiles. Uses a numerical control unit to accurately display the length of the cutting profile. High-precision spindle ensures stable concentricity of the saw blade. Gas-liquid cushioning cylinder ensures smooth feed rate regulation and stable movement. Automatically lifting protective hood for safe and comfortable work.The feeding system uses a pair of imported linear guides with high precision and long life.

2. Update Saw During Production:

3. Double Head Mitre Saw Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Contact Us For More Information:
