Product Details:
|
| Main Moter Power: | 2.2KW | Color: | Grey With Black |
|---|---|---|---|
| Saw Blade Diameter: | 600mm | Cutting Angle: | 45 Degree And 90 Degree |
| English Manual: | Provide | Video Training: | Provide |
| Highlight: | 600mm Double Head Mitre Saw Machine,Double Head Mitre Saw Machine 2.2KW,2.2KW Aluminum Profile Automatic Mitre Saw |
||

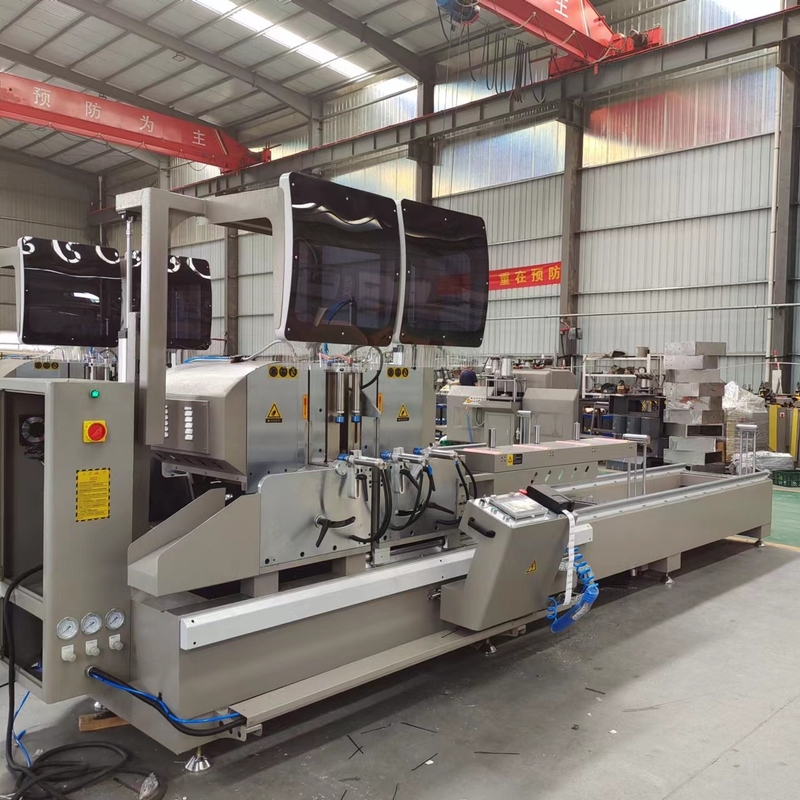

Front blade sawing machine, Double-head CNC automatic cutting saw is used for cutting of aluminum and PVC/UPVC profile. The cutting saw could cut 45°and 90° edge, and common type and digital display type available. And different cutting scales could be customized as per requirements.
● Used for reducing aluminum alloy doorways and windows, curtain wall profiles.

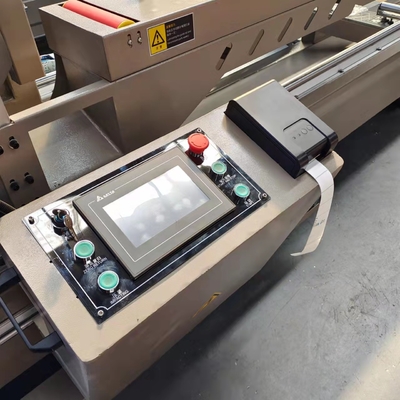

● It adopts numerical manipulate tool to appropriately show the duration of the reduce profile.
● The excessive-precision spindle makes the noticed blade rotate stably.
● The gas-liquid damping cylinder realizes uniform feed pace law and solid movement.
● The computerized lifting protecting cowl makes paintings secure and convenient.
● The feed device adopts imported linear manual pair, which has excessive precision and lengthy life.
2. Technical Parameter
● Air pressure: 0.6~0.8MPa
● Motor rotary speed: 2800r/min
● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
● Power supply: 380V/50Hz (Can make according your voltage)
● Saw blade specification: φ500 / φ600
● Cutting angle: 90°45°
● Cutting length: 290~6000mm
● Overall dimension: 5800 x 1500 x 1700mm
● Weight about: 1650kg
Option:
| 1 | Saw Blade: 500/550/600mm |
| 2 | Printer |
| 3 | Connect with windows design software |
| 4 | Main Spindle and Motor Option |
| 5 | Cutting length Option |
| 6 | Have different machine frame |
|
|
||
|
|
||
|
|
||
|
|
|
|
|
|
||
|

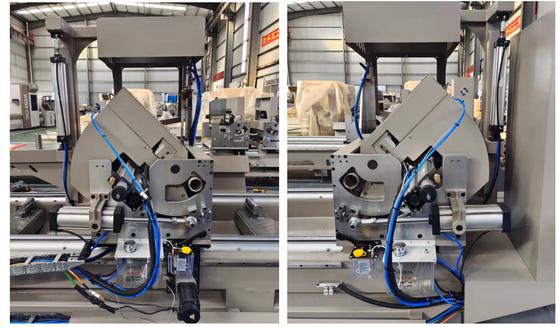

Right head and left head have own lubrication, so oil can be more average |
||
|
