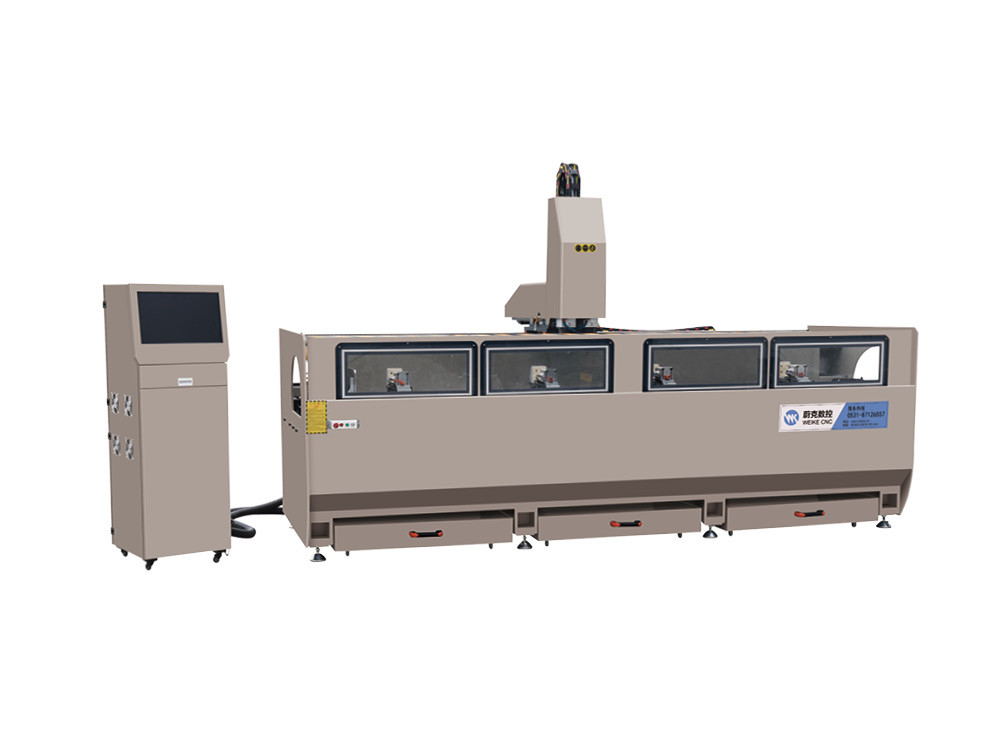

PRODUCT DESCRIPTION
Main Feature
● it's appropriate for the process of spherical holes, slot holes, key holes, special-shaped holes of business metal alloy profiles, doors ANd windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and different processes.
● the most shaft adopts an cool main shaft with an influence of 2×6KW and a speed of 0~18000 revolutions/min. it's high precision, sensible safety and high reliability.
● Equipped with skilled CAD-CAM programming software. Automatic conversion of processing G codes, easy operation, high efficiency, and low labor intensity.
● The work table is turned over 180°, -90°~0°~+90°, and therefore the profile is processed on 3 sides in one clamping. once process deep through holes (shaped holes), deep hole processing can be achieved by turning the worktable to boost potency and sensible quality.
● the automated pump oil offer system is adopted, and the cutter adopts a system-controlled spray cooling device.
● the most components of the machine adopt steel structure and every one bear aging treatment
Main Specification and Technical Paramete
|
Powersupply
|
Power
|
Air pressure |
Rotating speed |
Y-axte speed |
ZttfrS
Z-axis speed
|
X-axis speed
|
Overal dimension |
| 380V/50HZ |
14.5KW |
0.6~0.8/MPa |
--------------M ]
18000/min
|
400am |
300mm |
3200mm |
4000x2000x 2600mm | |
|

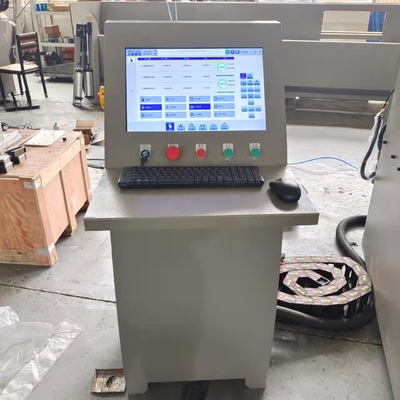

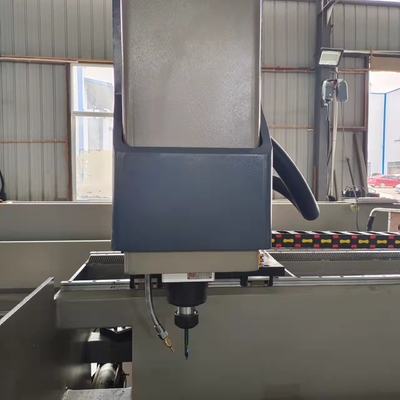

Machine Details
Company Introduction
Shandong Weike CNC Machinery Co., Ltd. is a well-known domestic manufacturer specializing in the development,
production and sales of aluminum doors and windows and curtain wall equipment. It is the most large-scale and
industrialized production enterprise in the industry.
The company has large-scale production workshops and strong mechanical processing capabilities, a high-quality
scientific research team and a high-tech production team. The company has a strong R&D force, a complete product
system, and insists on independent innovation to continuously improve the technology and practicability of the products.
The company has a number of offices in China, forming a one-stop integrated service system integrating product
research and development, production, sales and service. The company adheres to the development concept of "striving
for progress, pursuing excellence", continuously strengthens the core competitiveness of the industry, strives to achieve
leapfrog development, and is committed to building a world-class professional supplier serving the building energy-saving
doors and windows industry.
To adapt to standards, to adapt to competition, to adapt to needs, to serve the industry, to serve customers, and to serve
the future, the company will welcome you with a new concept.
Machine Delivery
Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation.
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
