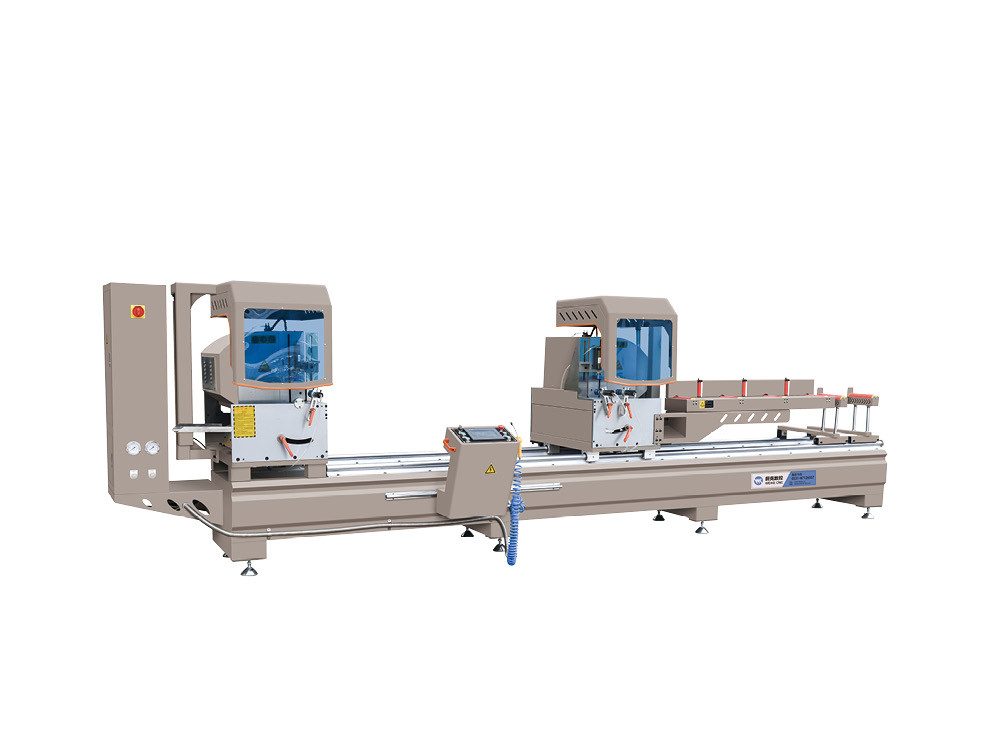

Double-head CNC automatic cutting saw is used for cutting of aluminum and PVC/UPVC profile. The cutting saw could cut 45° edge, and common type and digital display type available. And different cutting scales could be customized as per requirements.
Main Feature
●It is used for large-scale 45°cutting of aluminum alloy doors and windows and curtain wall profiles.
●Using CNC design, it can realize automatic cut-to-length blanking for materials of different specifications.
●High-precision imported motor is directly connected to the main shaft to make the saw blade rotate stably.
●The saw blade adopts high-quality saw blade, cutting without burrs, and the effect is stable and lasting.
●The high-end gas-liquid damping cylinder realizes uniform feed speed regulation and smooth movement.
●The automatic lifting protective cover makes work safe and convenient, and the automatic lifting mechanism
eliminates the need to move the material support frame more convenient.
●The feed system adopts imported linear guide pair, which has high precision and long life.
|
Power supply
|
Power
|
Rotating speed
|
Operation air pressure
|
Blade
specification
|
Max cutting length
|
Cutting angle
|
Cutting height
|
Cutting width
|
Dimension |
|
380V/50Hz
|
3KW×2
|
2800r/mln |
0.5~0.8MPa
|
Φ550×Φ30×4.4mm
|
4200mm
|
45°
|
195mm
|
165mm
|
5800×1600×1700mm
|
Company Introduction
Shandong Weike CNC Machinery Co., Ltd. is a well-known domestic manufacturer specializing in the development,
production and sales of aluminum doors and windows and curtain wall equipment. It is the most large-scale and
industrialized production enterprise in the industry.
The company has large-scale production workshops and strong mechanical processing capabilities, a high-quality
scientific research team and a high-tech production team. The company has a strong R&D force, a complete product
system, and insists on independent innovation to continuously improve the technology and practicability of the products.
The company has a number of offices in China, forming a one-stop integrated service system integrating product
research and development, production, sales and service. The company adheres to the development concept of "striving
for progress, pursuing excellence", continuously strengthens the core competitiveness of the industry, strives to achieve
leapfrog development, and is committed to building a world-class professional supplier serving the building energy-saving
doors and windows industry.
To adapt to standards, to adapt to competition, to adapt to needs, to serve the industry, to serve customers, and to serve
the future, the company will welcome you with a new concept.
Machine Delivery
Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation.
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Contact Us For More Information:
Shandong Weike CNC Machinery Co., Ltd.
Add: Hongyu Technology Industrial Park, Changqing District, Jinan, Shandong, China
Sales Director: Emily
E-mail: info@jnfasca.com
Mobile/What's app : +86-155 5416 2658
