5500mm 3 Axis Milling Aluminum Machines Aluminium Door And Window Making Machine

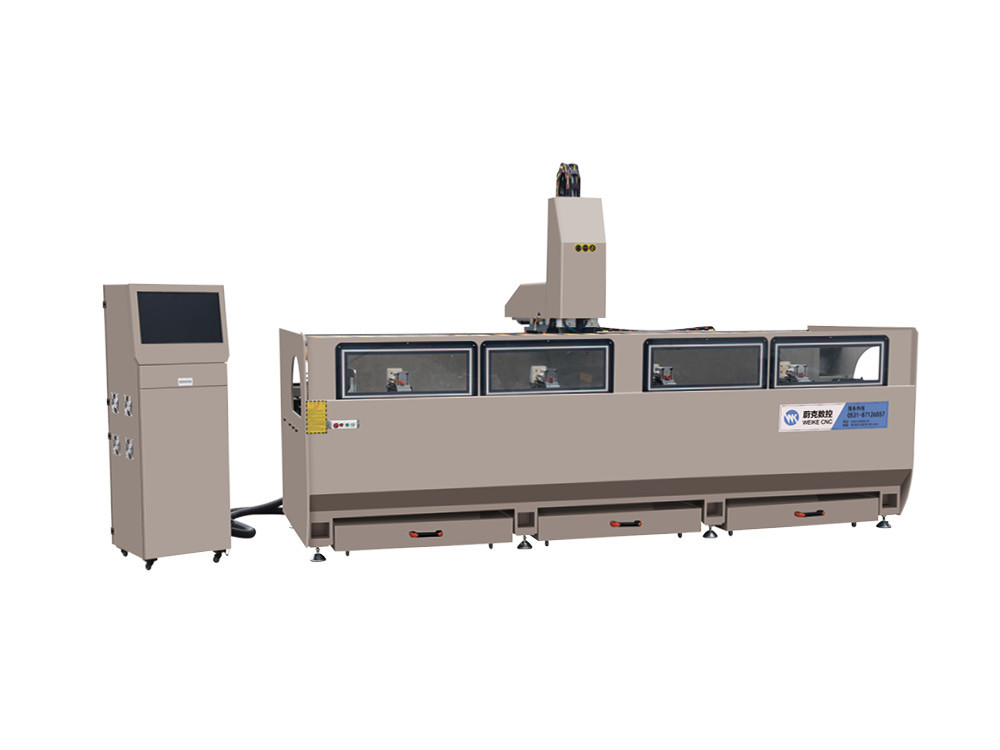

           Aluminum Profile 3 Axis CNC Drilling Milling Machine

                    Suitable Aluminum Length: within 5500mm

            Function: Drilling Milling Holes on Aluminum Material

1. Main Feature

● It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrialaluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.

● the most shaft adopts associate degree cool main shaft with an influence of 6KW and a rotation speed of 6000 to 18000 revolutions/min. it's high precision, smart safety and high reliability.

● The system is provided with skilled graphics library and profile library, that is straightforward to work and efficient.

● The work table is turned 180°, -90°~0°~+90°, the profile will be processed on 3 sides at one time. once process deep through holes (shaped holes), deep hole processing can be realised by turning the worktable to boost potency and good quality. .

● The automatic mercury oil provide system is adopted, and also the cutter adopts a system-controlled spray cooling device.

● the most components of the machine are made from steel structure, all of that have undergone vibration aging and stress relief treatment to make sure stable operation

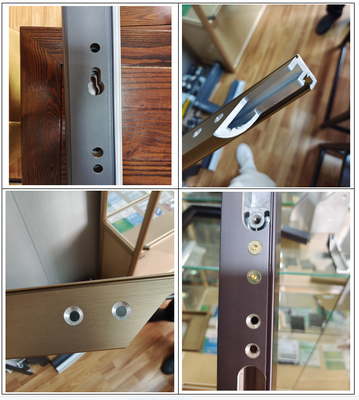

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

holes for windows and doors, curtain wall alloy profiles

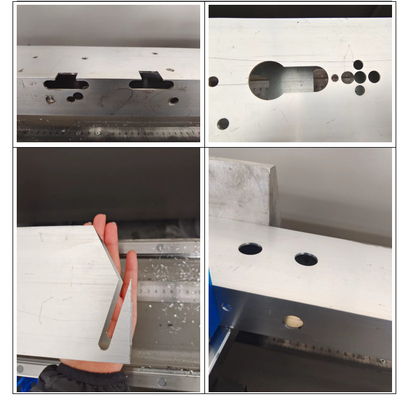

Milling all type holes on aluminium profile

3. Parameter

●X axis Journey: 3200mm          ●Y axis Journey: 400mm

● X axis Speed: 60M/min           ● Y/Z axis Speed: 40M/min

● Overall Size: 4000*2000*2600mm

4. Machine Details

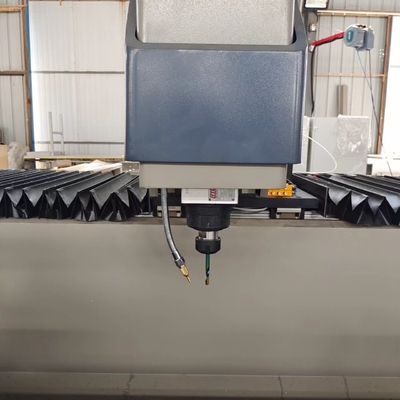

4.1 Main Spindle: 6KW electric spindle

4.2Fixture (Clamps)

4.3 Control Panel

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
