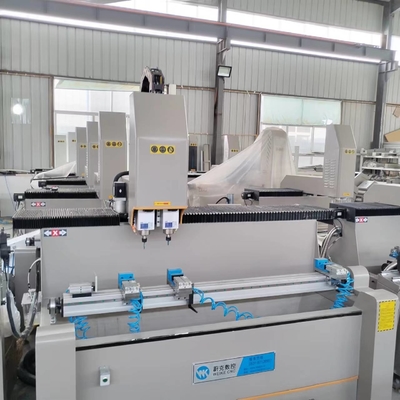

1500mm Double Head Drilling Aluminum Machines Aluminium 4 Axis Cnc Milling

Large Image : 1500mm Double Head Drilling Aluminum Machines Aluminium 4 Axis Cnc Milling

Product Details:

Place of Origin:	China
Brand Name:	WEIKE CNC
Certification:	CE ISO
Model Number:	WSZ2-CNC-1500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	7350 USD
Packaging Details:	Plywood Box
Delivery Time:	3-7 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50 Sets / Month

Contact Now

1500mm Double Head Drilling Aluminum Machines Aluminium 4 Axis Cnc Milling

Description

Power:	9.5KW	Air Pressure:	0.6~0.8MPa
Rotating Speed:	18000/min	X Axis Journey:	1500mm
Y Axis Journey:	300mm	Z Axis Journey:	280mm
Overall Dimension:	200018002300mm
Highlight:	1500mm Double Head Drilling Aluminum Machines , NC Double Head Drilling Machine 9.5KW , 9.5KW Aluminium 4 Axis Cnc Milling Machine

Double Head Aluminum Profile 3+1 Axes CNC Drilling Milling Machine

3 controlled axis machining centre with gas rotation of the work table to 0°/90°/180°

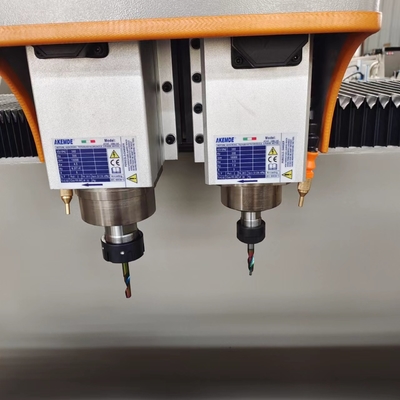

2 Spindle: One is for drilling edge Common holes, another is special for countersink Holes

Operating Area: 1500mm/ three200mm possibility (According your needed, opt for appropriate working area)

1500mm Double Head Drilling Aluminum Machines Aluminium 4 Axis Cnc Milling 0

The WSZ2 machining centre with three controlled axes and gas rotation of the table has been designed to hold out drilling and edge operations on atomic number 13 or steel profiles. Equipped as normal with minimum lubrication, double stop, manual half dozen location tool magazine and spindle with quick-release tool coupling. WSZ2 is that the solution that mixes compact operating dimensions and high machining performance.

varied configuration choices are accessible (automatic tool change, rigid tapping, adjustable rotation of the work table to intermediate angles, lubri-cooling), creating WSZ2 an answer which will be scaled to several completely different needs.

1. Main Feature

● mistreatment electrical spindle, high precision, high power, sensible safety and high reliability.

● The system adopts CNC management and supports the import of CAD graphics.

● appropriate for drilling, edge grooves, spherical holes, special-shaped holes, key holes, countersinks, and slim door hinge holes, heaven and earth hinges, Wifa series, Bononi series, etcetera Slotting, excavation and different processing.

● The X-axis, Y-axis, and coordinate axis are driven by rack and screw, with stable transmission and high precision.

● The three-axis full servo motor will really realize the high efficiency and stability of the three-axis linkage.

● The work table is flipped on 3 sides and clamped at just the once to attain high process potency on three sides.

● Graphic programming is straightforward to operate, high in efficiency, and low aborning intensity.

2. Samples Holes After Working:

3. Parameter

Power Supply	220V, 380V, 415V, 440V...
Working pressure	0.6-0.8MPA
Total power	14.5KW
Option	Scanner
Control System	SYNTEC, LNC, Hans PA (Option)
Fixture	Option

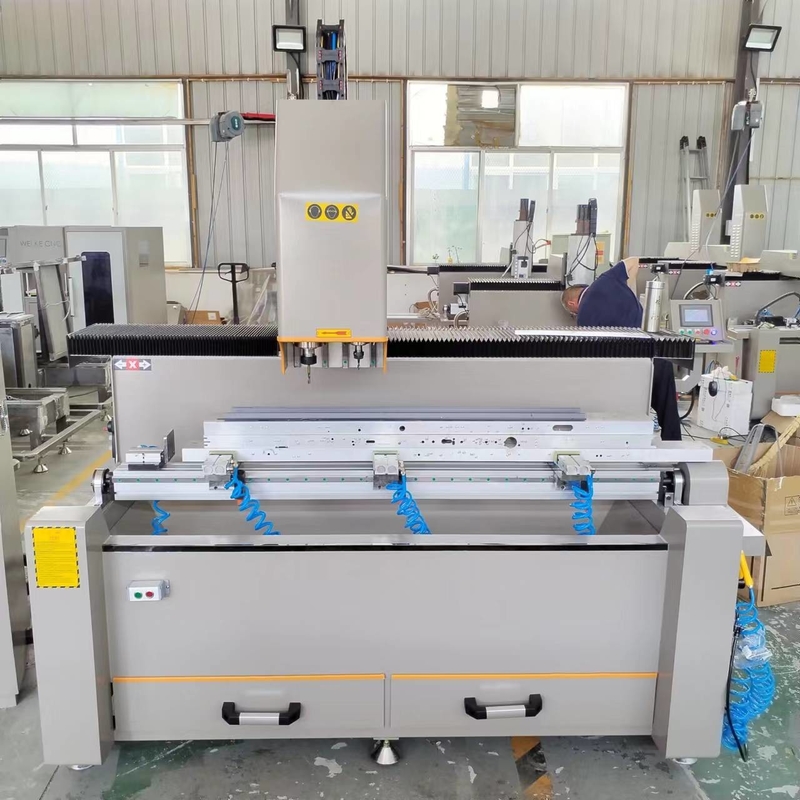

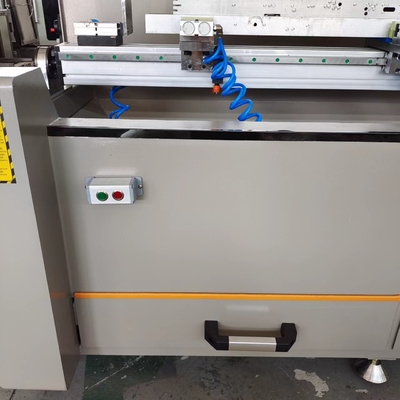

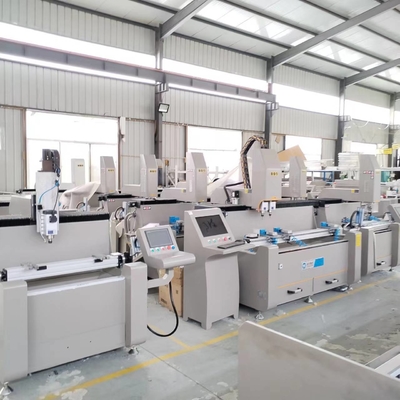

4. Alloy Milling Machine Detailed Photos

1500mm Double Head Drilling Aluminum Machines Aluminium 4 Axis Cnc Milling 6

1500mm Double Head Drilling Aluminum Machines Aluminium 4 Axis Cnc Milling 7

1500mm Double Head Drilling Aluminum Machines Aluminium 4 Axis Cnc Milling 8

4. Certification

5. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
