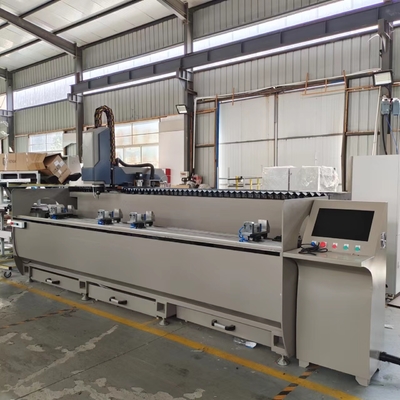

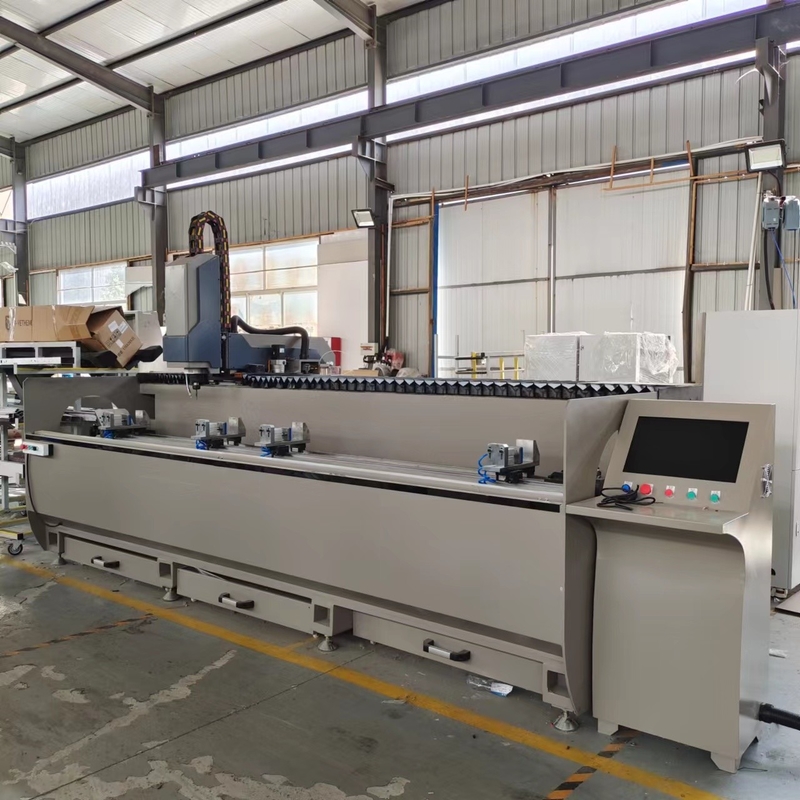

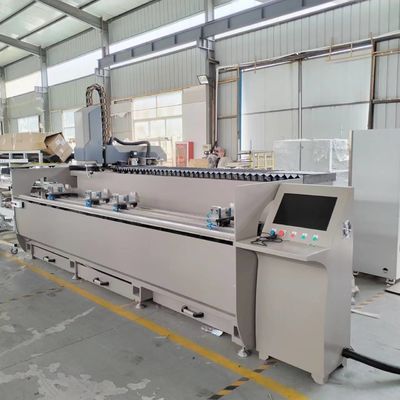

3+1 Axis CNC Drilling Milling Machine 3.2m Aluminum Automatic Cnc Drilling

           Aluminum Profile 3 Axis CNC Drilling Milling Machine

                    Suitable Aluminum Length: within 3200mm

            Function: Drilling Milling Holes on Aluminum Material

WSZ-CNC Series is a fully automated processing center with 3 interpolating axes for the machining

of aluminium profiles with a cross section of 130×150 mm (If worktable no need turn, section will be large)

A 6kw, water-cooled electrospindle allows the production of custom machined and milled elements

Highlights

• Multi-piece pendulare ( two operating spaces, four pieces) machining

• operating area X axes up to 6000 millimeter (Optiom: will opt for 5500mm 3000mm 3200mm etc)

1. Main Feature

● It is appropriate for the processing of spherical holes, slot holes, key holes, special-fashioned holes of industrialaluminum alloy profiles, doorways and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, aircraft engraving and different processes.

● The main shaft uses an air-cooled electric main shaft with an output of 6 kW and a rotating speed of 6000 to 18000 rpm. It has high precision, good security and high reliability.

● The control system is equipped with a professional graphics library and a profile library, which is easy to use and efficient.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The automatic mercury oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.

● The main parts of the machine tool are made of steel structure, all of which have undergone vibration aging and stress relief treatment to ensure stable operation

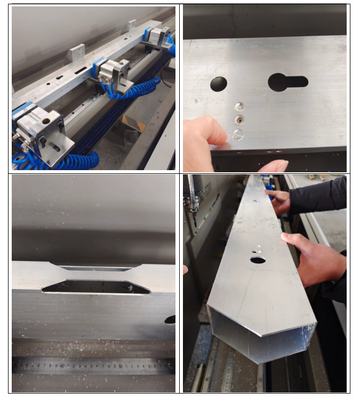

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

holes for windows and doors, curtain wall alloy profiles

Milling all type holes on aluminium profile

3. Parameter

●X axis Journey: 3200mm        ● Overall Size: 4000*2000*2600mm

●Y axis Journey: 400mm          ● Y/Z axis Speed: 40M/min

● X axis Speed: 60M/min         ●Y axis Journey: 400mm

●Z Axis Journey: 300mm

4. Machine Details

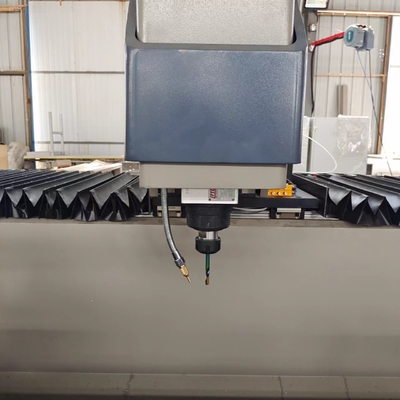

4.1 Main Spindle: 6KW electric spindle

4.2Fixture (Clamps)

4.3 Control Panel

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
