2500mm CNC Drilling Milling Machine Aluminum Profile CNC

           Aluminum Profile 3 Axis CNC Drilling Milling Machine

            Function: Drilling Milling Holes on Aluminum Material

WSZ-CNC Series is a completely computerized processing middle with three interpolating axes for the machining of aluminium profiles with a go phase of 130×a hundred and fifty mm (If worktable no want turn, phase can be large) A 6kw, water-cooled electrospindle permits the manufacturing of custom machined and milled elements

Highlights

• Multi-piece pendulare ( 2 running areas, four pieces) machining

• Working region X axes as much as 6000 mm (Optiom: Can select 5500mm 3000mm 3200mm etc)

1. Main Feature

● it's appropriate for the process of spherical holes, slot holes, key holes, special-shaped holes of industrialaluminum alloy profiles, doors and windows, curtain wall aluminium alloy profiles, and aluminum profile milling, chamfering, plane engraving and alternative processes.

● The main shaft adopts an air-cooled electric main shaft with a power of 6KW and a rotation speed of 6000 to 18000 revolutions/min. It has high precision, good safety and high reliability.

● The control system is equipped with a professional graphics library and a profile library, which is easy to use and efficient.

● The working table is rotated 180°, 90°~0°~+90°, the profile can be processed on three sides at the same time. When processing deep holes (shaped holes), deep hole processing can be performed by rotating the work table to improve efficiency and good quality.

● The main parts of the machine tool are made of steel structure, all of which have undergone vibration aging and stress relief treatment to ensure stable operation

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

holes for windows and doors, curtain wall alloy profiles

Milling all type holes on aluminium profile

3. Parameter

●X axis Journey: 3200mm

●Y axis Journey: 400mm

●Z Axis Journey: 300mm

● X axis Speed: 60M/min

● Y/Z axis Speed: 40M/min

● Overall Size: 4000*2000*2600mm

4. Machine Details

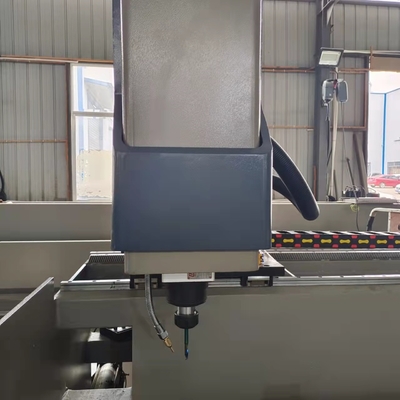

4.1 Main Spindle: 6KW electric spindle

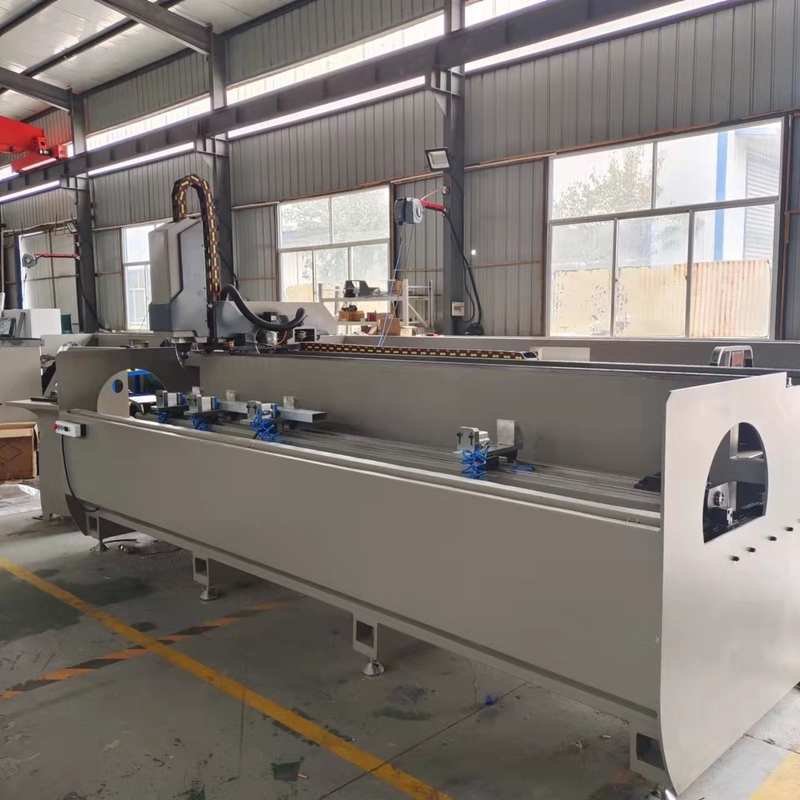

4.2Fixture (Clamps)

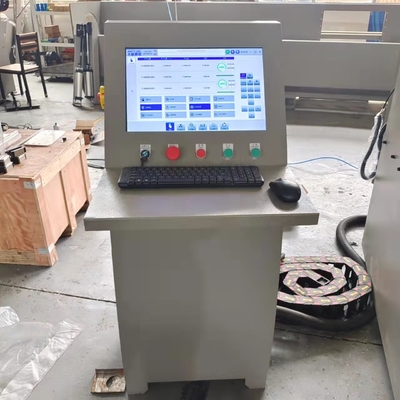

4.3 Control Panel

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software package user manual still as Chinese and English videos

2. Before delivery: Face to face video coaching on-line between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
