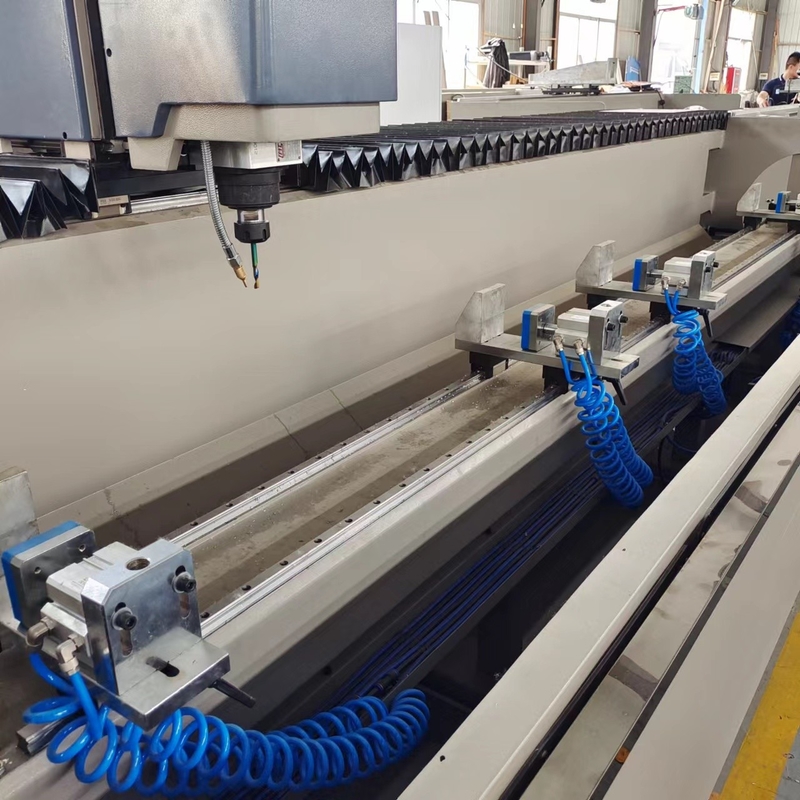

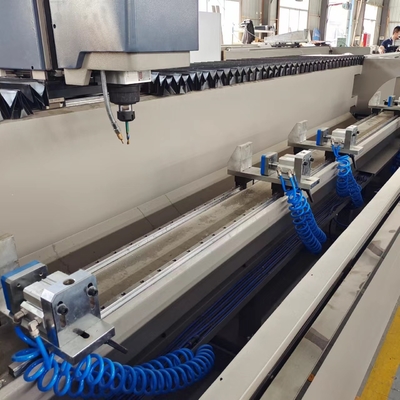

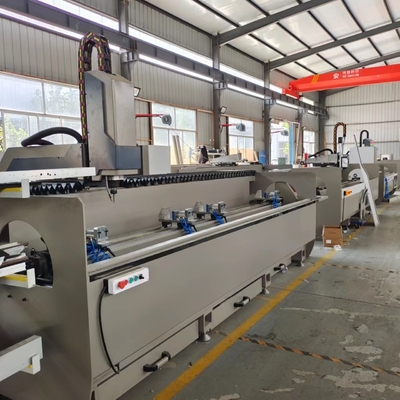

3000mm CNC Drilling Aluminum Machine 4 Axis Cnc Machining Center

           Aluminum Profile 3 Axis CNC Drilling Milling Machine

            Function: Drilling Milling Holes on Aluminum Material

WSZ-CNC Series is a fully automated processing center with 3 interpolating axes for the machining

of aluminium profiles with a cross section of 130×150 mm (If worktable no need turn, section will be large)

A 6kw, water-cooled electrospindle allows the production of custom machined and milled elements

Highlights
• Multi-piece pendulare ( 2 working areas, 4 pieces) machining
• Working area X axes up to 6000 mm (Optiom: Can choose 5500mm 3000mm 3200mm etc)

1.  This CNC Drilling Milling Machine Main Feature

● It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrialaluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.

● The main shaft uses an air-cooled electric main shaft with an output of 6 kW and a rotating speed of 6000 to 18000 rpm. It has high precision, good security and high reliability.

● The control system is equipped with a professional graphics library and a profile library, which is easy to use and efficient.

● The working table is rotated 180°, 90°~0°~+90°, the profile can be processed on three sides at the same time. When processing deep holes (shaped holes),
deep hole processing can be performed by rotating the worktable to improve efficiency and good quality.

● It uses an automatic mercury oil supply system, and the cutter adopts a spray cooling device controlled by the system.

● The main parts of the machine tool are made of steel structure, all of which have undergone vibration aging and stress relief treatment to ensure stable operation

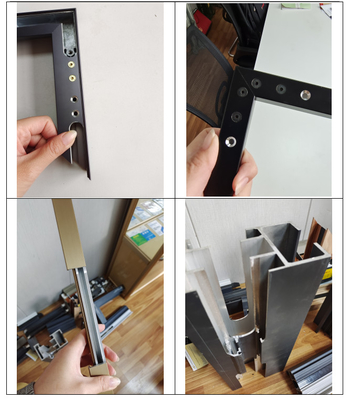

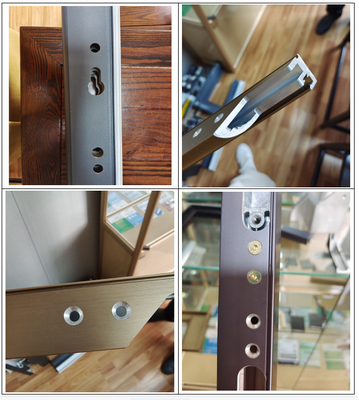

2.  Samples Holes After Working:

Round Holes, Slotted Holes, Keyholes, Water Slots, Square Holes, Special Shaped

holes for windows and doors, curtain wall alloy profiles

Milling all type holes on aluminium profile

3. Parameter

●X axis Journey: 3200mm

● X axis Speed: 60M/min

● Y/Z axis Speed: 40M/min

●Y axis Journey: 400mm

●Z Axis Journey: 300mm

● Overall Size: 4000*2000*2600mm

4. Machine Details

4.1 Main Spindle: 6KW electric spindle

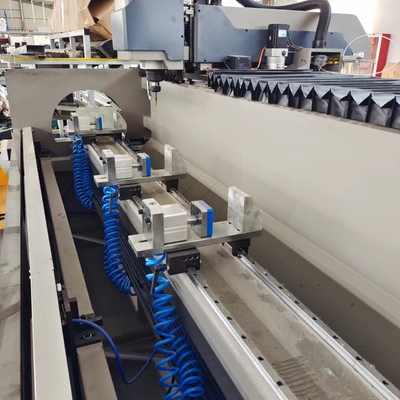

4.2Fixture (Clamps)

4.3 Control Panel

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you the way to set up and alter system. Also we are able to on-line manage your system to expose you the way to work.
