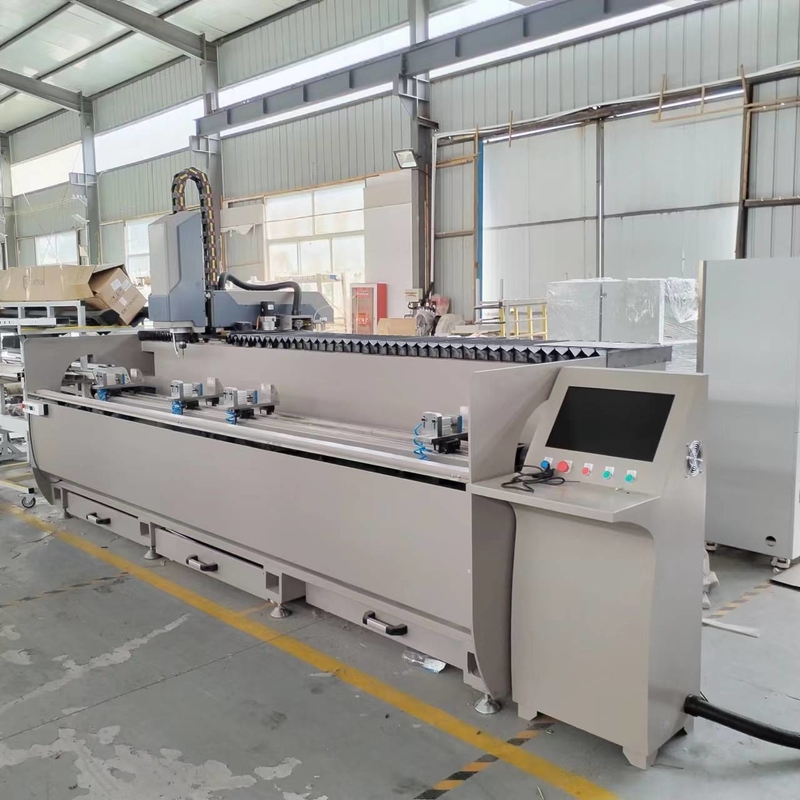

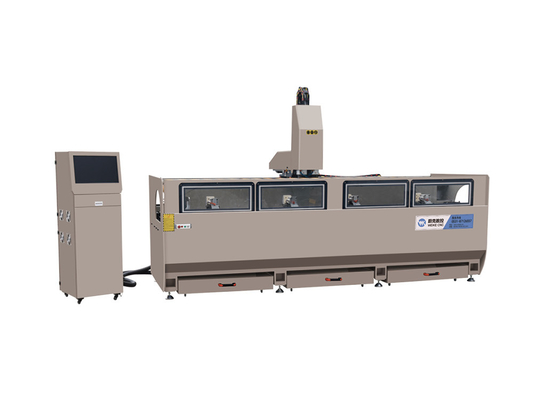

CNC Milling Aluminum Machine 4 Axis Machining Centre Alloy

           Aluminum Profile 3 +1 Axes CNC Milling Machine

            Function: Drilling Milling Holes on Aluminum Material

WSZ-CNC Series is a fully automated processing center with 3 interpolating axes for the machining

of aluminium profiles with a cross section of 130×150 mm (If worktable no need turn, section will be large)

A 6kw, water-cooled electrospindle allows the production of custom machined and milled elements

Highlights
• Multi-piece pendulare ( 2 working areas, 4 pieces) machining
• Working area X axes up to 6000 mm (Optiom: Can choose 5500mm 3000mm 3200mm etc)

1.  This CNC Drilling Milling Machine Main Feature

● It is appropriate for the processing of spherical holes, slot holes, key holes, special-fashioned holes of industrialaluminum alloy profiles, doorways and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, aircraft engraving and different processes.

● the most shaft adopts associate cool main shaft with an influence of 6KW and a rotation speed of 6000 to 18000 revolutions/min. it's high precision, smart safety and high reliability.

● The control system is equipped with professional graphics library and profile library, which is easy to operate and efficient.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The computerized mercury oil deliver gadget is adopted, and the cutter adopts a gadget-managed spray cooling device.

● The principal components of the system device are made from metallic structure, all of that have gone through vibration growing old and pressure alleviation remedy to make certain strong operation

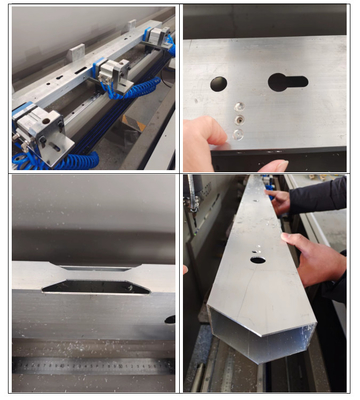

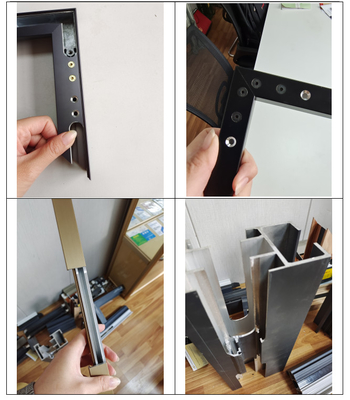

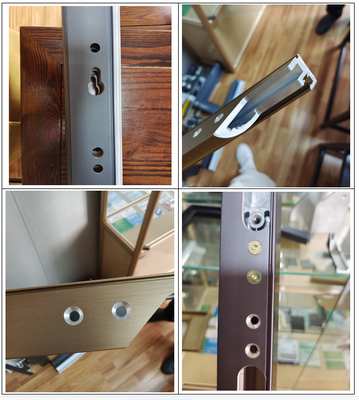

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

holes for home windows and doors, curtain wall alloy profiles

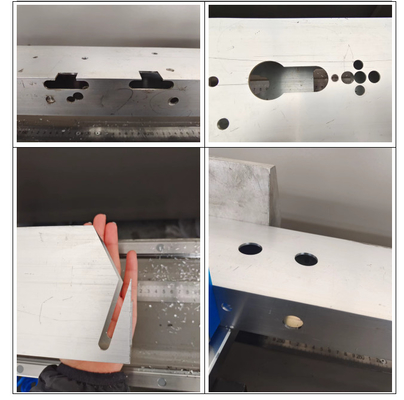

Milling all kind holes on aluminium profile

3. Parameter

●X axis Journey: 3200mm

●Y axis Journey: 400mm

●Z Axis Journey: 300mm

● X axis Speed: 60M/min

● Y/Z axis Speed: 40M/min

● Overall Size: 4000*2000*2600mm

4. Machine Details

4.1 Main Spindle: 6KW electric spindle

4.2Fixture (Clamps)

4.3 Control Panel

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
