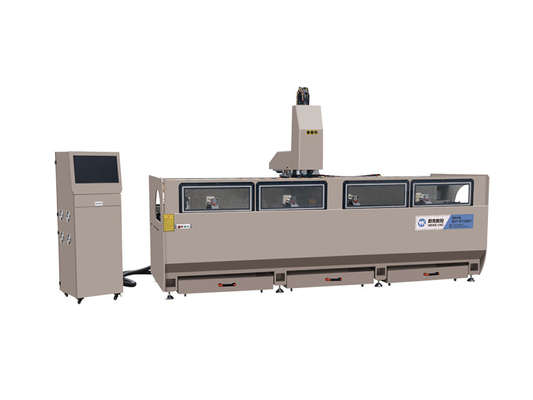

Pneumatic Rotation CNC Drilling Milling Machine 3 Axis Machining Centre

           Aluminum Profile 3 +1 Axes CNC Milling Machine

 3 controlled axis machining centre with pneumatic rotation of the work table to 0°/90°/180°

The machining center of the WSZ series with 3 controlled axes and pneumatic table rotation is designed for drilling and milling work on aluminum or steel profiles. Equipped as standard with minimum quantity lubrication, double stop, 6x manual tool magazine and spindle with quick tool coupling. WSZ sesies is the solution that combines compact working dimensions and high processing performance.

Numerous configuration choices are out there (automatic tool change, rigid tapping, adjustable work table rotation to intermediate angles, lubrication), creating the atomic number 13 mill an answer which will be scaled to several completely different needs..

1.  This CNC Drilling Milling Machine Main Feature

● It is appropriate for the processing of spherical holes, slot holes, key holes, special-fashioned holes of industrialaluminum alloy profiles, doorways and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, aircraft engraving and different processes.

● The important shaft adopts an air-cooled electric powered important shaft with a energy of 6KW and a rotation velocity of 6000 to 18000 revolutions/min. It has excessive precision, properly protection and excessive reliability.

● The manipulate gadget is geared up with expert pictures library and profile library, which is straightforward to function and efficient.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The automatic mercury oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.

● The main parts of the machine tool are made of steel structure, all of which have undergone vibration aging and stress relief treatment to ensure stable operation

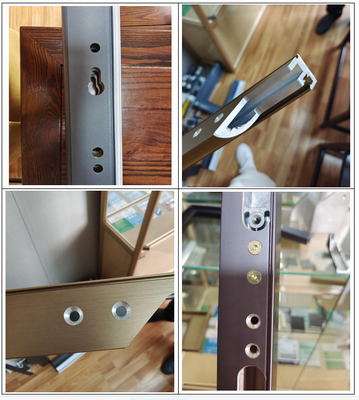

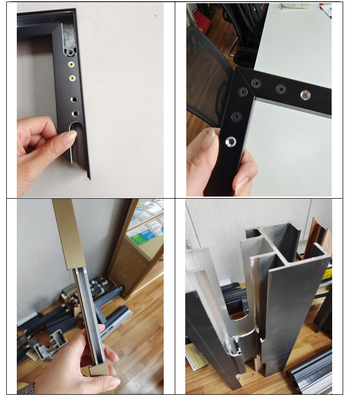

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

holes for windows and doors, curtain wall alloy profiles

Milling all type holes on aluminium profile

3. Parameter

●X axis Journey: 3200mm

●Y axis Journey: 400mm

●Z Axis Journey: 300mm

● X axis Speed: 60M/min

● Y/Z axis Speed: 40M/min

● Overall Size: 4000*2000*2600mm

4. Machine Details

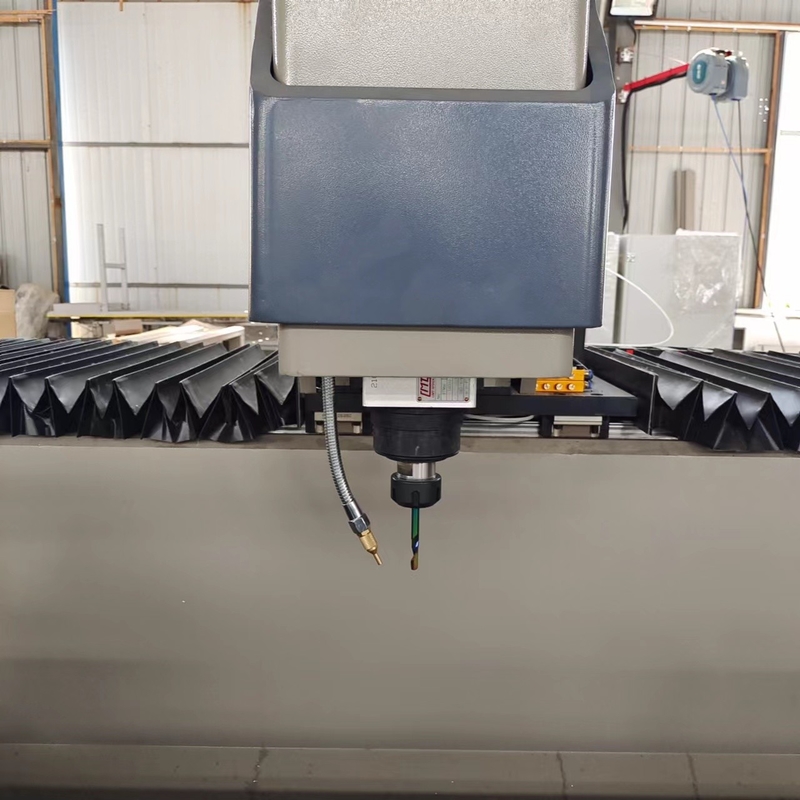

4.1 Main Spindle: 6KW electric spindle

4.2Fixture (Clamps)

4.3 Control Panel

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

2. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

3. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
