Product Details:
|
| Power Supply: | 380V/50HZ (Customized) | Power: | 9.5KW |
|---|---|---|---|
| Air Pressure: | 0.6~0.8MPa | Rotating Speed: | 18000/min |
| X Axis Journey: | 1500mm | Y Axis Journey: | 300mm |
| Z Axis Journey: | 280mm | Overall Dimension: | 2000*1800*2300mm |
| Highlight: | 1.5m Aluminium CNC Drilling Milling Machine,CNC Aluminium Drilling Milling Machine 50HZ,1.5m Aluminium Cnc Door Making Machine |
||

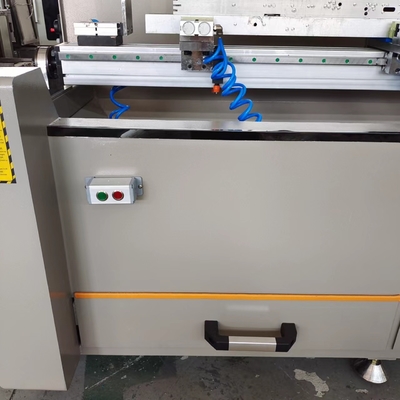

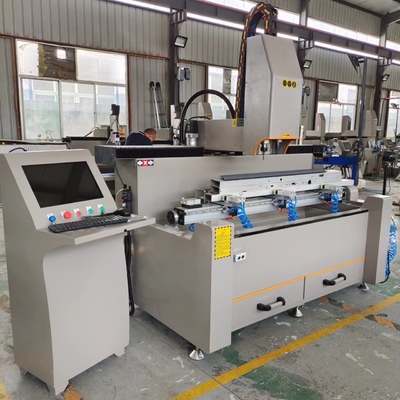

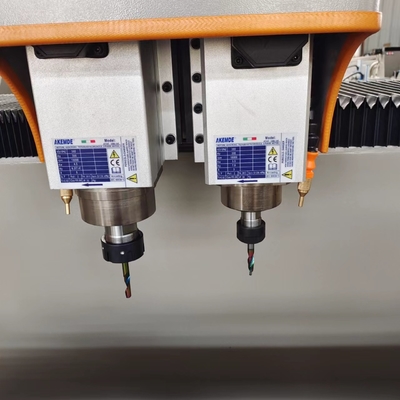

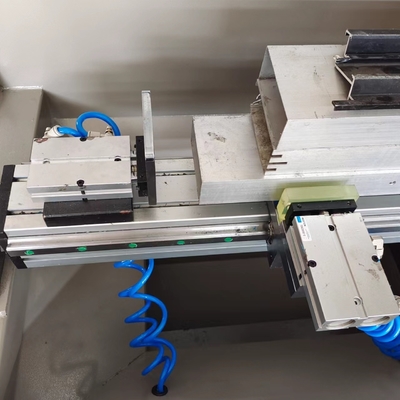

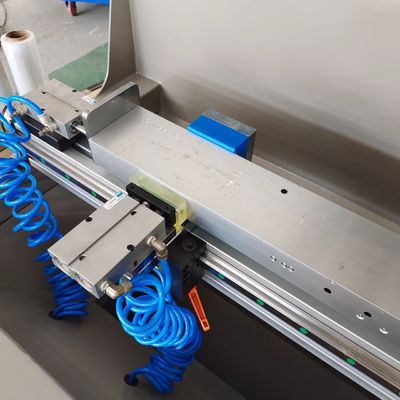

The WSZ2 machining centre with three controlled axes and gas rotation of the table has been designed to hold out drilling and edge operations on atomic number 13 or steel profiles. Equipped as customary with minimum lubrication, double stop, manual half-dozen location tool magazine and spindle with quick-release tool coupling. WSZ2 is that the solution that mixes compact operating dimensions and high machining performance.
various configuration choices are offered (automatic tool change, rigid tapping, adjustable rotation of the work table to intermediate angles, lubri-cooling), creating WSZ2 an answer that may be scaled to several completely different needs.
● The X-axis, Y-axis and Z-axis are rack and pinion driven, with stable transmission and high precision.
| Power Supply | 220V, 380V, 415V, 440V... |
| Working pressure | 0.6-0.8MPA |
| Total power | 14.5KW |
| Option | Scanner |
| Control System | SYNTEC, LNC, Hans PA (Option) |
| Fixture | Option |
