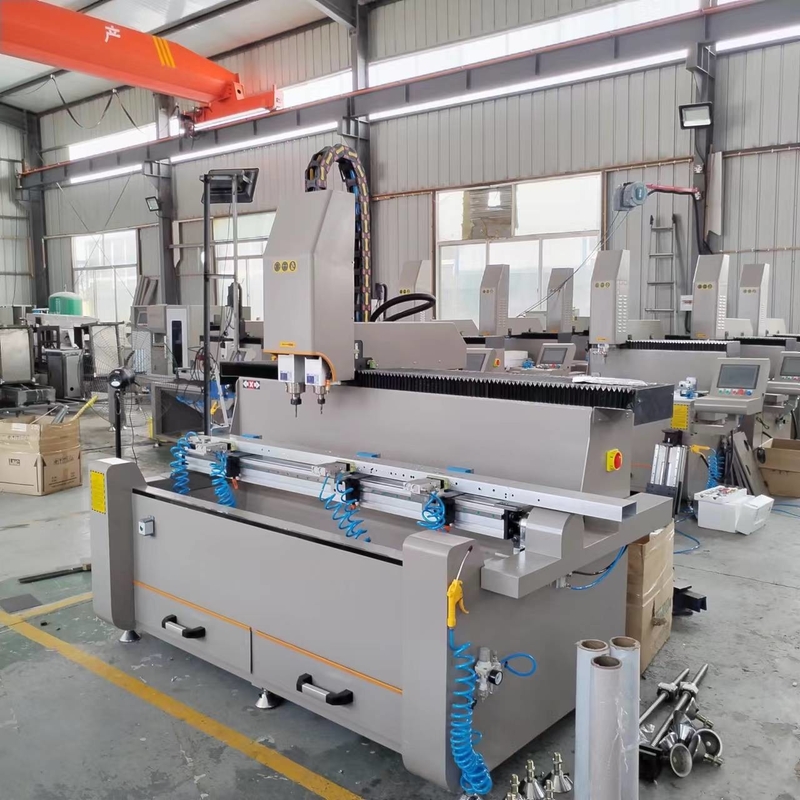

Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine

Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine
Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine

Large Image :  Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WSZ2-CNC-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 7350 USD
Packaging Details: Plywood Box
Delivery Time: 3-7 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50 Sets / Month
Contact Now

Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine

Description
Power: 9.5KW Air Pressure: 0.6~0.8MPa
Rotating Speed: 18000/min X Axis Journey: 1500mm
Y Axis Journey: 300mm Z Axis Journey: 280mm
Overall Dimension: 2000*1800*2300mm
Highlight:

Double Head Hole Drilling Machine

,

Double Head Hole Drilling Machine 300mm

,

300mm Aluminium Hole Punching Machine

  Double Head Aluminum Profile 3+1 Axes CNC Drilling Milling Machin

3 controlled axis machining centre with gas rotation of the work table to 0°/90°/180°

Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 0

The WSZ2 machining centre with three controlled axes and gas rotation of the table has been designed to hold out drilling and edge operations on atomic number 13 or steel profiles.



Equipped as customary with minimum lubrication, double stop, manual half-dozen location tool magazine and spindle with quick-release tool coupling.



WSZ2 is that the solution that mixes compact operating dimensions and high machining performance.



various configuration choices are offered (automatic tool change, rigid tapping, adjustable rotation of the work table to intermediate angles, lubri-cooling), creating WSZ2 an answer that may be scaled to several totally different needs.

Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 1
1. Main Feature
● Graphic programming is straightforward to operate, high in efficiency, and low aborning intensity.
● victimisation electrical spindle, high precision, high power, sensible safety and high reliability.
● appropriate for drilling, edge grooves, spherical holes, special-shaped holes, key holes, countersinks, and slender door hinge holes, heaven and earth hinges, Wifa series, Bononi series, and so forth Slotting, creating by removal and different processing.
● The system adopts CNC management and supports the import of CAD graphics.
● The X-axis, Y-axis, and coordinate axis are driven by rack and screw, with stable transmission and high precision.
● The three-axis full servo motor will really realize the high efficiency and stability of the three-axis linkage.
● The table is flipped on 3 sides and clamped at just the once to attain high process potency on three sides.
2.  Samples Holes After Working:
Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 2Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 3Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 4Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 5
3.  Parameter
Power Supply 220V, 380V, 415V, 440V...
Working pressure 0.6-0.8MPA
Total power 14.5KW
Option Scanner
Control System SYNTEC, LNC, Hans PA (Option)
Fixture Option

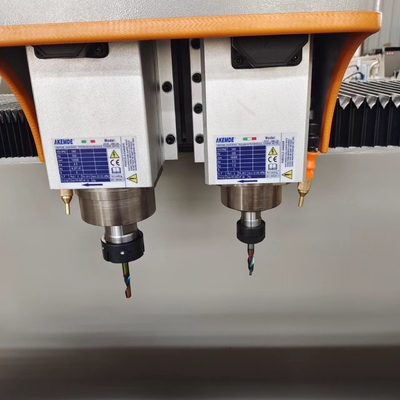

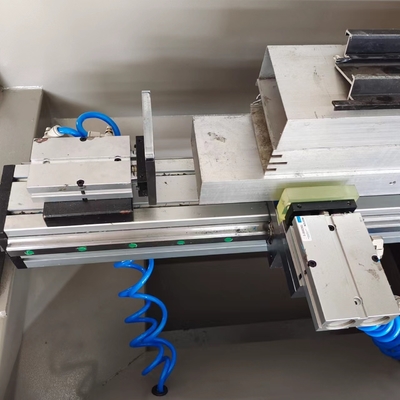

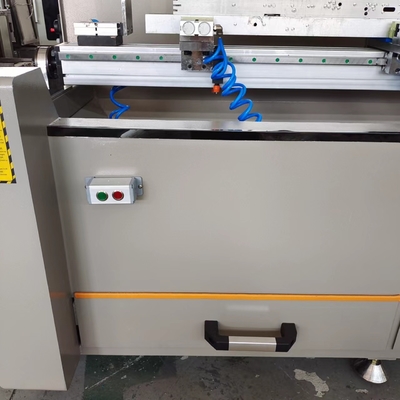

4. Alloy Milling Machine Detailed Photos

Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 6



Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 7



Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 8

4.  Certification

Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 9Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 10Double Head Hole Drilling Machine 300mm Aluminium Hole Punching Machine 11

5. Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
