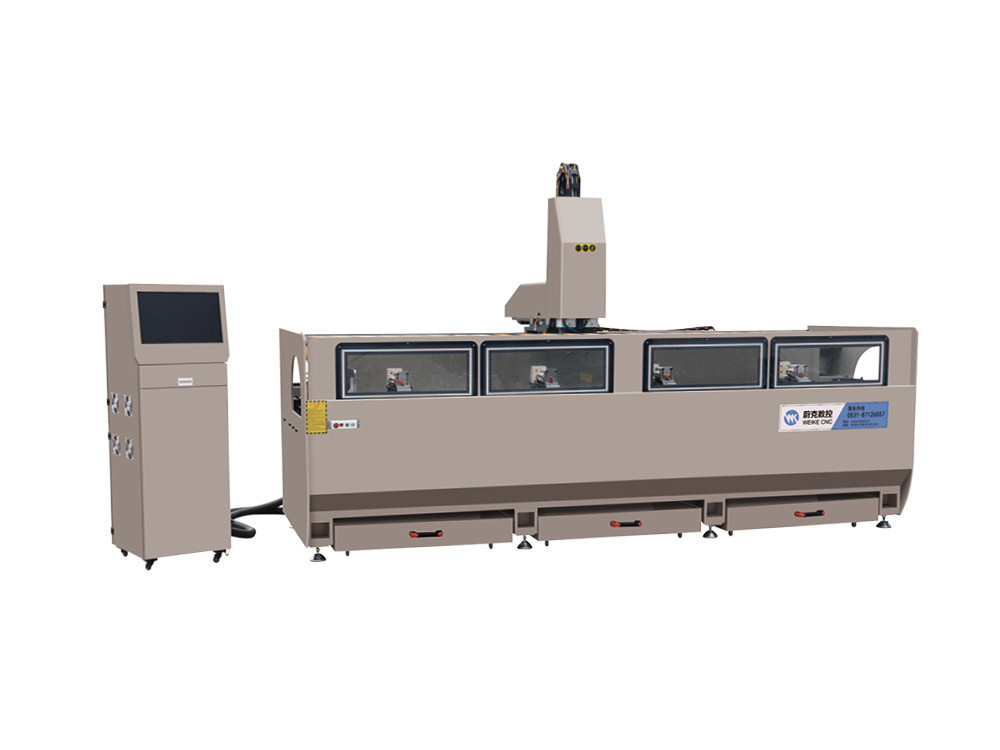

3200mm Double Head 3+1 Axes Hole Drilling Machine

3200mm Double Head 3+1 Axes Hole Drilling Machine
3200mm Double Head 3+1 Axes Hole Drilling Machine 3200mm Double Head 3+1 Axes Hole Drilling Machine 3200mm Double Head 3+1 Axes Hole Drilling Machine

Large Image :  3200mm Double Head 3+1 Axes Hole Drilling Machine

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WSZ2-CNC-3200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 14500 USD
Packaging Details: Plywood Box
Delivery Time: 3-7 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50 Sets / Month
Contact Now

3200mm Double Head 3+1 Axes Hole Drilling Machine

Description
Power: 14.5KW Air Pressure: 0.6~0.8MPa
Rotating Speed: 18000/min X Axis Journey: 3200mm
Y Axis Journey: 400mm Z Axis Journey: 300mm
Overall Dimension: 4000*2000*2600mm

  Double Head Aluminum Profile 3+1 Axes CNC Drilling Milling Machin

three managed axis machining centre with pneumatic rotation of the paintings desk to 0°/90°/180°

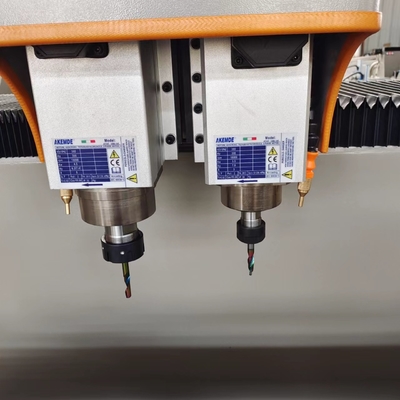

Double Head Spindle: One is for not unusualplace holes, every other is unique for countbore

3200mm Double Head 3+1 Axes Hole Drilling Machine 0

The WSZ2 machining centre with three managed axes and pneumatic rotation of the desk has been designed to perform drilling and milling operations on aluminium or metallic profiles. Equipped as trendy with minimal lubrication, double stop, guide 6 place device mag and spindle with quick-launch device coupling. WSZ2 is the answer that mixes compact running dimensions and excessive machining performance.



Numerous configuration alternatives are available (computerized device change, inflexible tapping, adjustable rotation of the paintings desk to intermediate angles, lubri-cooling), making WSZ2 an answer that may be scaled to many one of a kind needs.

3200mm Double Head 3+1 Axes Hole Drilling Machine 1

                                                    (3200mm/1500mm Model Option)

1. Main Feature
● Suitable for drilling, milling grooves, spherical holes, special-fashioned holes, key holes, countersinks, and Narrow door hinge holes, heaven and earth hinges, Wifa series, Bononi series, etc. Slotting, digging and different processing.
● The gadget adopts CNC manipulate and helps the import of CAD graphics.
● Using electric powered spindle, excessive precision, excessive power, excellent protection and excessive reliability.
● The X-axis, Y-axis, and Z-axis are pushed with the aid of using rack and screw, with solid transmission and excessive precision.
● Graphic programming is simple to operate, excessive in performance, and coffee in hard work intensity.
● The worktable is flipped on 3 aspects and clamped at one time to obtain excessive processing performance on 3 aspects.
● The 3-axis complete servo motor can definitely recognise the excessive performance and balance of the 3-axis linkage.
2.  Samples Holes After Working:
3200mm Double Head 3+1 Axes Hole Drilling Machine 23200mm Double Head 3+1 Axes Hole Drilling Machine 33200mm Double Head 3+1 Axes Hole Drilling Machine 43200mm Double Head 3+1 Axes Hole Drilling Machine 5
3.  Parameter
Power Supply 220V, 380V, 415V, 440V...
Working pressure 0.6-0.8MPA
Total power 14.5KW
Option Scanner
Control System SYNTEC, LNC, Hans PA (Option)
Fixture Option

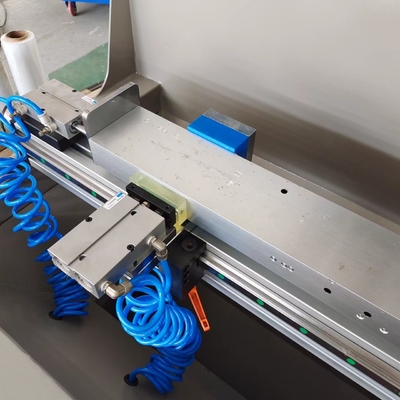

4. Alloy Milling Machine Detailed Photos

3200mm Double Head 3+1 Axes Hole Drilling Machine 6



3200mm Double Head 3+1 Axes Hole Drilling Machine 7



3200mm Double Head 3+1 Axes Hole Drilling Machine 8

4.  Certification

3200mm Double Head 3+1 Axes Hole Drilling Machine 93200mm Double Head 3+1 Axes Hole Drilling Machine 103200mm Double Head 3+1 Axes Hole Drilling Machine 11

5. Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
