Product Details:
|
| Power: | 9.5KW | Air Pressure: | 0.6~0.8MPa |
|---|---|---|---|
| Rotating Speed: | 18000/min | X Axis Journey: | 1500mm |
| Y Axis Journey: | 300mm | Z Axis Journey: | 280mm |
| Overall Dimension: | 2000*1800*2300mm |

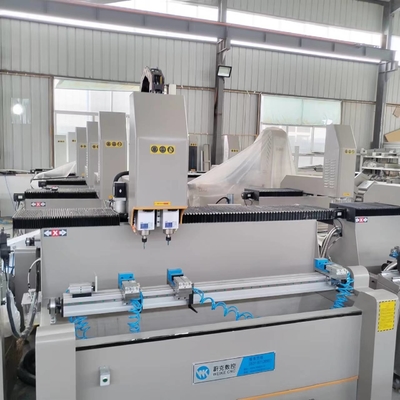

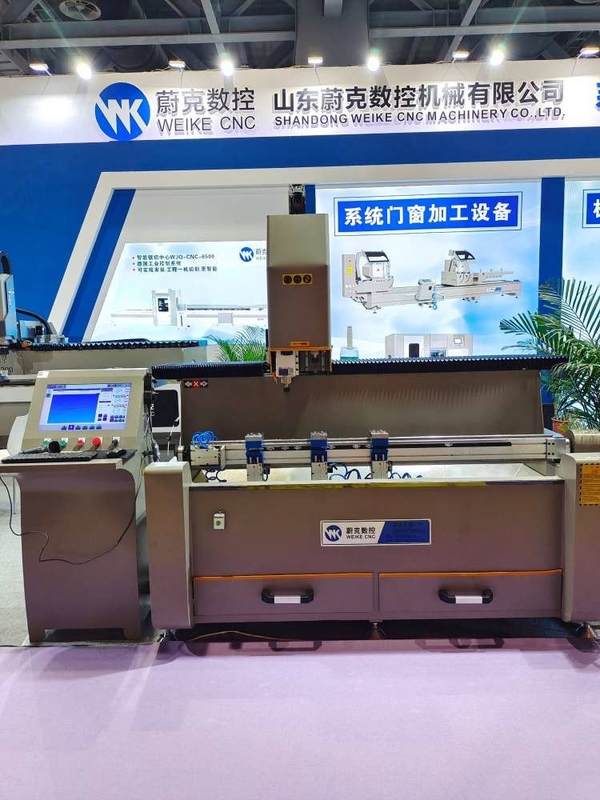

The WSZ2 machining centre with three managed axes and pneumatic rotation of the desk has been designed to perform drilling and milling operations on aluminium or metallic profiles.
Equipped as wellknown with minimal lubrication, double stop, guide 6 area device mag and spindle with quick-launch device coupling.
WSZ2 is the answer that mixes compact operating dimensions and excessive machining performance.
Numerous configuration alternatives are available (automated device change, inflexible tapping, adjustable rotation of the paintings desk to intermediate angles, lubri-cooling), making WSZ2 an answer that may be scaled to many unique needs.
(Still have 3200mm type, you can choose)
● Suitable for drilling, milling grooves, spherical holes, special-formed holes, key holes, countersinks, and Narrow door hinge holes, heaven and earth hinges, Wifa series, Bononi series, etc. Slotting, digging and different processing.
● The machine adopts CNC manage and helps the import of CAD graphics.
| Power Supply | 220V, 380V, 415V, 440V... |
| Working pressure | 0.6-0.8MPA |
| Total power | 14.5KW |
| Option | Scanner |
| Control System | SYNTEC, LNC, Hans PA (Option) |
| Fixture | Option |
