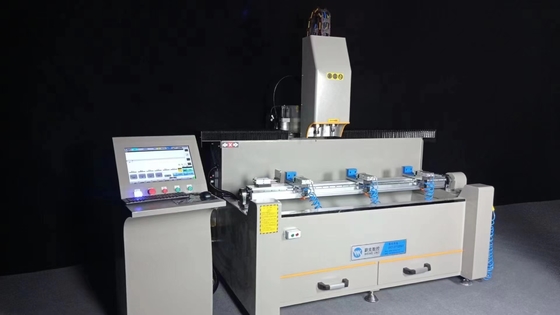

Double Head CNC Drilling Machines For Aluminium Profile with 1500mm working length

Large Image : Double Head CNC Drilling Machines For Aluminium Profile with 1500mm working length

Product Details:

Place of Origin:	China
Brand Name:	WEIKE CNC
Certification:	CE ISO
Model Number:	WSZ2-CNC-1500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	14500 USD
Packaging Details:	Plywood Box
Delivery Time:	3-7 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50 Sets / Month

Contact Now

Double Head CNC Drilling Machines For Aluminium Profile with 1500mm working length

Description

Power:	9.5KW	Air Pressure:	0.6~0.8MPa
Rotating Speed:	18000/min	X Axis Journey:	1500mm
Y Axis Journey:	300mm	Z Axis Journey:	280mm
Overall Dimension:	200018002300mm

Double Head Aluminum Profile 3+1 Axes CNC Drilling Milling Machine

three managed axis machining centre with pneumatic rotation of the paintings desk to 0°/90°/180°

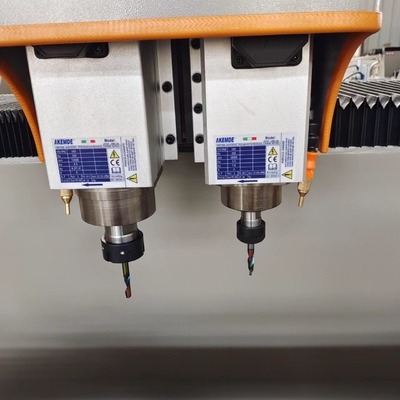

Two Spindle: One is for drilling Milling Common holes, any other is unique for counterbore Holes

Working Area: 1500mm/ 3200mm Option (According your needed, select appropriate operating area)

Double Head CNC Drilling Machines For Aluminium Profile with 1500mm working length 0

The WSZ2 machining centre with three managed axes and pneumatic rotation of the desk has been designed to perform drilling and milling operations on aluminium or metal profiles. Equipped as general with minimal lubrication, double stop, guide 6 vicinity device mag and spindle with quick-launch device coupling. WSZ2 is the answer that mixes compact running dimensions and excessive machining performance. Numerous configuration alternatives are available (automated device change, inflexible tapping, adjustable rotation of the paintings desk to intermediate angles, lubri-cooling), making WSZ2 an answer that may be scaled to many special needs.

(Still have 3200mm type, you can choose)

1. Main Feature

● Suitable for drilling, milling grooves, spherical holes, special-fashioned holes, key holes, countersinks, and Narrow door hinge holes, heaven and earth hinges, Wifa series, Bononi series, etc. Slotting, digging and different processing.

● The gadget adopts CNC manage and helps the import of CAD graphics.

● Using electric powered spindle, excessive precision, excessive power, proper protection and excessive reliability.

● The X-axis, Y-axis, and Z-axis are pushed through rack and screw, with solid transmission and excessive precision.

● Graphic programming is straightforward to operate, excessive in performance, and coffee in exertions intensity.

● The worktable is flipped on 3 facets and clamped at one time to gain excessive processing performance on 3 facets.

● The 3-axis complete servo motor can actually comprehend the excessive performance and balance of the 3-axis linkage.

2. Samples Holes After Working:

3. Parameter

Power Supply	220V, 380V, 415V, 440V...
Working pressure	0.6-0.8MPA
Total power	14.5KW
Option	Scanner
Control System	SYNTEC, LNC, Hans PA (Option)
Fixture	Option

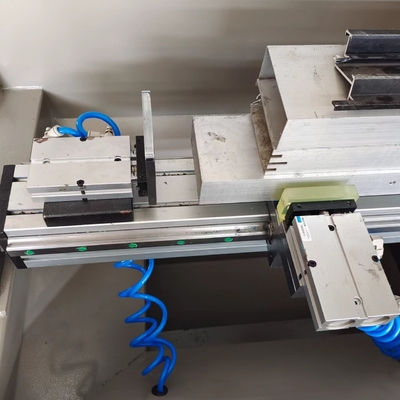

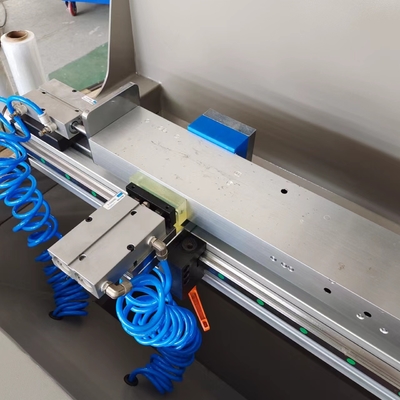

4. Alloy Milling Machine Detailed Photos

Double Head CNC Drilling Machines For Aluminium Profile with 1500mm working length 6

Double Head CNC Drilling Machines For Aluminium Profile with 1500mm working length 7

Double Head CNC Drilling Machines For Aluminium Profile with 1500mm working length 8

4. Certification

5. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
