Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill

Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill
Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill

Large Image :  Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WSZ2-CNC-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 14500 USD
Packaging Details: Plywood Box
Delivery Time: 3-7 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50 Sets / Month
Contact Now

Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill

Description
Power: 9.5KW Air Pressure: 0.6~0.8MPa
Rotating Speed: 18000/min X Axis Journey: 1500mm
Y Axis Journey: 300mm Z Axis Journey: 280mm
Overall Dimension: 2000*1800*2300mm
Highlight:

3.4KW CNC Drilling Aluminum Machines

,

CNC Drilling Aluminum Machines 1500mm

,

1500mm Aluminum 4 Axis Cnc Mill

  Double Head Aluminum Profile 3+1 Axes CNC Drilling Milling Machine

3 controlled axis machining centre with pneumatic rotation of the work table to 0°/90°/180°

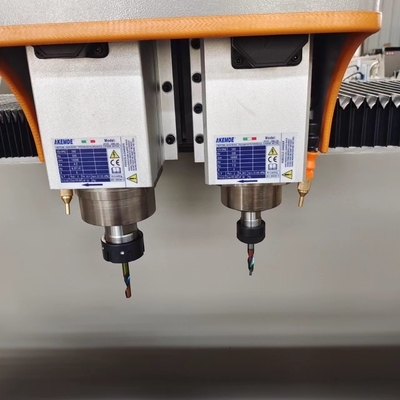

Two Spindle: One is for drilling Milling Common holes, another is special for counterbore Holes

Working Area: 1500mm/ 3200mm Option (According your needed, choose suitable working area)

Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 0

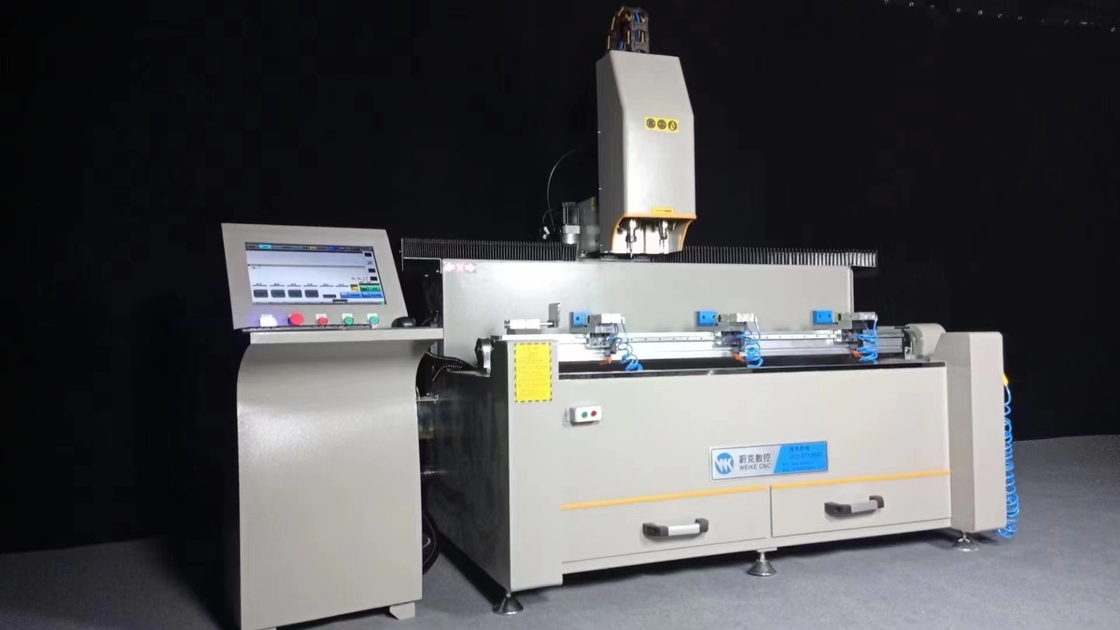

The WSZ2  machining centre with 3 controlled axes and pneumatic rotation of the table has been designed to carry out drilling and milling operations on aluminium or steel profiles. Equipped as standard with minimum lubrication, double stop, manual 6 location tool magazine and spindle with quick-release tool coupling. WSZ2 is the solution that combines compact working dimensions and high machining performance.

Numerous configuration options are available (automatic tool change, rigid tapping, adjustable rotation of the work table to intermediate angles, lubri-cooling), making WSZ2 a solution that can be scaled to many different needs.

Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 1

                                          (Still have 3200mm type, you can choose)

1. Main Feature
● Suitable for drilling, milling grooves, round holes, special-shaped holes, key holes, countersinks, and Narrow door hinge holes, heaven and earth hinges, Wifa series, Bononi series, etc. Slotting, digging and other processing.
● The system adopts CNC control and supports the import of CAD graphics.
● Using electric spindle, high precision, high power, good safety and high reliability.
● The X-axis, Y-axis, and Z-axis are driven by rack and screw, with stable transmission and high precision.
● Graphic programming is easy to operate, high in efficiency, and low in labor intensity.
● The worktable is flipped on three sides and clamped at one time to achieve high processing efficiency on three sides.
● The three-axis full servo motor can truly realize the high efficiency and stability of the three-axis linkage.
2.  Samples Holes After Working:
Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 2Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 3Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 4Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 5
3.  Parameter
Power Supply 220V, 380V, 415V, 440V...
Working pressure 0.6-0.8MPA
Total power 14.5KW
Option Scanner
Control System SYNTEC, LNC, Hans PA (Option)
Fixture Option

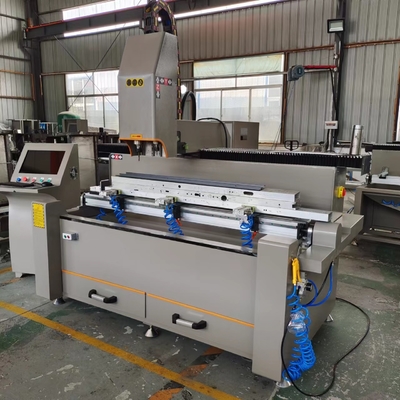

4. Alloy Milling Machine Detailed Photos

Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 6

Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 7

Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 8



4.  Certification

Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 9Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 10Double Head CNC Drilling Aluminum Machines 1500mm 4 Axis Cnc Mill 11

5. Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
