Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

Large Image : Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

Product Details:

Place of Origin:	China
Brand Name:	WEIKE CNC
Certification:	CE ISO
Model Number:	WJM-CNC-500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	9200 USD
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	30 Sets / Month

Contact Now

Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine

Description

Power Supply:	5.15KW	Air Pressure:	0.8MPa
Rotating Speed:	2800r/min	Saw Blade:	500mm
Cutting Angle:	45 And 90 Degree	Overall Dimension:	580015001700mm
Highlight:	90 degree Automatic Miter Saw , Automatic Miter Saw 500mm , 500mm Aluminum Double Head Cutting Machine

500mm CNC Double Head Cutting Saw

Front blade sawing machine

1. Main Feature

● Used for cutting aluminum alloy doors and windows, curtain wall profiles.

● It adopts numerical control device to accurately display the length of the cut profile.

● The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.

● The feed system adopts imported linear guide pair, which has high precision an long life.

2. Technical Parameter
● Overall dimension: 5800 x 1500 x 1700mm

● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)

● Power supply: 380V/50Hz (Can make according your voltage)

● Motor rotary speed: 2800r/min

● Air pressure: 0.6~0.8MPa

● Saw blade specification: φ500 / φ600

● Cutting length: 290~6000mm

● Weight about: 1650kg

Option:

1	Saw Blade: 500/550/600mm
2	Printer
3	Connect with windows design software
4	Main Spindle and Motor Option
5	Cutting length Option
6	Have different machine frame

3. Update Saw During Production:

3. Machine Details And Advantage

Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine 2

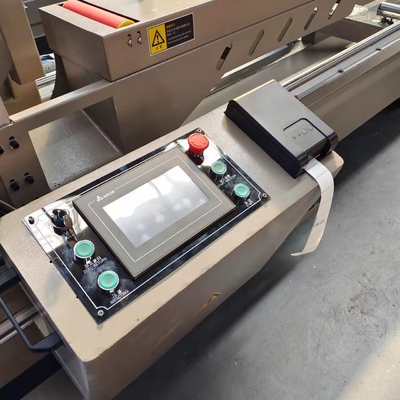

CNC Control, cutting length, cutting angle control are all automatic.

Have printing function, so can print clients info and profile info.

Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine 1

1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean

Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine 4

Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high

Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine 5

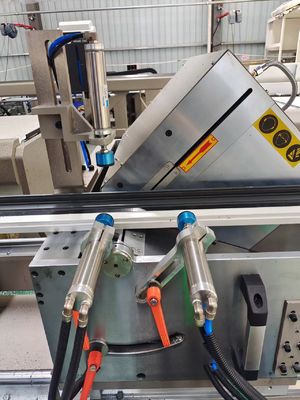

Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed

Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine 6
Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
we upgrade to point to face, so enlarge use time.

Automatic Miter Saw 500mm Aluminum Double Head Cutting Machine 7

Right head and left head have own lubrication, so oil can be more average
