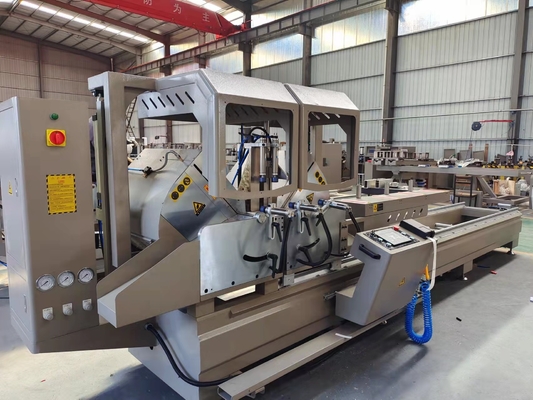

550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory
550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

Large Image :  550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WJM-CNC-550
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10700 USD
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 30 Sets / Month
Contact Now

550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

Description
Power Supply: 5.5KW Air Pressure: 0.8MPa
Rotating Speed: 2800r/min Saw Blade: 500mm
Cutting Angle: 45 And 90 Degree Overall Dimension: 5800*1500*1700mm
Overall Sales: Viet European South Africa

                                                       600mm CNC Double Head Cutting Saw

                                                 Front blade sawing machine

550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 0
1. Main Feature
● Used for cutting metal alloy doors and windows, curtain wall profiles.
● The high-precision spindle makes the saw blade rotate stably.
● Automatically liftable protective hood for safe and comfortable work.
● Gas-liquid damping cylinder ensures smooth forward speed regulation and stable movement.
● It adopts numerical management device to accurately show the length of the cut profile.
● The feeding system uses an imported pair of linear guides, with high precision and long service life.


2. Technical Parameter

● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
● Motor rotary speed: 2800r/min
● Saw blade specification: φ500 / φ600
● Power supply: 380V/50Hz (Can make according your voltage)
● Air pressure: 0.6~0.8MPa
● Overall dimension: 5800 x 1500 x 1700mm
● Weight about: 1650kg
● Cutting angle: 90°45°
● Cutting length: 290~6000mm


Option:


1Saw Blade: 500/550/600mm
2Printer
3Connect with windows design software
4Main Spindle and Motor Option
5Cutting length Option
6Have different machine frame
3. Update Saw During Production:
550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 1



3. Machine Details And Advantage

 550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 2

CNC Control, cutting length, cutting angle control are all automatic.

Have printing function, so can print clients info and profile info.





550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 1

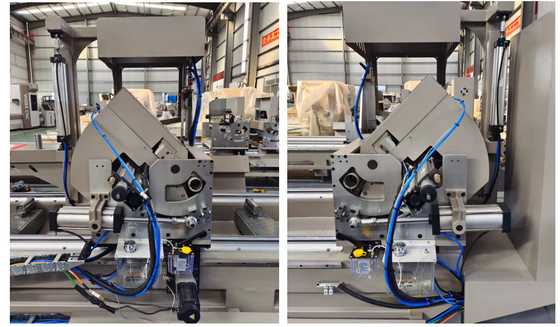

                    1. Use planer to ensure the flatness of the mounting guild rails
                    2. Guild is 40mm diameter, two guild distance is 700mm, More stable
                    3. The machine inside design to slope, more easy for chips clean



 550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 4

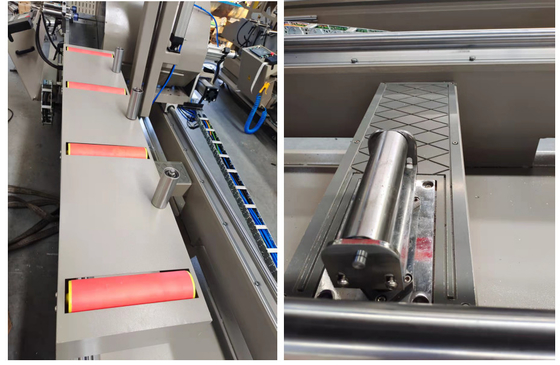

Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high




550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 5

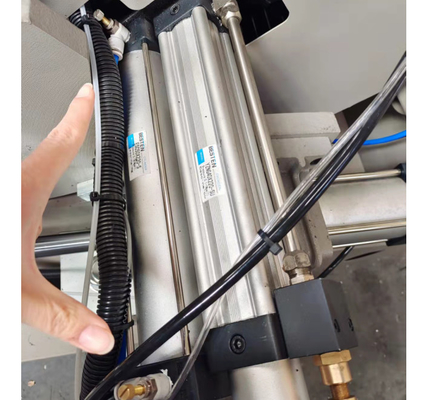

Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed



550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 6
Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
we upgrade to point to face, so enlarge use time.



Contact Us For More Information:



Weike CNC

Email: info@jnfasca.com

What's app/Wechat/Mobile: +86 15554162658
