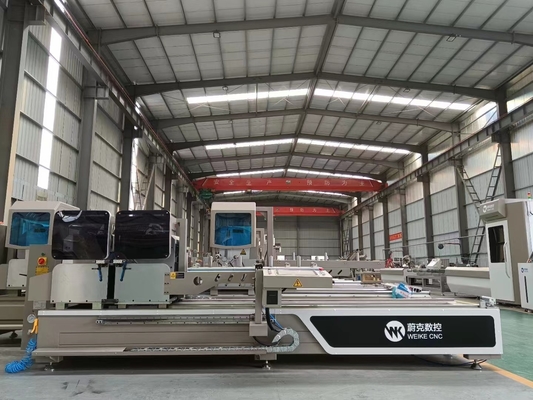

600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory
600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

Large Image :  600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WJM-CNC-600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 12500 USD
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 30 Sets / Month
Contact Now

600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

Description
Power Supply: 6KW Air Pressure: 0.6~0.8MPa
Rotating Speed: 3000r/min Saw Blade: 600mm
Cutting Angle: 45 And 90 Degree Overall Size: 5800*1500*1700mm

                                                       600mm CNC Double Head Cutting Saw

                                                 Front blade sawing machine

600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 0
1. Main Feature
● It uses a numerical control unit to accurately display the length of the cutting profile.
● High-precision spindle ensures stable rotation of the saw blade.
● Used for cutting aluminum alloy doors and windows and facade profiles.
● Gas-liquid damping cylinder ensures smooth forward speed regulation and stable movement.
● The feeding system uses an imported pair of linear guides with high precision and long service life.
● Automatically liftable protective hood for safe and comfortable work.


2. Technical Parameter


● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)          ● Cutting angle: 90°45°

● Power supply: 380V/50Hz (Can make according your voltage)               ● Cutting length: 290~6000mm

● Air pressure: 0.6~0.8MPa                                                                             ● Overall dimension: 5800 x 1500 x 1700mm

● Motor rotary speed: 2800r/min                                                                    ● Weight about: 1650k

● Saw blade specification: φ500 / φ600




Option:


1 Saw Blade: 500/550/600mm
2 Printer
3 Connect with windows design software
4 Main Spindle and Motor Option
5 Cutting length Option
6 Have different machine frame
3. Update Saw During Production:
600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 1



3. Machine Details And Advantage

 600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 2

CNC Control, cutting length, cutting angle control are all automatic.

Have printing function, so can print clients info and profile info.





600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 1

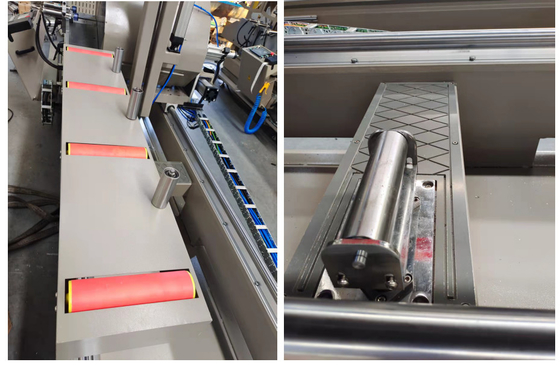

1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean


 600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 4

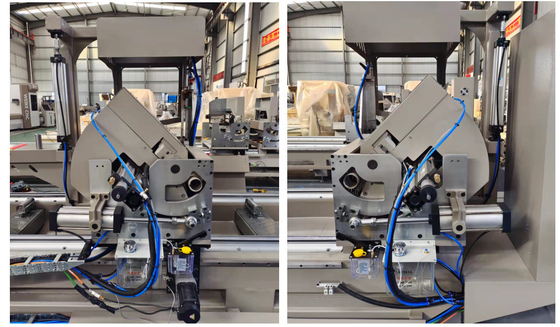

Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high



600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 5

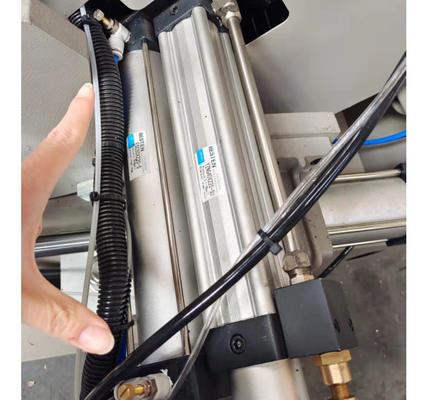

Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed



600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 6

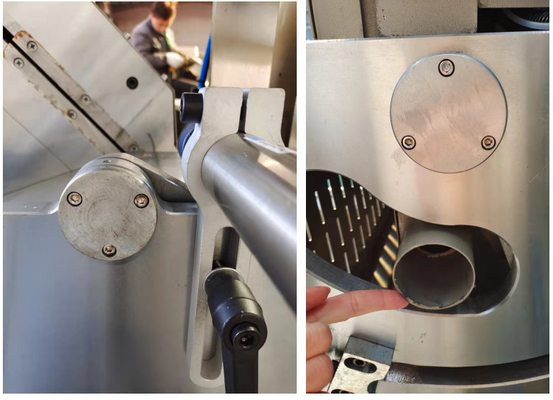

Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
we upgrade to point to face, so enlarge use time.



600mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory 7



Right head and left head have own lubrication, so oil can be more average
