Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree

Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree
Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree

Large Image :  Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WJM-CNC-550
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 14500 USD
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 30 Sets / Month
Contact Now

Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree

Description
Main Moter Power: 2.2KW Color: Grey With Black
Rotatry Speed: 3000r/min Saw Blade Diameter: 550mm
Cutting Angle: 45 Degree And 90 Degree Weight: 1400KG
Machine Package: Plywood Service: Online Support

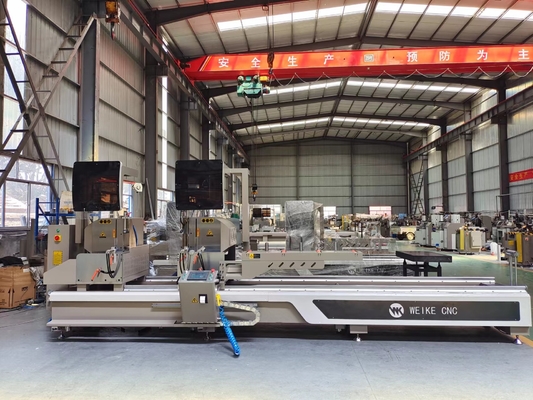

                                                       550mm CNC Double Head Cutting Saw

                                                 Front blade sawing machine

Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree 0
1. Main Feature

● Used for cutting metallic element alloy doors and windows, curtain wall profiles.  It adopts numerical management device to accurately show the length of the cut profile.  The high-precision spindle makes the saw blade rotate stably.  The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement. the automated lifting protective covering makes work safe and convenient. The feed system adopts foreign linear guide pair, that has high preciseness and long life.



2. Technical Parameter


● Air pressure: 0.6~0.8MPa

● Motor rotary speed: 2800r/min



● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)

● Power supply: 380V/50Hz (Can make according your voltage)



● Cutting length: 290~6000mm

● Overall dimension: 5800 x 1500 x 1700mm



● Weight about: 1650kg



● Saw blade specification: φ500 / φ600



● Cutting angle: 90°45°



Option:


1 Saw Blade: 500/550/600mm
2 Printer
3 Connect with windows design software
4 Main Spindle and Motor Option
5 Cutting length Option
6 Have different machine frame
3. Update Saw During Production:
Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree 1

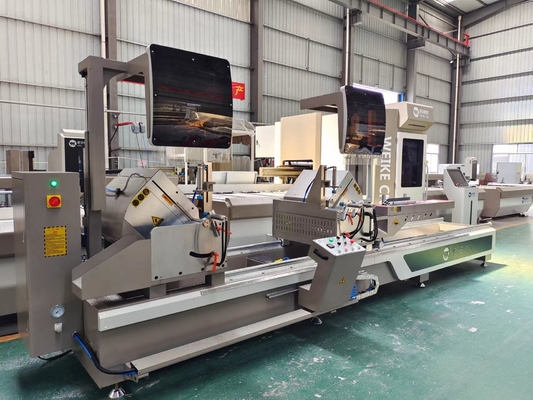

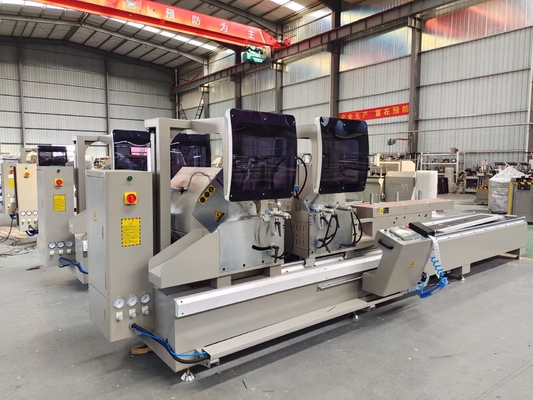

3. Machine Details And Advantage

 Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree 2

CNC Control, cutting length, cutting angle control are all automatic.

Have printing function, so can print clients info and profile info.





Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree 1



1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean


 Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree 4


Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high



Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree 5


Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed



Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree 6
Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
we upgrade to point to face, so enlarge use time.



Aluminum Profile Automatic Sawing Machine Saw Blade is 550mm diameter Cutting 45 and 90 degree 7



Right head and left head have own lubrication, so oil can be more average



Contact Us For More Information:

Email: info@jnfasca.com

What's app/Wechat/Mobile: +86 15554162658






Tag:

500mm Double Miter Saw For Aluminum,

Double Head Mitre Saw 600mm,

Double Head Mitre Saw 550mm
