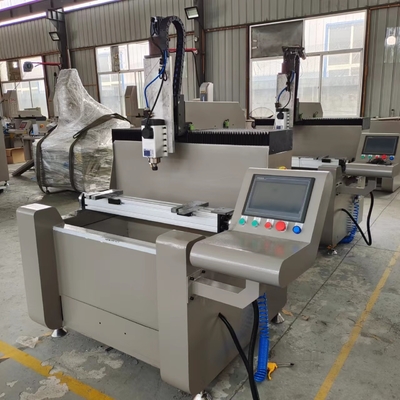

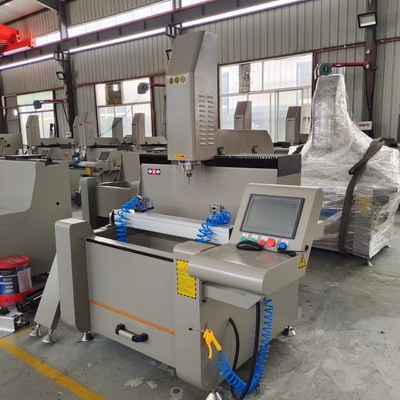

CNC Drilling Milling Machine 18000/Min Automatic Aluminium Door Making Machine

           Aluminum Profile 3 +1 Axes CNC Milling Machine

 3 controlled axis machining centre with pneumatic rotation of the work table to 0°/90°/180°



The WSZ Series machining centre with three managed axes and pneumatic rotation of the desk has been designed to perform drilling and milling operations on aluminium or metallic profiles. Equipped as fashionable with minimal lubrication, double stop, guide 6 region device mag and spindle with quick-launch device coupling. WSZ sesies is the answer that mixes compact operating dimensions and excessive machining performance.

Numerous configuration options are available (automatic tool change, rigid tapping, adjustable rotation of the work table to intermediate angles, lubri-cooling), making aluminum milling machine a solution that can be scaled to many different needs.

1.  This CNC Drilling Milling Machine Main Feature

● It is appropriate for the processing of spherical holes, slot holes, key holes, special-fashioned holes of industrialaluminum alloy profiles, doorways and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, aircraft engraving and different processes.

● The fundamental shaft adopts an air-cooled electric powered fundamental shaft with a strength of 3.five KW and a rotation velocity of 6000 to 18000 revolutions/min. It has excessive precision, top protection and excessive reliability.

● The manage device is geared up with expert portraits library and profile library, which is simple to perform and efficient.

● The worktable is became 180°, -90°~0°~+90°, the profile may be processed on 3 aspects at one time. When processing deep via holes (fashioned holes), deep hollow processing may be found out through turning the worktable to enhance performance and top quality. .

● The automated mercury oil deliver device is adopted, and the cutter adopts a device-managed spray cooling device.

● The fundamental components of the device device are manufactured from metal structure, all of that have passed through vibration ageing and pressure remedy remedy to make certain strong operation

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped
holes for windows and doors, curtain wall alloy profiles
Milling all type holes on aluminium profile

3. Parameter

●X axis Journey: 800mm
●Y axis Journey: 300mm
●Z Axis Journey: 280mm
● X axis Speed: 60M/min
● Y/Z axis Speed: 40M/min



4. Machine Details

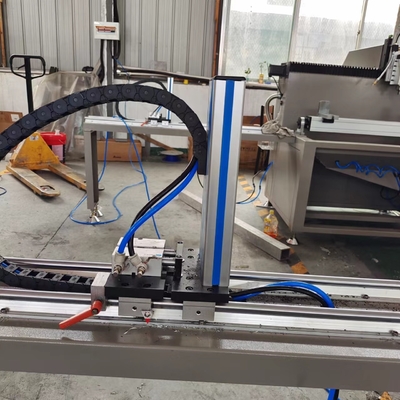

4.1 Main Spindle: 3.5KW electric spindle and Fixture (Clamps)


4.2 Control Panel

4. Provide Service:

1. Provide loose education while come to manufacturing facility study 2. If want engineer visit oversea education: Client manage to pay for transportation and accommodation, Engineer profits is 100USD/Day Because of Covid-19, we also can provide:

1. Before delivery: Machine function guide, application software program person guide in addition to Chinese and English videos

2. Before delivery: Face to stand video education on-line among your operator and our engineer (Can communicate English)

3. After delivery: Will video guild you the way to set up and regulate system. Also we are able to on-line manage your system to expose you the way to work. Contact Us For More Information:
