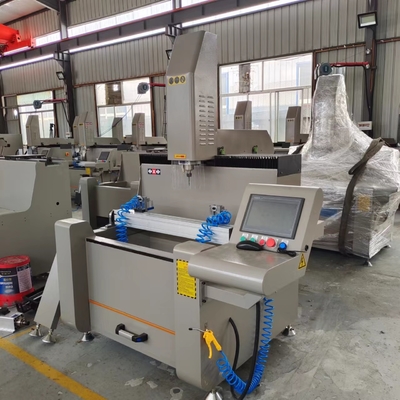

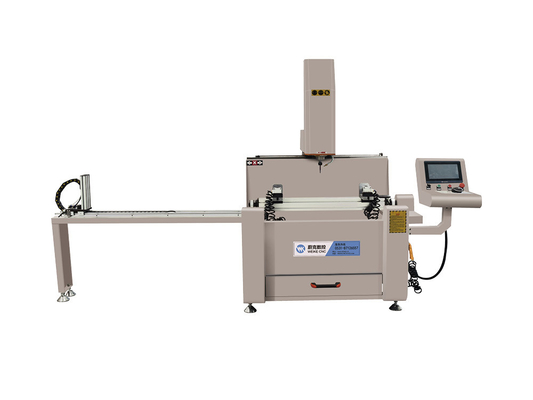

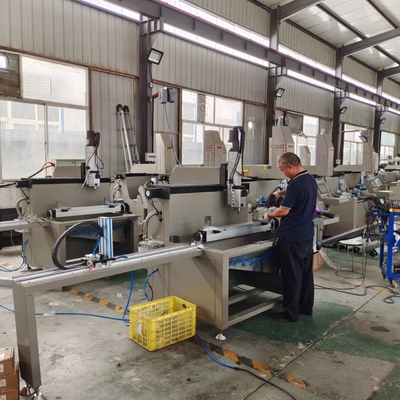

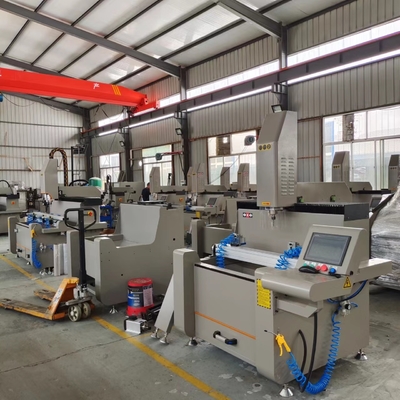

500mm 3 Axis CNC Drilling Machine for aluminum profile special for window and door machines

           Aluminum Profile 3 +1 Axes CNC Milling Machine



The WSZ Series machining centre with 3 controlled axes and pneumatic rotation of the table has been designed to carry out drilling and milling operations on aluminium or steel profiles. Equipped as standard with minimum lubrication, double stop, manual 6 location tool magazine and spindle with quick-release tool coupling. WSZ sesies is the solution that combines compact working dimensions and high machining performance.

Numerous configuration options are available (automatic tool change, rigid tapping, adjustable rotation of the work table to intermediate angles, lubri-cooling), making aluminum milling machine a solution that can be scaled to many different needs.

1.  This CNC Drilling Milling Machine Main Feature

● It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrialaluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.

● The main shaft adopts an air-cooled electric main shaft with a power of 3.5 KW and a rotation speed of 6000 to 18000 revolutions/min. It has high precision, good safety and high reliability.

● The control system is equipped with professional graphics library and profile library, which is easy to operate and efficient.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The automatic mercury oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.

● The main parts of the machine tool are made of steel structure, all of which have undergone vibration aging and stress relief treatment to ensure stable operation

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped
holes for windows and doors, curtain wall alloy profiles
Milling all type holes on aluminium profile

3. Parameter

●X axis Journey: 500mm
●Y axis Journey: 300mm
●Z Axis Journey: 280mm
● X axis Speed: 60M/min
● Y/Z axis Speed: 40M/min



4. Machine Details

4.1 Main Spindle: 3.5KW electric spindle and Fixture (Clamps)


4.2 Control Panel

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
