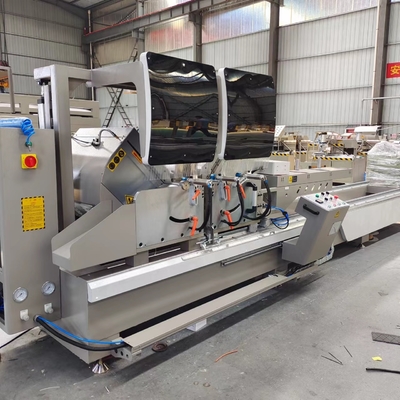

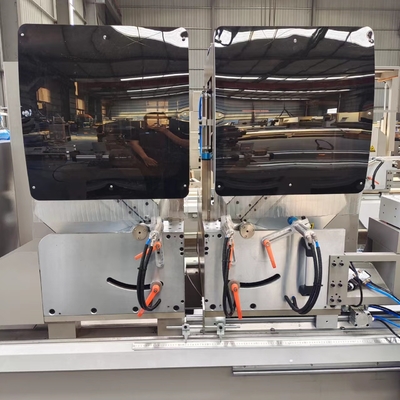

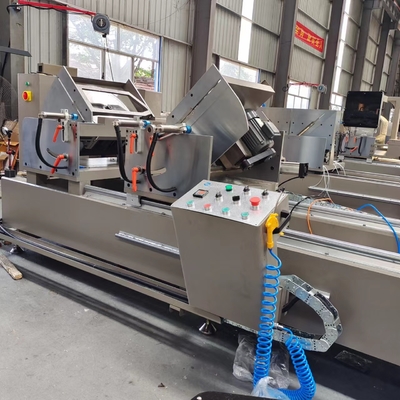

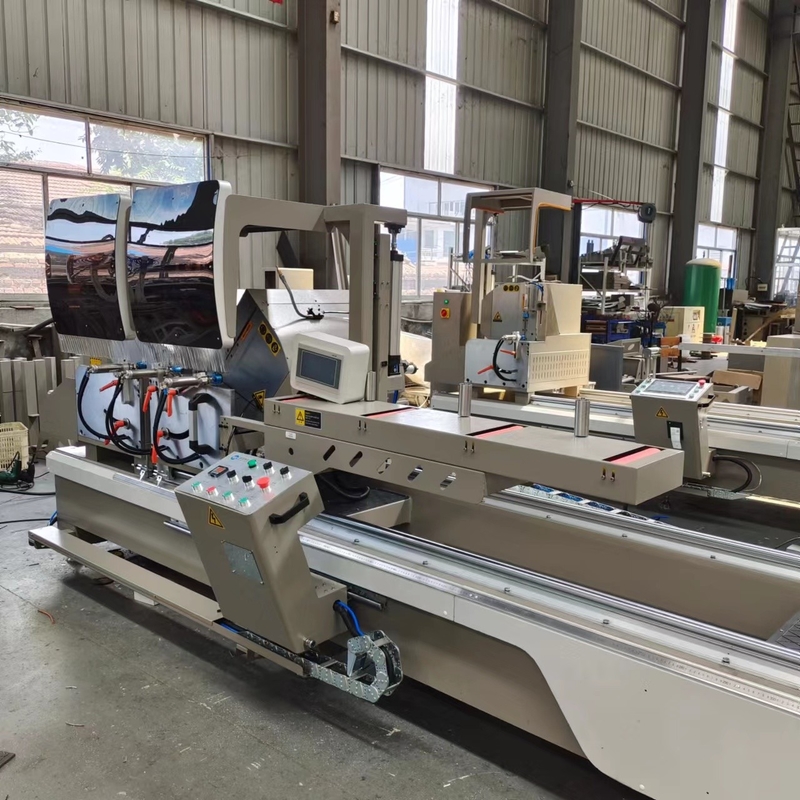

Digital Display Double Head Aluminum Sawing Machine With 500mm Diameter Saw Blade

                            Digital Display Precision Double Head Cutting Saw

                                   Front blade sawing machine

               Saw Blade: 500mm 550mm 600mm three option

1. Feature

1.1 Used for cutting aluminum and PVC, suitable for different area, such as window door, curtain wall profiles.

1.2 Saw blade rotates smoothly due to high accurate main spindle

1.3 The feeding system adopts the imported linear guide pair,with high accuracy and stability

1.4 Two saw heads are adjustable and cut the profiles in 45°,90°freely.

1.5 Auto-opening shield maked the operation safety.

1.6 Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

2. Technical Parameter

2.1 Input power: 4.4kw

2.2 Power supply: 380V/50Hz (Can make according your voltage)

2.3 Air pressure: 0.6~0.8MPa

2.4 Motor rotary speed: 2800r/min

2.5 Saw blade specification: φ500

2.6 Cutting angle: 90°45°

2.7 Cutting length: 360~4200mm

2.8 Cutting width*height

150*180mm (45 degree)

150*240mm (90 degree)

2.9 Overall dimension: 5800 x 1500 x 1700mm

2.10 Weight about: 1650kg

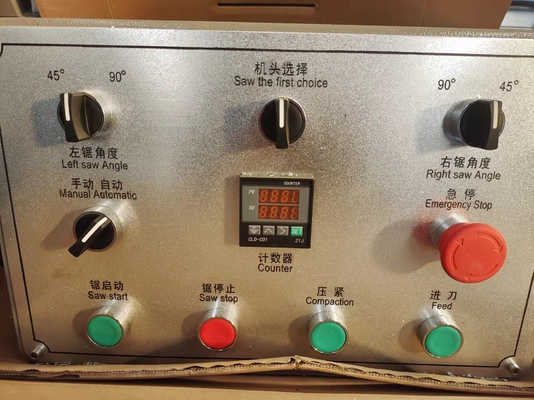

3. Machine Details And Advantage
