Digital Display Double Head Mitre Saw With 600mm diameter saw blade cutting 45 and 90 degree

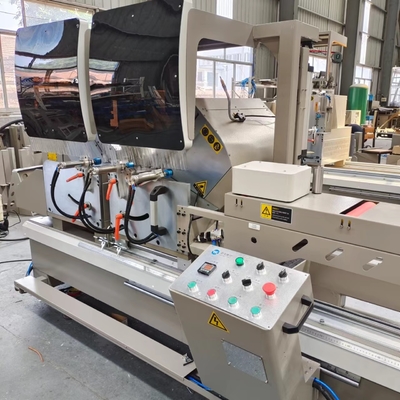

                                                  Double Head Mitre Saw

                                   Front blade sawing machine


               Saw Blade: 500mm 550mm 600mm three option

1. Feature
1.1 Used for slicing aluminum and PVC, appropriate for unique area, along with window door, curtain wall profiles.
1.2 Saw blade rotates easily because of excessive correct primary spindle
1.3 The feeding machine adopts the imported linear manual pair,with excessive accuracy and stability

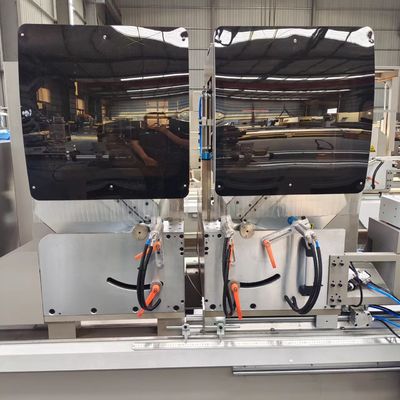

1.4Two noticed heads are adjustable and reduce the profiles in 45°,90°freely.
1.5 Auto-beginning defend maked the operation safety.
1.6 Uniform velocity feeding and clean movement because of airdraulic damping cylinder.

2. Technical Parameter

2.1 Input power: 4.4kw                                                  2.2 Power supply: 380V/50Hz (Can make according your voltage)

2.3 Air pressure: 0.6~0.8MPa                                       2.4 Motor rotary speed: 2800r/min

2.5 Saw blade specification: φ500                                2.6 Cutting angle: 90°45°

2.7 Cutting length: 360~4200mm                                  2.8 Cutting width*height

                                                                                            150*180mm (45 degree)

                                                                                            150*240mm (90 degree)

2.9 Overall dimension: 5800 x 1500 x 1700mm           2.10 Weight about: 1650kg


3. Machine Details And Advantage



4: Why call this machine double head cutting saw?
Machine have two heads, can cutting together on aluminum profile both sides, also can choose only cutting with one head

What type of material can be cutted using this machine?
This saw can cutting aluminium material, ally profile, PVC, uPVC material, and some soft material like wood etc.

How to choose different diameter saw blade?
According to your profile section, know max profile height and weight to choose suitable saw balde

How to operate this cutting saw?
We provide you English manual as well as video manual, also give you online training.
