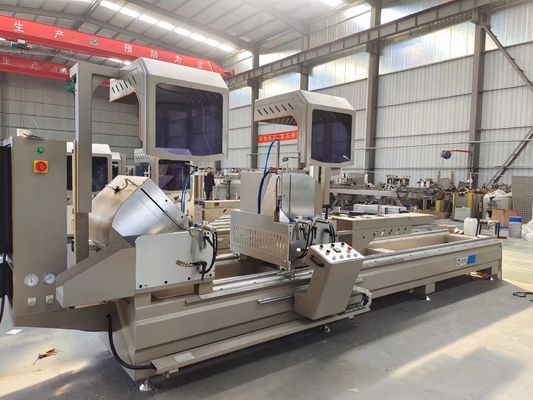

Digital Display Double Head Front Sawing Machine With 600mm diameter saw blade cutting 45 and 90 degree

                                                 Double Head Mitre Saw

Front blade sawing machine

Saw Blade: 500mm 550mm 600mm 3 option

1. Feature

1.1 Used for cutting atomic number 13 and PVC, appropriate for various area, corresponding to window door, curtain wall profiles.

1.2 Saw blade rotates swimmingly thanks to high correct main spindle

1.3 The feeding system adopts the foreign linear guide pair,with high accuracy and stability

1.4 2 saw heads are adjustable and cut the profiles in 45°,90°freely.

1.5 Auto-opening protect maked the operation safety.

1.6 Uniform speed feeding and sleek motion due to airdraulic damping cylinder.

2. Technical Parameter

 Saw blade specification: φ500

 Cutting angle: 90°45°

 Cutting length: 360~4200mm

 Input power: 4.4kw

 Power supply: 380V/50Hz (Can make according your voltage)

 Air pressure: 0.6~0.8MPa

 Motor rotary speed: 2800r/min

 Cutting width*height:150*180mm (45 degree);150*240mm (90 degree)

 Overall dimension: 5800 x 1500 x 1700mm

 Weight about: 1650kg


3. Machine Details And Advantage

4: Why call this machine double head cutting saw?

Machine have two heads, can cutting together on aluminum profile both sides, also can choose only cutting with one head

What type of material can be cutted using this machine?

This saw can cutting aluminium material, ally profile, PVC, uPVC material, and some soft material like wood etc.

How to choose different diameter saw blade?

According to your profile section, know max profile height and weight to choose suitable saw balde

How to operate this cutting saw?

We provide you English manual as well as video manual, also give you online training.
