Product Details:
|
| Type: | Cutting Aluminum In 90 Degree | Usage: | Industry Aluminum Material |
|---|---|---|---|
| Warranty: | 3 Years | Condition: | New |
| Highlight: | 750kg CNC Corner Aluminium Cutting Saw,2800r/Min cnc Corner Aluminium Cutting Saw,corner Automatic Saw Cutting Machine 2800r/Min |
||
CNC Cutting Saw For Cutting Aluminum material
Specially used for 90-degree cutting of industrial aluminum profiles, multiple profiles can be placed at one time, automatic feeding, and high efficiency.
1. Feature:
1.1 The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw.Stable operation,high precision.
1.2 With the function of automatic counting.
1.3 With the device of spraying,which could improve the processing precision and prolong the service life of saw blade.
| Product Parameter | |
| Motor power | 3 kw |
| Power supply | 380V/50Hz (Can make according your voltage ) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw blade specification | Φ500 |
| Processing width*height | 300mm*100mm |
| Overall dimension | 2200*1400*1550mm |
| Weight about | 750kg |

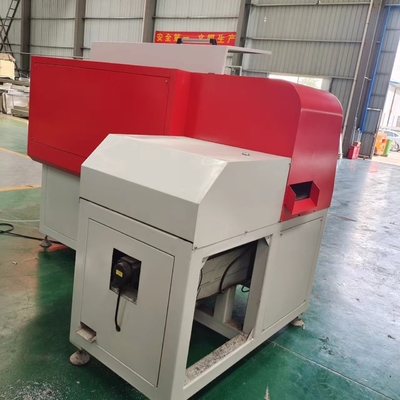

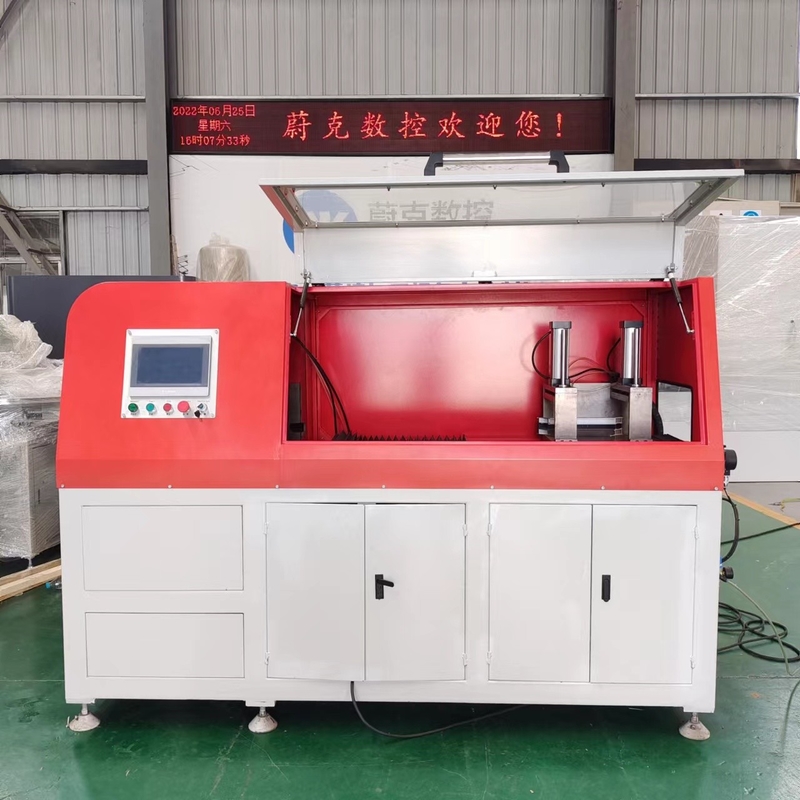

Machine Details:
Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
