Product Details:
|
| Cutting Angle: | 90°、45° | Cutting Length: | 290~6000mm |
|---|---|---|---|
| Material: | Aluminium,UPVC ,PVC | Color: | Standard Or Customized |
| Logo: | Standard Or Customized | Dimensions: | 5800*1500*1700 |

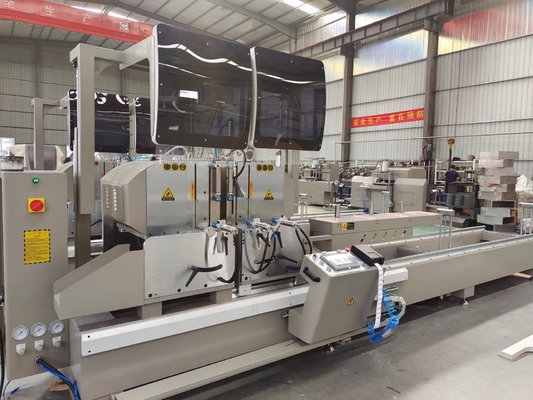

WJM-CNC-600*4200 CNC Double Head Saw is used for cutting aluminium, UPVC and light alloy profiles, ideal for mass production and special applications as they guarantee great reliability. The present Series, provided with highrigidity, are equipped with two independent cutting heads, and the right cutting head is automatically moved by a CNC DC motor. The machine can be provided with an industrial label printer to enable profile identification and association with relative job.
1. Feature

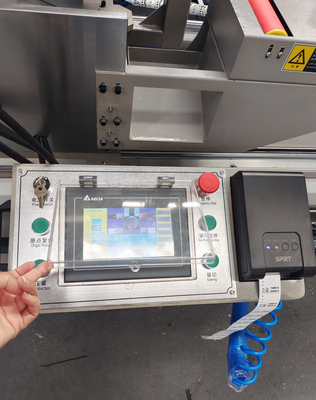

1. The CNC fixed-length device is used to accurately display the length of the cutting profile.
2. The high-precision spindle makes the saw blade rotate stably.
3. The gas-liquid damping cylinder realizes uniform feed speed regulation and stable operation.
4. The automatic lifting and lowering of the protective cover makes the work safe and convenient.
5. The feeding system adopts imported linear guide rail pair, which has high precision and long service life.
WJM-CNC-600*4200
600mm Saw Blade CNC Double Head Saw
| Product Parameter | ||
| Input power | 4.4kw+0.75KW (550,600 saw blade use 6KW+0.75KW) | |
| Power supply | 380V/50Hz (Can make according your voltage) | |
| Air pressure | 0.6~0.8MPa | |
| Motor rotary speed | 2800r/min | |
| Saw blade specification | φ500,Φ550,φ600 | |
| Cutting angle | 90°,45° | |
| Cutting length | 290~6000mm | |
| Cutting width*height |
φ500
|
150*180mm (45 degree) |
| 150*240mm (90 degree) | ||
|
Φ550 |
175*205mm (45 degree) | |
| 175*265mm (90 degree) | ||
2.Other products

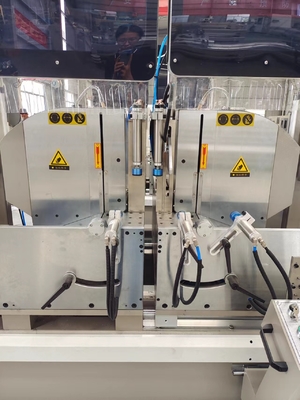

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust the angle?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
WEIKE provide machine
More important is provide
Solutions
